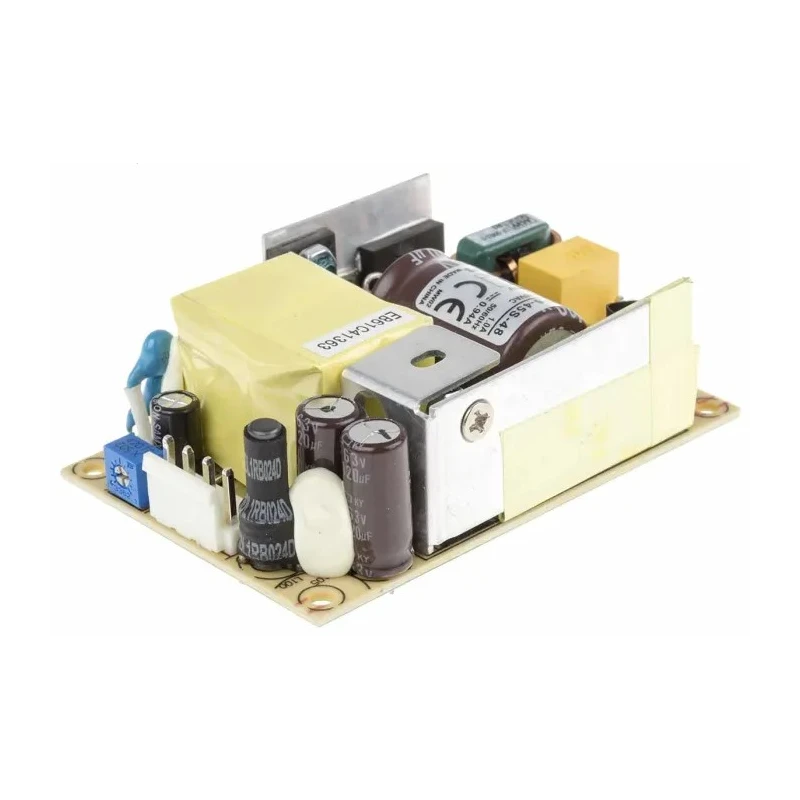

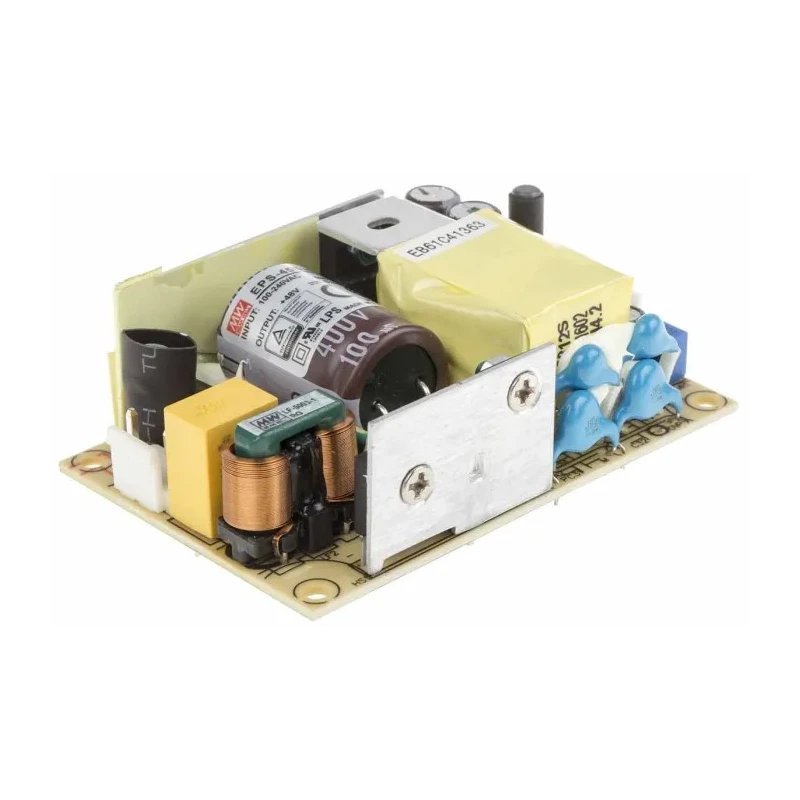

MEAN WELL EPS-45S-48 Switching Power Supply 48V DC, 48W, 90-264V AC Input, Chassis Mount EPS-45S-48
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 48W |
| Efficiency | 90% |
| Length | 101.6mm |
| Model | EPS-45S-48 |
| Depth | 29mm |
| Gross Weight | 140g |
| Width | 29mm |
| Mount Type | Chassis |
| Series | EPS-45S |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Standards/Approvals | EAC TP TC 004, IEC 6681, TUV BS ENEN 6681, UL 6681 |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 1A |
| Minimum Input Voltage | 90V ac |
Key Features
- Operates with an input voltage range of 90 to 264V AC for global compatibility.
- Provides a maximum output current of 1A with high efficiency up to 90%.
- Compact dimensions of 101.6mm length, 29mm width, and 29mm depth suitable for 1U applications.
- Features short circuit, overload, and over voltage protection ensuring safe operation.
- Includes LED indication for power status and supports free air convection cooling.
- Designed for industrial automation machinery and electronic instrumentation.
- Complies with standards including EAC TP TC 004, IEC 6681, TUV, UL, and EN 6681.
Product Description
MEAN WELL EPS-45S-48 is a high-quality switching power supply designed for industrial and electronic applications. It provides a stable 48V DC voltage output with a power rating of 48W and is suitable for chassis mounting in compact spaces.
With an input voltage range from 90 to 264V AC and a maximum input voltage rating of 370V DC, this unit offers flexibility for worldwide power standards. It supports a maximum output current of 1 ampere with an efficient operation rated at 90% efficiency, reducing energy loss and heat generation.
The compact dimensions of 101.6mm length, 29mm width, and 29mm depth make it ideal for 1U applications, while free air convection cooling eliminates the need for fans and reduces maintenance. It offers protection features such as short circuit, overload, and over voltage protection to ensure long service life and reliability. An LED indicator displays the power status for easy monitoring.
This power supply is compliant with key industry standards including EAC TP TC 004, IEC 6681, TUV BS ENEN 6681, and UL 6681, making it suitable for industrial automation machinery, mechanical and electrical equipment, industrial control systems, and electronic instruments.
Operates across a wide AC input voltage range of 90-264V. Provides a regulated output voltage of 48V DC at 1A current. Compact chassis mount design with small footprint. Efficient operation with 90% efficiency rating. Equipped with comprehensive protective functions.
LED power status indicator for clear operational status. Suitable for industrial automation and electronic equipment.
The MEAN WELL EPS-45S-48 offers a reliable and efficient power solution for various demanding industrial applications. Explore more Switching Power Supplies and reliable power solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EPS-45S-48 provides a regulated output voltage of 48V DC with a maximum output current of 1A.
It operates with an input voltage range of 90 to 264V AC, making it suitable for global compatibility.
This model has compact dimensions of 101.6mm in length, 29mm in width, and 29mm in depth, suitable for 1U applications.
The EPS-45S-48 operates with an efficiency rating of up to 90%, reducing energy loss and heat generation.
It includes short circuit, overload, and over voltage protection to ensure safe operation.
The maximum operating temperature is 70°C, while the minimum operating temperature is -30°C.
This power supply complies with several standards including EAC TP TC 004, IEC 6681, TUV BS ENEN 6681, and UL 6681.
It is designed for chassis mounting, making it suitable for compact spaces in electronic applications.
The gross weight of this unit is 140g.
It is suitable for industrial automation machinery, mechanical and electrical equipment, and electronic instrumentation.
The maximum input voltage rating for the EPS-45S-48 is 370V DC.
