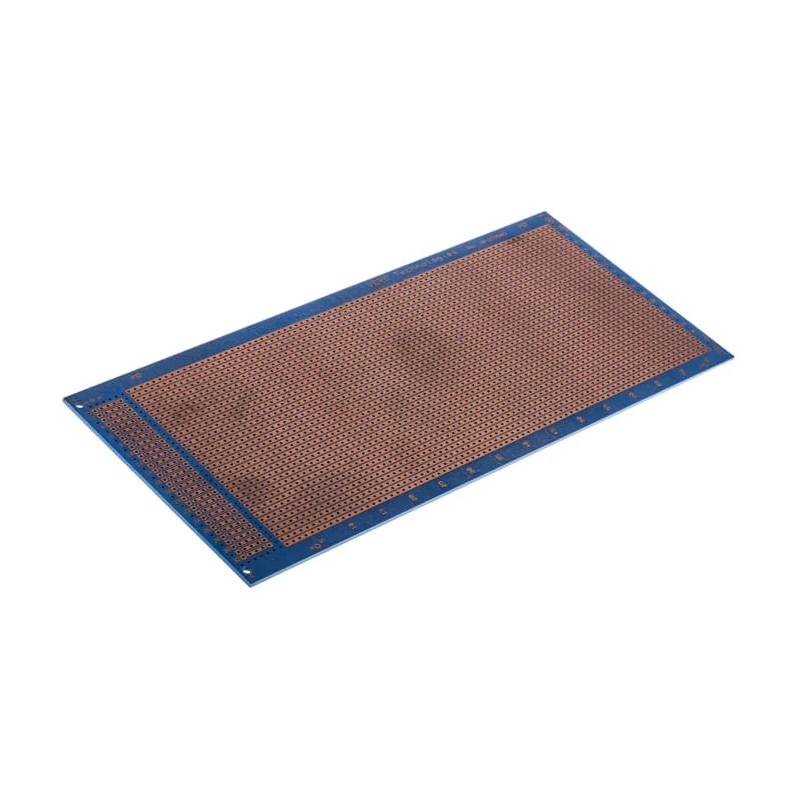

RS PRO 1 Matrix Board FR4 Epoxy Glass Fabric Laminate 1.6mm Thickness 1.02mm Holes 220mm x 100mm 100-4514

RS PRO 100-4514 Matrix Board FR4 is a single-sided prototyping board made from epoxy glass fabric laminate material with a thickness of 1.6 mm and hole diameter of 1.02 mm. The board measures 220 mm in length and 100 mm in width, making it suitable for a variety of electronic assembly and prototyping tasks.

This Matrix Board combines the advantages of Veroboard and Eurocard systems, designed to accommodate DIN 41612 connectors allowing efficient wiring by wrapping applications. The silk-screened installation grid provides clear positioning for components, facilitating accurate and rapid circuit assembly.

Manufactured according to BS 4584 Parts 3, 5, or 16, the board ensures compliance with industry standards, providing reliability and durability for industrial electronics use.

The board is ideal for microprocessor applications that require high density, flexibility, and screening. Copper thickness is 305 μm, enhancing electrical performance and track durability. It supports KM6-II eurocard sub-rack systems and indirect edge connectors for versatile industrial integration.

Its construction using FR4 epoxy glass fabric laminate ensures excellent mechanical stability and electrical insulation, making it suitable for construction, laboratory prototyping, electronic repair, and manufacturing environments.

Constructed from high-quality FR4 epoxy glass fabric laminate for durability. Board thickness of 1.6 mm ensures mechanical stability. Holes sized at 1.02 mm diameter on a 2.54 mm matrix for flexible prototyping. Single-sided design ideal for wiring by wrapping applications and electronic prototyping.

Complies with BS 4584 Part 5 and Part 3 or 16 standards. Suitable for use with KM6-II eurocard sub-rack systems and DIN 41612 connectors. Features a silk-screened component installation grid for easy assembly. Manufactured in the United Kingdom to exacting quality standards.

Ideal for electronics and PCB prototyping in industrial and laboratory applications. Explore more electronic components and prototyping boards at EnvMart to support your advanced industrial and laboratory projects.
