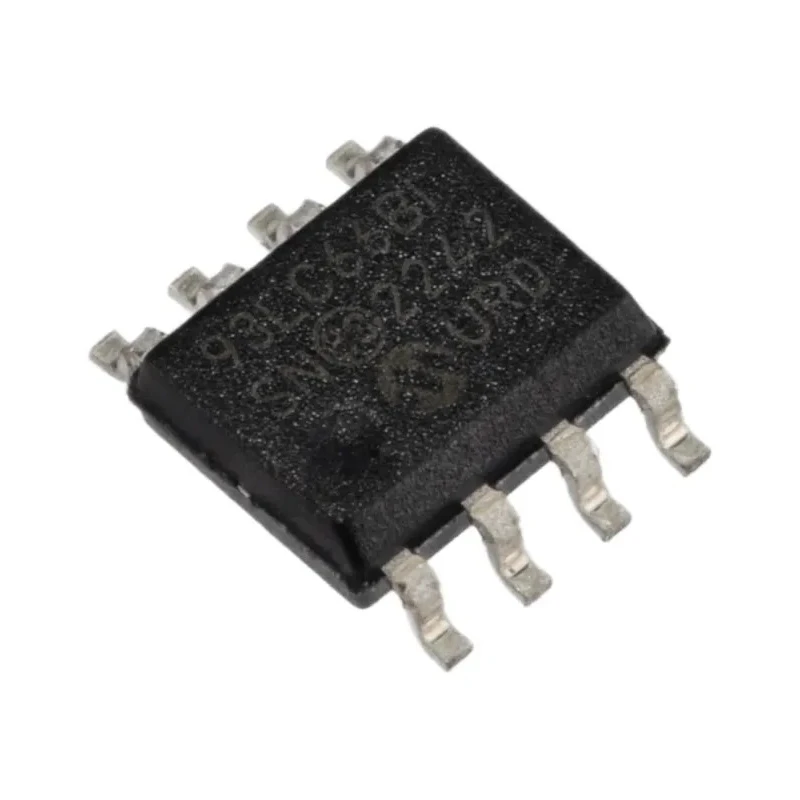

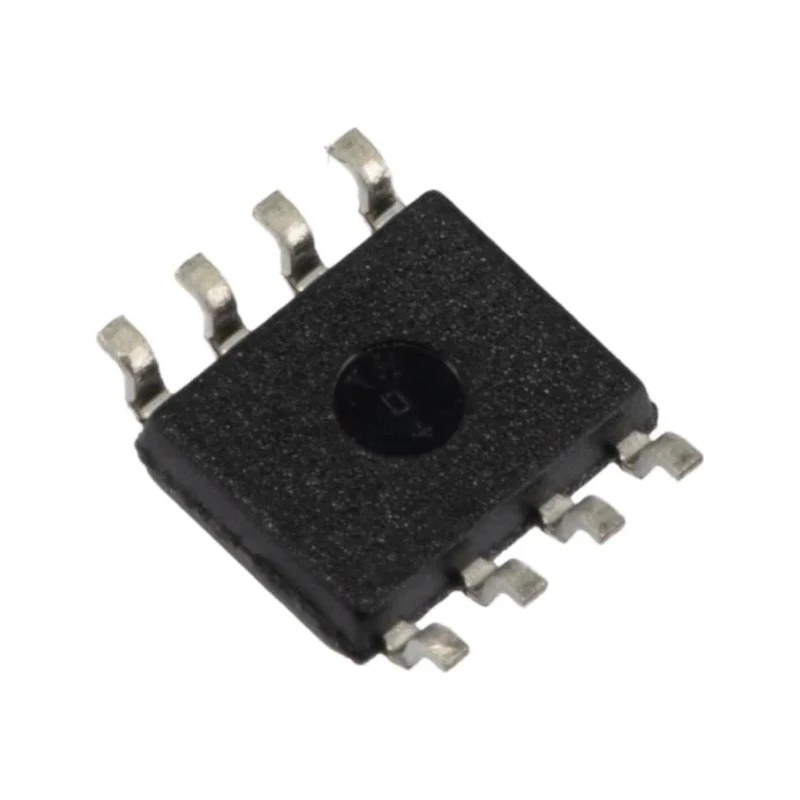

Microchip 4 kB Serial EEPROM 200 ns 2 MHz 8-Pin SOIC Serial-Microwire 93LC66B-I/SN

Microchip 93LC66B-I/SN is a 4 kB Serial EEPROM designed for reliable and efficient non-volatile memory storage. Featuring a fast 200 ns maximum random access time and a 2 MHz maximum clock frequency, this EEPROM operates using the Serial-Microwire interface protocol on a compact 8-pin SOIC surface-mount package. Its 256 x 16 bit organisation provides 4 kB of memory capacity suitable for a variety of embedded applications.

Operating voltage ranges from 2.5 V minimum to 5.5 V maximum, accommodating flexible power supply environments. The device guarantees data retention exceeding 200 years and supports up to 1,000,000 erase/write cycles, offering long-term durability and endurance for industrial and consumer electronics. Its operating temperature range from -40°C to 85°C makes it suitable for harsh environmental conditions.

Key features include self-timed erase and write cycles with auto-erase before write capability, power-on/off data protection circuitry to prevent data corruption during power fluctuations, and sequential read functionality for efficient data access. The device’s low supply current of 2 mA ensures suitability for power-sensitive electronic systems.

This Microchip EEPROM is widely utilized in electronic components, power and connector systems, semiconductor devices, and memory chips. It is ideal for use in applications ranging from consumer electronics to automotive systems where reliable non-volatile memory is critical.

4 kB memory capacity with 256 x 16 bit organisation. 8-pin SOIC package with surface mount type. Serial-Microwire interface for simple serial communication. Maximum clock frequency of 2 MHz for fast operation. Wide operating voltage range: 2.5 V to 5.5 V.

Data retention greater than 200 years and 1,000,000 erase/write cycles. Operating temperature range: -40°C to 85°C. Low supply current of 2 mA beneficial for portable devices. Self-timed erase and write cycles enhance data integrity.

Power-on/off protection circuitry prevents data loss. Explore more from the range of EEPROM and semiconductor components at EnvMart for your electronic assembly and development needs.
