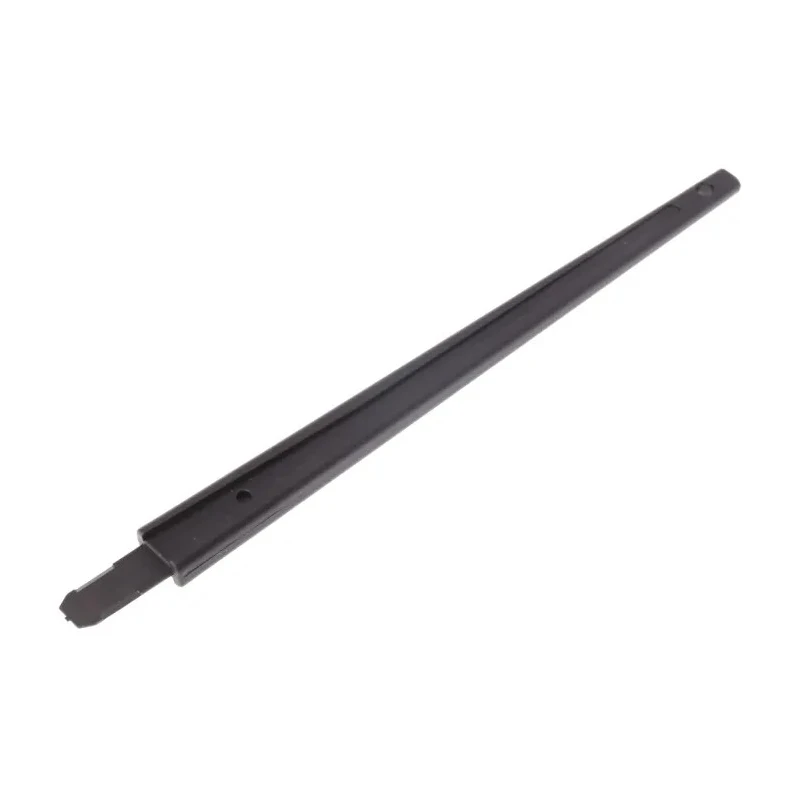

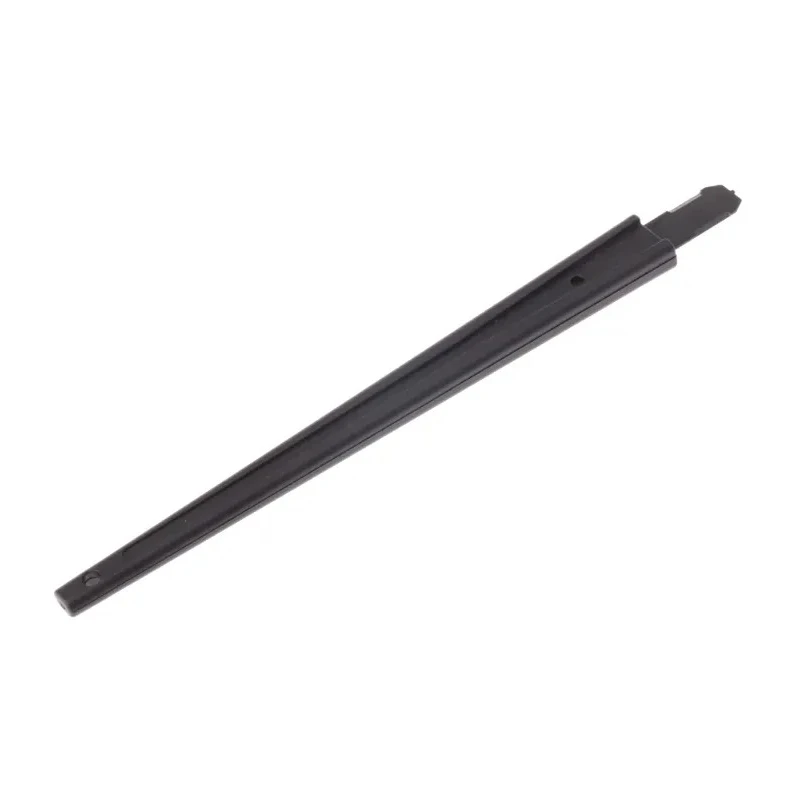

TE Connectivity Crimp Extraction Tool, Mod IV, Mod IV.v, Mod V Series, Spring Contact, Extraction Tool Contact 843477-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Crimp Extraction Tool, Mod IV, Mod IV.v, Mod V Series, Spring Contact, Extraction Tool Contact 843477-1

Name: TE Connectivity Crimp Extraction Tool, Mod IV, Mod IV.v, Mod V Series, Spring Contact, Extraction Tool Contact 843477-1
Brand: TE Connectivity
SKU: 138006
Price: 141.58 USD
Availability: InStock



Category Insertion & Extraction Tools Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Model	843477-1
Series	Mod IV, Mod IV.v, Mod V
Sub Type	Extraction Tool
Contact Type	Spring
Contact Size	0.81 mm

Key Features

This extraction tool fits spring contacts with a contact size of 0.81 mm.
It features a precise tip height of 0.46 mm for effective contact extraction.
The tool has a 21° lance reset angle for resetting depressed locking lances accurately.
Manufactured in the United States, ensuring high quality and reliability.
Ideal for professional use in electrical, telecommunications, and industrial wiring applications.
Compatible with AMPMODU MTE connector systems for efficient wire-to-board and wire-to-wire connections.
Offers quick, one-step assembly without the need for wire stripping.
Help reduce labor and costs with mass termination of wires using this specialized tool.

Product Description

TE Connectivity 843477-1 Crimp Extraction Tool is engineered for precise extraction and resetting of spring contacts from Mod IV, Mod IV.v, and Mod V series connectors commonly used in industrial and electrical assembly tasks.

The tool supports a contact size of 0.81 mm and features a tip height of 0.46 mm with a 21° lance reset angle, allowing technicians to efficiently remove and reset contact locking lances without damaging housing or contacts.

Manufactured in the United States, this extraction tool supports AMPMODU MTE IDC contacts, which are designed for quick and reliable wire termination in wire-to-wire and wire-to-board applications. The AMPMODU MTE connector system employs insulation displacement contact technology, facilitating fast assembly without the need for wire stripping, thereby saving time and reducing operational costs.

This tool is essential for electrical technicians, manufacturing, maintenance, and repair professionals working with spring contact connectors in telecommunications, industrial equipment, and control systems.

This extraction tool fits spring contacts with a contact size of 0.81 mm. Tip height of 0.46 mm ensures precise contact removal. 21° lance reset angle for accurate resetting of locking lances. Manufactured in the United States for quality assurance.

Designed for use with AMPMODU MTE connector systems. Saves labor by enabling mass wire termination without wire stripping. Efficient and reliable for industrial, laboratory, and electrical manufacturing use cases.

Choose TE Connectivity for trusted insertion and extraction tools that enhance productivity and maintain connector integrity. Explore EnvMart's comprehensive portfolio for additional hand tools and crimping accessories tailored to professional standards.

Explore more products in our Insertion & Extraction Tools category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This extraction tool supports a contact size of 0.81 mm, making it suitable for specific spring contacts used in Mod IV, Mod IV.v, and Mod V series connectors.

The tool features a precise tip height of 0.46 mm, which aids in effective contact extraction without damaging the housing or contacts.

It has a 21° lance reset angle, allowing for accurate resetting of depressed locking lances during the extraction process.

This model is compatible with AMPMODU MTE connector systems, facilitating efficient wire-to-board and wire-to-wire connections.

It is ideal for professional use in electrical, telecommunications, and industrial wiring applications, particularly for tasks involving spring contact connectors.

The extraction tool is manufactured in the United States, ensuring quality and reliability in its construction.

No, it enables quick, one-step assembly without the need for wire stripping, which helps reduce labor and costs during mass wire termination.

This extraction tool is specifically designed for use with spring contacts, particularly those found in the Mod IV, Mod IV.v, and Mod V series connectors.

Its primary function is to extract and reset spring contacts from connectors, allowing technicians to efficiently manage contact locking lances.

By enabling mass wire termination without wire stripping, it saves time and reduces operational costs, thereby enhancing productivity for technicians.

Key features include a contact size of 0.81 mm, a tip height of 0.46 mm, a 21° lance reset angle, and compatibility with AMPMODU MTE connector systems.

Electrical technicians, manufacturing, maintenance, and repair professionals working with spring contact connectors in various applications would benefit from this tool.
