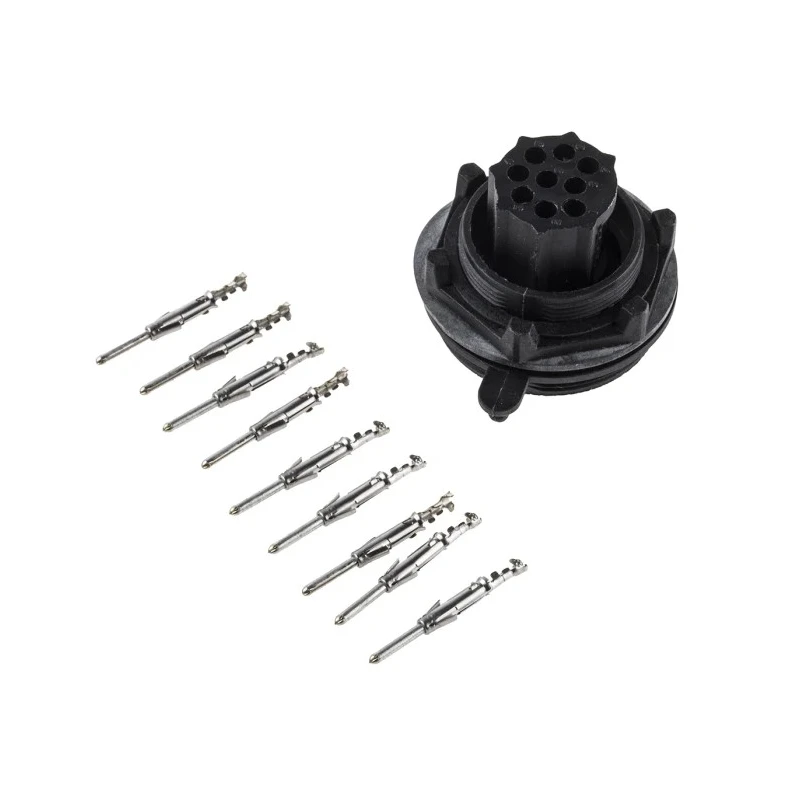

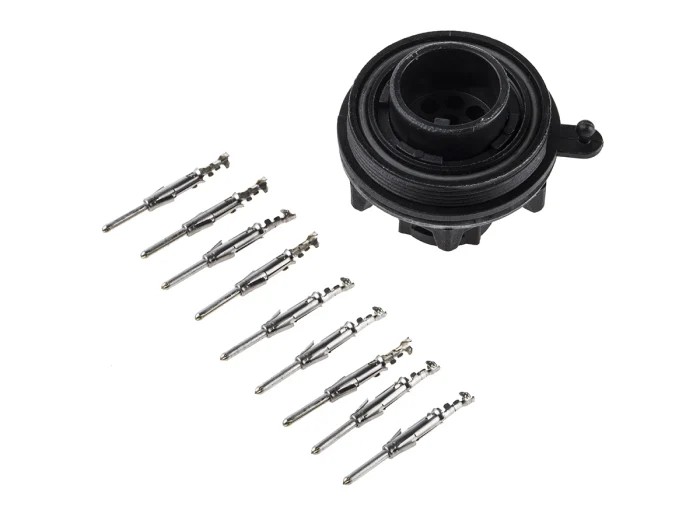

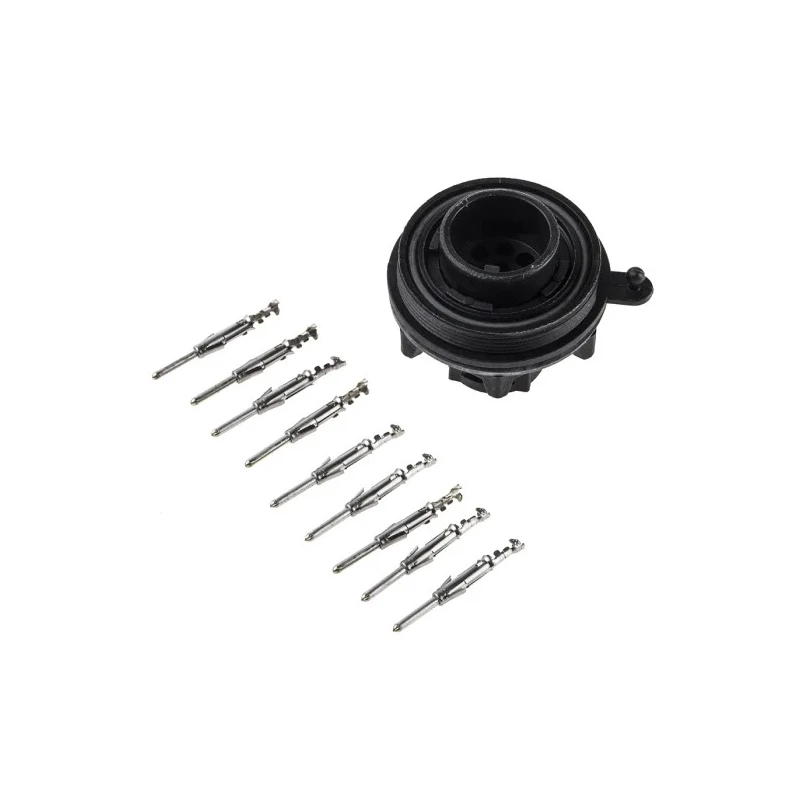

Bulgin Circular Connector 9 Contacts Panel Mount Plug Male IP68 Standard Buccaneer Series PX0727/P
Specifications
| Country of Origin | Tunisia |
|---|---|
| Voltage | 150V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 5A |
| Model | PX0727/P |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Standard Buccaneer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shell Size | 38 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Designed for panel mount applications with a straight orientation.
- Rated for 5A current and 150V voltage for reliable power connections.
- Features a threaded mating system with a secure screw locking mechanism.
- Constructed with a polymer housing and copper contacts plated with tin for durability.
- Operates optimally between -20°C and 70°C temperatures.
- Protected to IP68 standard, ensuring dust tightness and water resistance up to temporary submersion.
- Offers easy assembly with crimp termination and single hole fixing with a jam nut.
- Suitable for harsh industrial, automotive, and marine environments due to its environmental resistance.
Product Description
Bulgin PX0727/P Circular Connector is a durable industrial power connector designed for panel mount use in harsh environments. This 9-contact plug features a robust straight orientation and robust polymer housing that provides insulation and environmental protection. Rated for 5 amperes current and 150 volts, it offers reliable power transmission in demanding applications.
Belonging to the Standard Buccaneer Series, this connector boasts an IP68 rating, making it fully dust tight and capable of withstanding temporary submersion in water. The contact material is copper with tin plating, ensuring corrosion resistance and efficient electrical conductivity. Its operating temperature range is from -20°C up to 70°C, enabling stable performance in diverse conditions.
The connector's termination type is crimp, allowing easy and secure cable fitting without special tooling. It features a threaded mating type with a positive locking keyway and screw locking mating system, ensuring secure and foolproof connections even in vibration-prone environments. The single-hole fixing with a jam nut facilitates hassle-free front panel mounting.
These features make the PX0727/P ideally suited for power management in industrial settings, automotive applications, and marine environments where resistance to dust, oils, saltwater, and liquid ingress is critical. The connector's design ensures long life and dependable operation under challenging conditions.
Panel mount circular connector with 9 contacts in plug male configuration. Standard Buccaneer Series with IP68 protection rating. Rated for 5A current at 150V voltage. Polymer housing with copper tin-plated contacts. Threaded mating type with positive locking keyway and screw locking system.
Operating temperature range from -20°C to 70°C. Crimp termination for reliable cable connection without special tooling. Robust and versatile for industrial, automotive, and marine use cases. Discover more industrial circular connectors and power connectors in the Industrial Circular Connectors category for efficient and resilient electrical interconnections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A and a voltage of 150V, making it suitable for reliable power connections in various applications.
The PX0727/P has an IP68 rating, ensuring it is fully dust tight and can withstand temporary submersion in water.
It features a polymer housing and copper contacts that are plated with tin for corrosion resistance and efficient electrical conductivity.
The operating temperature range is from -20°C to 70°C, allowing it to perform reliably in diverse environmental conditions.
This connector uses a crimp termination type, allowing for secure cable fitting without the need for special tooling.
It is designed for panel mount applications, featuring a single-hole fixing with a jam nut for easy installation.
This model has 9 contacts, configured as a male plug.
The connector features a threaded mating type with a positive locking keyway and screw locking system for secure connections.
It belongs to the Standard Buccaneer Series, which is known for its robust design suitable for harsh environments.
It is suitable for harsh industrial, automotive, and marine environments due to its environmental resistance and IP68 rating.
The shell size of this connector is 38, which is standard for its series.
The country of origin for this connector is Tunisia.
