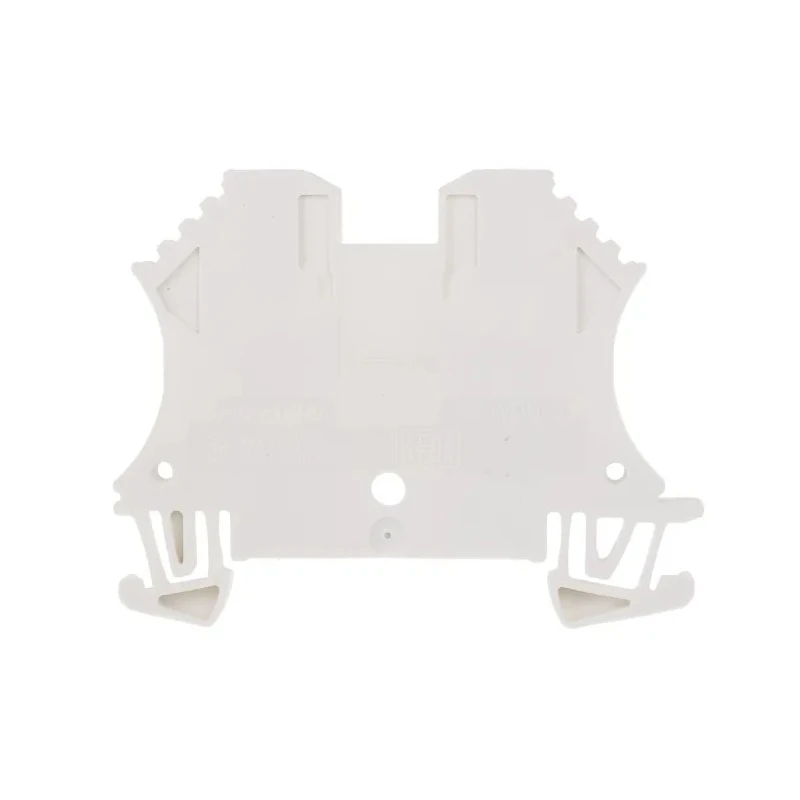

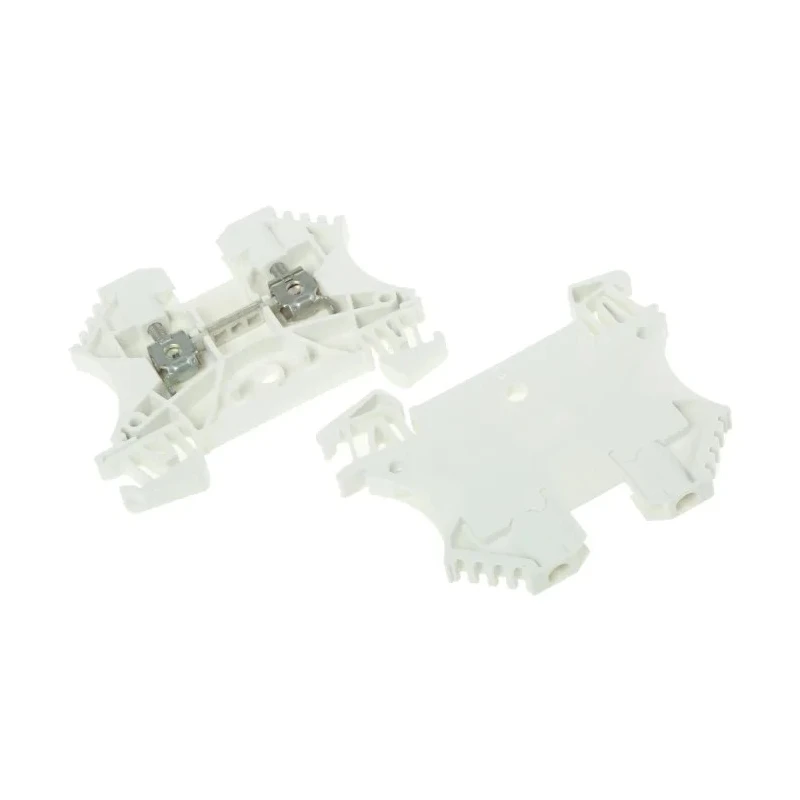

Weidmüller WDU Series Feed Through Terminal Block 2.5mm², 1-Level Screw Termination, White 1036800000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | White |
| Series | WDU |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Sub Type | Snap-On |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | Lloyds, NEMKO, POL SKIREJ, UKCA, CE, IEC 60947-7-1, EAC, DNV GL, CCC, ATEX, CB, IECEX |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
Key Features
- Designed for 1-level screw termination providing secure electrical clamp.
- Compatible with wire sizes from 30 AWG to 12 AWG for versatility.
- Operating voltage rating up to 800V suitable for various industrial applications.
- Constructed with white nylon 6.6 housing with high temperature tolerance up to 120°C.
- Certified to ATEX standards for use in hazardous areas.
- Offers conforming approvals including UKCA, CE, IEC 60947-7-1, EAC, DNV GL, CCC, CB, and IECEX.
- Suitable for top hat DIN rail mounting with a snap-on sub type mechanism.
- Manufactured in Germany ensuring high quality and durability.
Product Description
Weidmüller 1036800000 WDU Series Feed Through Terminal Block is a high-quality electrical component designed for safe and efficient cable connection in industrial and commercial electrical installations. This terminal block features a 1-level screw clamp system allowing quick and secure fastening of conductors with cross sections up to 2.5mm² (30 AWG to 12 AWG). It supports a nominal current of 24A and can withstand voltages up to 800V, making it suitable for a wide range of electrical equipment and control panels.
The terminal block housing is made from durable white nylon 6.6 material, which provides excellent mechanical strength and resistance to temperatures up to 120°C continuous operation (180°C short term). It complies with stringent international standards and carries multiple approvals including ATEX, IECEX, CE, UKCA, and others for use in hazardous and demanding environments.
The design of the WDU series allows for easy snap-on installation on standard top hat DIN rails, simplifying assembly and maintenance. The unique patent-protected design ensures reliable electrical contact without risk of loosening or shock, with options for screw-in or plug-in cross connections for modular flexibility.
Compact and reliable feed through terminal block for DIN rail mounting. Rated for 24A current and up to 800V voltage. White nylon 6.6 housing with high heat resistance. Supports wire sizes from 30 AWG to 12 AWG (2.5mm² cable CSA).
Available with screw termination providing secure clamping. Certified to international standards including ATEX for hazardous areas. Manufactured in Germany ensuring premium build quality. Ideal for industrial, laboratory, construction, HVAC, and electrical distribution applications.
This terminal block is an essential component in electrical panel wiring, offering secure connections and compliance with safety standards for demanding industrial environments. Explore EnvMart's extensive catalog for similar Weidmüller terminal blocks and related electrical components.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this terminal block is 800V, making it suitable for various industrial applications.
It can accommodate wire sizes from 30 AWG to 12 AWG, with a cable cross-sectional area of 2.5mm².
This terminal block is rated for a nominal current of 24A.
The terminal block can operate within a temperature range of -50°C to 120°C, with a short-term tolerance of up to 180°C.
It features a screw termination type, providing secure clamping for electrical connections.
Yes, it is certified to ATEX standards, making it suitable for use in hazardous areas.
It complies with several standards including UKCA, CE, IEC 60947-7-1, EAC, DNV GL, CCC, CB, and IECEX.
This model is designed for snap-on mounting on standard top hat DIN rails, simplifying installation.
The housing is constructed from white nylon 6.6, which provides high mechanical strength and temperature resistance.
This terminal block features a 1-level design, allowing for efficient use in electrical installations.
It is manufactured in Germany, ensuring high quality and durability.
It is suitable for various applications including industrial, laboratory, construction, HVAC, and electrical distribution.
