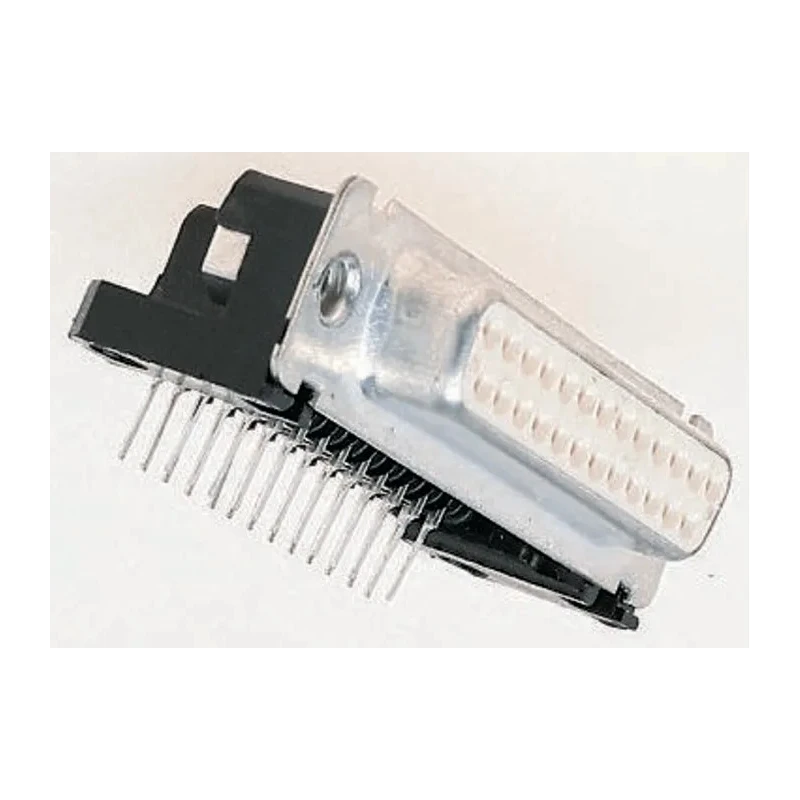

Cinch FD 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Male FDBB-25P1AENTI2/1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 200V |
| Brand | Cinch |
| Orientation | Right Angle |
| Current | 5A |
| Model | FDBB-25P1AENTI2/1 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | FD |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 2.76mm |
| Contact Plating | Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Flammability Rating | UL94V-0 |
| 25W RT/ANGLE FILTER D PLGBrand | NEUTRAL |
| ITT Cannon D*JK 25 Way Filtered PCB D-Sub Connector PlugBrand | ITT Cannon |
Key Features
- Features 25 male contacts with solder termination for secure PCB mounting.
- Right angle orientation suitable for compact PCB installations.
- Operates at 200V voltage rating and 5A current rating.
- Constructed with polyethylene terephthalate housing and copper alloy contacts plated with nickel.
- Meets MIL-STD-220 EMI attenuation standard using integrated capacitive elements.
- Operates in temperatures from -25°C to 125°C with UL94V-0 flammability rating.
- Includes bright tin finish steel backshell for enhanced RFI/EM shielding.
- Gold-plated turned pin contacts provide reliable connectivity.
Product Description
Cinch FDBB-25P1AENTI2/1 is a 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Male designed to provide superior EMI/RFI protection for electronic circuits. Its right angle orientation and solder termination mounting type enable solid and space-efficient PCB installation. Rated for 200V and 5A, this connector features a polyethylene terephthalate housing and high-quality copper alloy contacts plated with nickel for long-lasting durability and corrosion resistance.

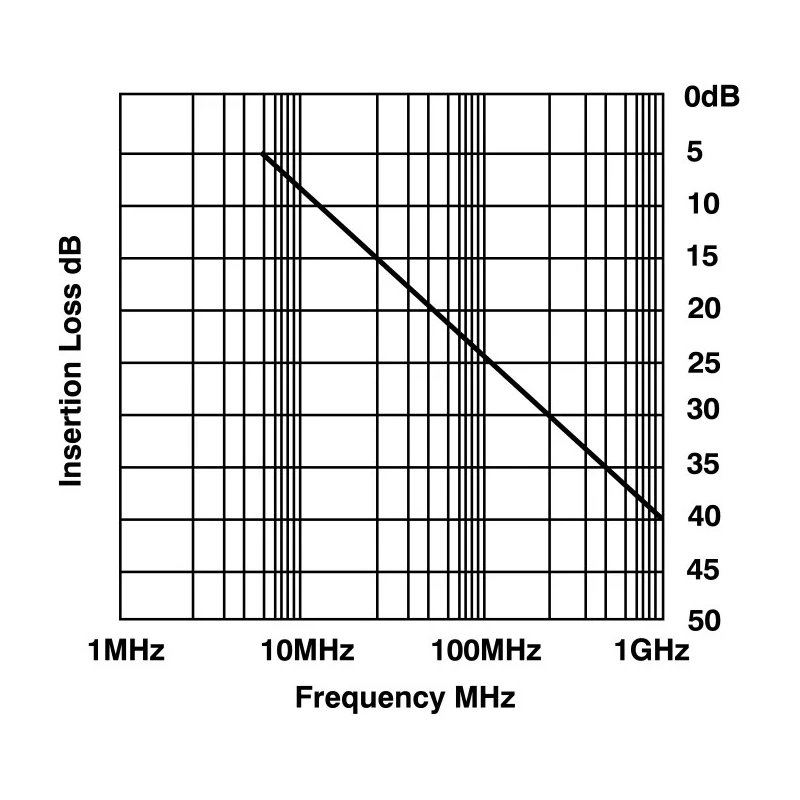

The connector design includes integrated discrete capacitive elements achieving MIL-STD-220 attenuation standards. These capacitors provide robust filtering of EMI/RFI interference, ensuring signal integrity in demanding industrial and military environments. The product features bright tin finish steel backshells that enhance shielding effectiveness against radiated interference.
Operating across a temperature range of -25°C to 125°C, and with a UL94V-0 flammability rating, this connector is suitable for industrial, commercial, laboratory, and high-reliability applications. The gold-plated turned pin contacts offer excellent electrical contact quality and reliability, important for critical systems.
25 male contacts with precision machined pins and solder terminations. Right angle, through hole mounting for PCB connections. 200V voltage and 5A current capability. Polyethylene terephthalate housing material for durability.
MIL-STD-220 compliant EMI filtering capacitive elements. Nickel-plated copper alloy contacts for corrosion resistance. Bright tin finished steel backshells provide additional EMI/RFI shielding. Operating temperature range -25°C to 125°C with UL94V-0 rating.
Suitable for military, industrial, commercial, and computer interfacing.
This product is ideal for electronic components requiring robust EMI/RFI filtering and reliable male D-Sub connection interfaces. Browse more connectors and electronic components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
