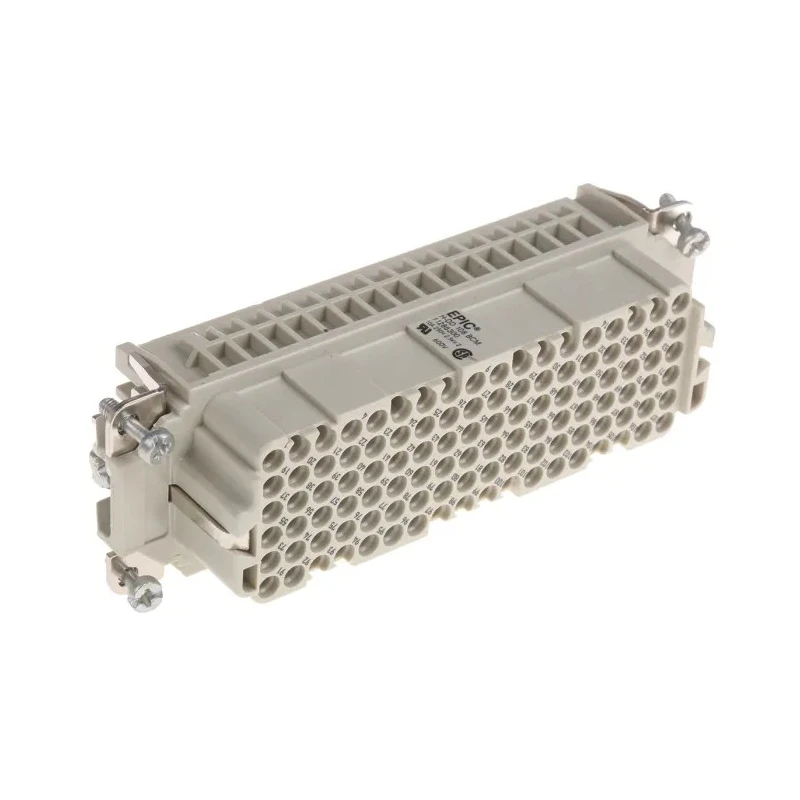

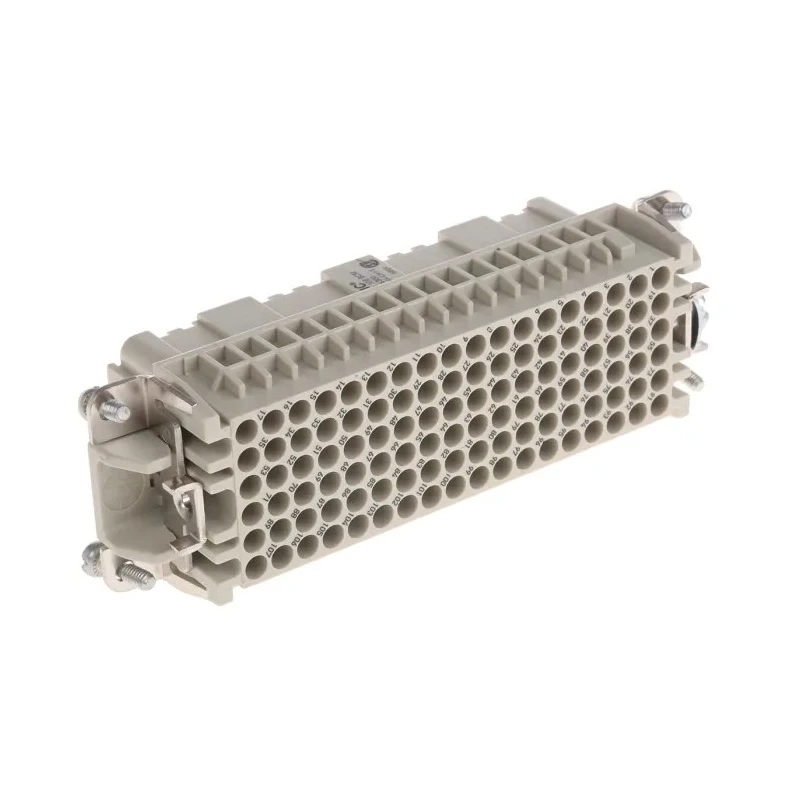

EPIC Heavy Duty Power Connector Insert, 8.5A Current Rating, H-DD Series Male, 108 Contacts 11286300

EPIC 11286300 Heavy Duty Power Connector Insert is a high-performance electrical connector designed for demanding industrial applications. It provides an 8.5A current rating with a robust 108 contact configuration within the H-DD series male connector type. Its crimp termination design ensures easy and reliable installation.

The connector features copper alloy contacts plated with silver to provide excellent conductivity and durability. Supporting wire sizes from 0.14mm² up to 2.5mm², this connector is versatile for various cable installations. With a voltage rating of 600V and an IP65 ingress protection rating, it is suitable for environments exposed to dust and moisture.

Its high contact density allows for more power and control connections within smaller shell sizes, making it ideal for compact switchgear, machine tools, automation systems, and professional sound and lighting industries. The straight orientation with 6 rows accommodates 108 contacts plus earth connection, offering reliable electrical and mechanical performance.

Manufactured in Germany with adherence to global standards including VDE 0110 and approvals such as SEV, UL, and CSA, this connector ensures safety and quality. The plug and socket inserts are interchangeable and include separate earth connections integrated into metal body shells.

For assembly, the contacts are terminated using a high-precision 8 point indent crimp tool, enabling effective and repeatable termination. The assembled connectors are type tested to 10A at 250V a.c., confirming their strength for critical electrical connections.

The connector's rating and IP65 protection make it suitable for various industrial applications demanding high reliability and environmental resistance. It is compatible with standard hoods and housings for the H-DD series, ensuring ease of integration.

High density contact loading for compact power connector solutions. Silver-plated copper alloy contacts provide excellent conductivity and durability. Crimp termination using an 8 point indent crimp tool for efficient assembly.

IP65 protection rating suitable for harsh industrial environments. Rated for 8.5A current and 600V voltage applications. 108 contacts plus earth in a 6-row configuration for flexible power distribution. Manufactured in Germany under strict quality and safety standards.

Compatible with standard mounting hoods and housings for easy installation. Explore a wide range of Heavy Duty Power Connector Inserts and Modules on EnvMart, offering trusted solutions for electronics and electrical power distribution needs.
