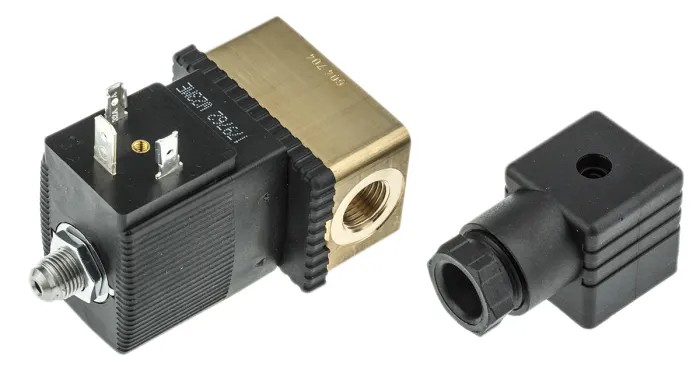

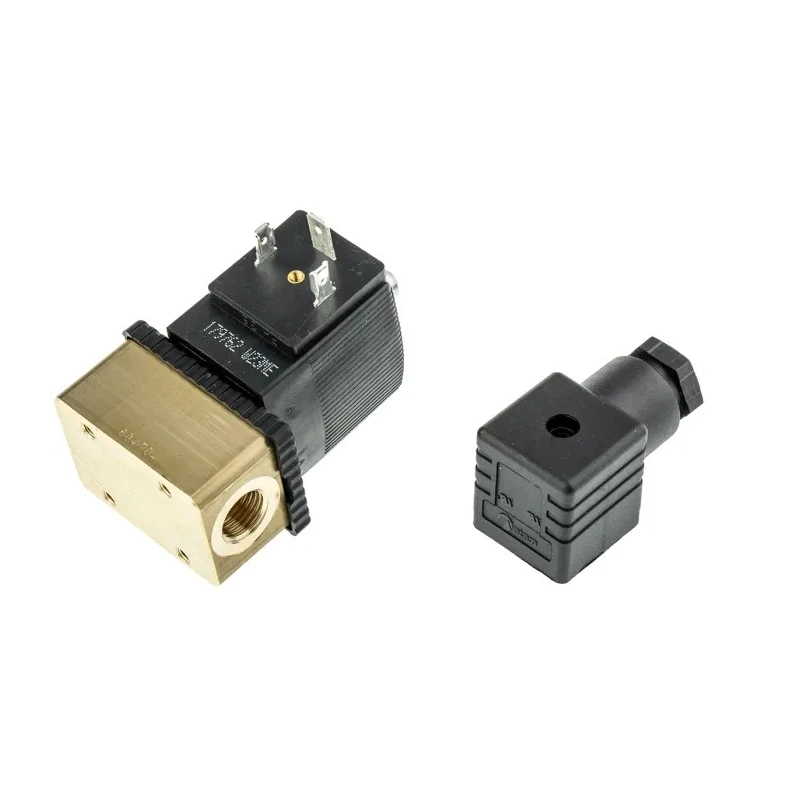

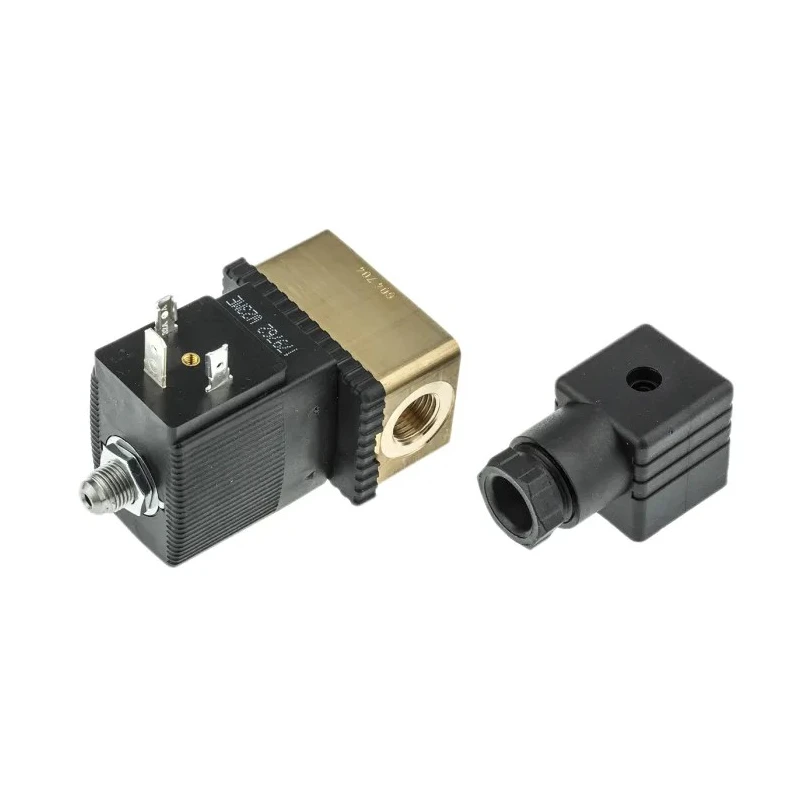

RS PRO 3 Port NC Solenoid Valve 24V DC Brass Body 6.35 mm Orifice Diameter 2mm 125348

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3 Port NC Solenoid Valve 24V DC Brass Body 6.35 mm Orifice Diameter 2mm 125348

Name: RS PRO 3 Port NC Solenoid Valve 24V DC Brass Body 6.35 mm Orifice Diameter 2mm 125348
Brand: RS PRO
SKU: 137645
Price: 157.45 USD
Availability: InStock



Category Solenoid Valve Brand RS PRO Condition New

Specifications

Country of Origin	Germany
Brand	RS PRO
Body Material	Brass
Maximum Operating Pressure	10 bar
Model	125348
Series	6014
Number Of Ports	3
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-10°C
Orifice Diameter	2mm
Supply Voltage	24V dc
Inlet Port Size	6.35 mm
Default Valve Position	NC
Inlet Port Gender	Female
Maximum Opening Time	15ms
Flow Factor Kv	0.11m³/h
Maximum Closing Time	20ms
Burkert Solenoid Valve 134179, 3 Port, NC, 24V dc 1/8 in GBrand	Burkert
RS PRO Solenoid Valve, 3 Port, NC, 24V G1/4, G1/4RS Stock No.	255-4156Brand: RS PRO

Key Features

Operates at 24V DC with power consumption of 8W.
Constructed with a robust brass body ensuring durability and corrosion resistance.
Features 3 ports with female inlet and outlet connections of 6.35 mm size.
Default valve position is normally closed for safety in fluid control.
Orifice diameter of 2mm enables precise flow control with Kv value of 0.11 cubic meters per hour.
Suitable for water, neutral fluids, natural air, gases, oil, and fats without additives.
Maximum operating pressure up to 10 bar and temperature range from -10°C to 55°C.
Compact and direct-acting design with DN 2.5 diameter.

Product Description

Burkert 125348 is a 3 port normally closed (NC) solenoid valve designed for reliable fluid control in industrial applications. Operating at 24V DC with 8W power consumption, this valve features a durable brass body with 6.35 mm female inlet and outlet ports providing robust, corrosion-resistant performance. The valve has a 2mm orifice diameter and a flow factor Kv of 0.11 m³/h, making it suitable for handling water, neutral fluids, air, natural gases, oil, and fats without additives.

Its direct-acting compact design with DN 2.5 diameter and banjo-threaded connection allows easy mounting on pneumatic valves. The solenoid coil can be easily replaced without disassembling the valve and can be locked in multiple positions ensuring installation flexibility. The maximum operating pressure is 10 bar with a temperature range from -10°C to 55°C, suitable for varied industrial environments.

The valve provides a high-speed response with a maximum opening time of 15 milliseconds and maximum closing time of 20 milliseconds, enhancing process efficiency. The integrated stopper and plunger guide tube are welded for increased pressure resistance and improved leak tightness. This solenoid valve finds wide industrial use in manufacturing, fluid power systems, HVAC, water treatment, and pneumatic control applications.

Operates at 24V DC with 8W power consumption. Brass body construction for durability. Three ports with female inlet and outlet of 6.35 mm size. Normally closed valve default position to ensure safety. Orifice diameter of 2mm with flow factor Kv of 0.11 m³/h.

Suitable for liquids, neutral gases, air, oil, and fats without additives. Maximum operating pressure 10 bar with -10°C to 55°C temperature range. Easy coil replacement and flexible coil locking positions. Quick opening and closing times of 15 ms and 20 ms respectively.

Manufactured in Germany with high-quality standards.
