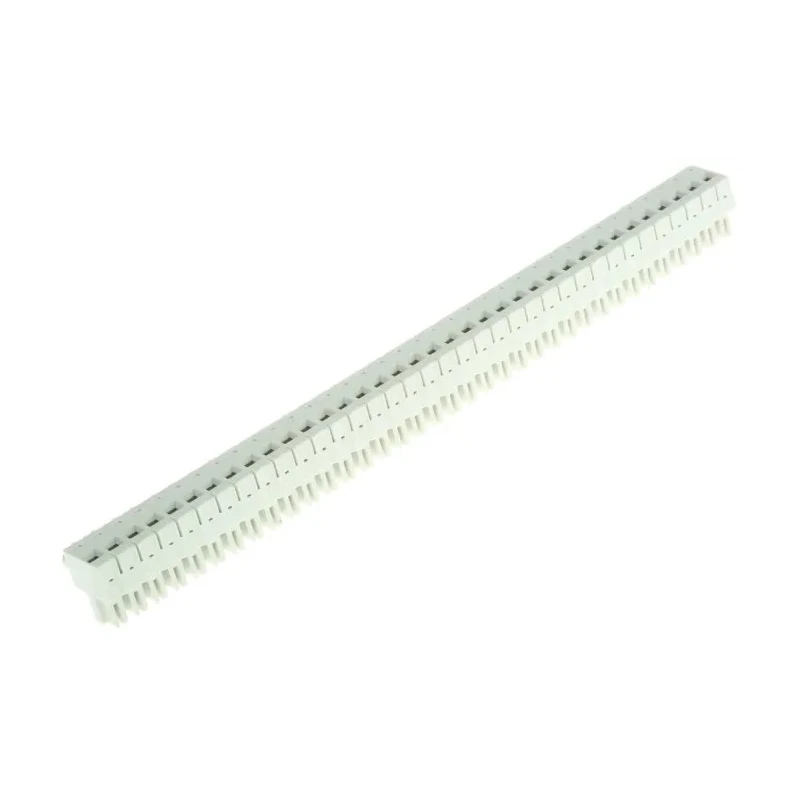

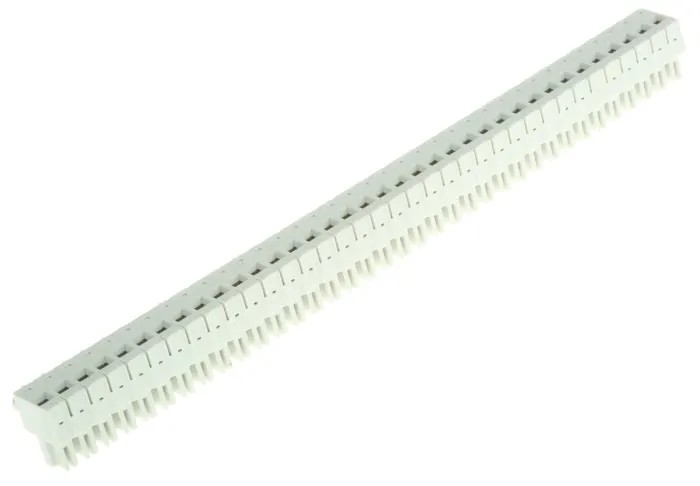

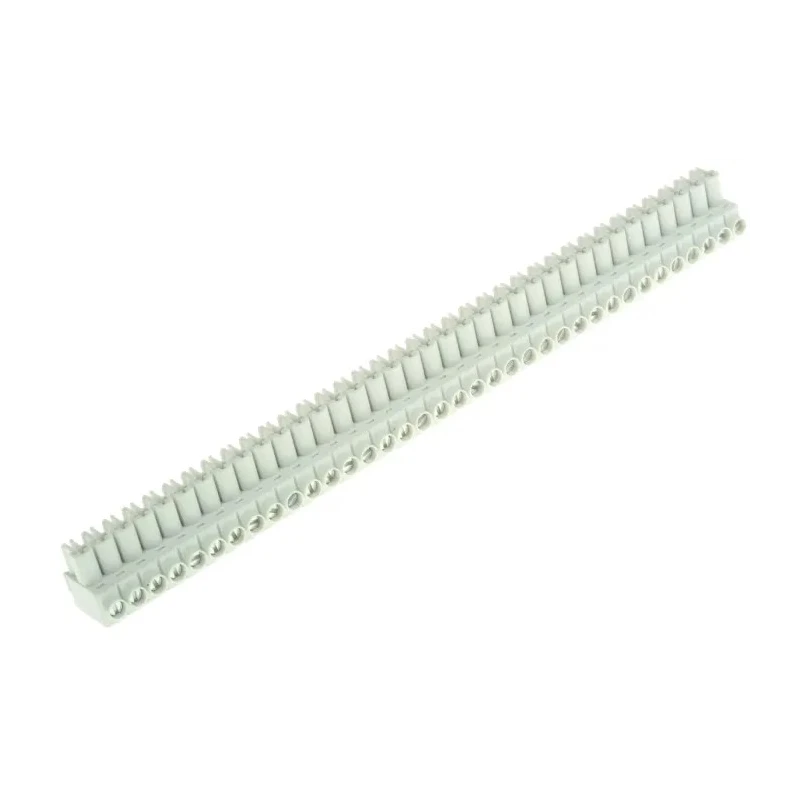

CAMDENBOSS CT/B Series Right Angle Cable PCB Terminal Block 36 Contacts 5 mm Pitch 1 Row CTB7300/36F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | CAMDENBOSS |
| Orientation | Right Angle |
| Current | 10A |
| Model | CTB7300/36F |
| Mount Type | Cable |
| Contact Material | Brass |
| Series | CT/B |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
| Assembled Dimension are | Length 180 mm, Height 19.5 mm and Width 19mm |
Key Features
- This terminal block features a cable mount type design suitable for right angle PCB connections.
- It supports a current rating of 10 A at 250V AC for robust electrical performance.
- Constructed with brass contact material ensuring durability and conductivity.
- Designed with solder termination and male contact gender for secure connections.
- Operates within a temperature range of 0°C to 130°C for varied industrial environments.
- It measures 180 mm in length, 19.5 mm in height, and 19 mm in width for compact installation.
- This product is suitable for industrial electronics, laboratory instrumentation, and manufacturing applications.
- Not certified under any specific standards but engineered for reliable performance.
Product Description
The CAMDENBOSS CTB7300/36F is a high-quality right angle cable PCB terminal block from the CT/B series designed for dependable wire-to-board connections in industrial and electronic applications. It features 36 contact points arranged in a single row with a 5 mm pitch, supporting current loads up to 10 amps at 250 volts AC.
Constructed using durable brass contact material and terminated by solder, this cable mount terminal block ensures secure electrical continuity and mechanical stability. Its male contact gender and right angle orientation allow for flexible PCB wiring configurations, maximizing available space without compromising on performance.
Operating reliably within temperatures between 0°C and 130°C, the CTB7300/36F is suitable for demanding environments such as industrial control systems, laboratory equipment, HVAC controls, and manufacturing automation setups. The assembled dimensions are 180 mm in length, 19.5 mm in height, and 19 mm in width, making it a compact solution for dense PCB designs.
This terminal block series does not carry specific certifications but is engineered to meet the needs of professional electronics engineers requiring robust and precise wire-to-board connectivity. Its plug-in screw terminal mechanism allows for efficient cable mounting and maintenance.
This terminal block supports 36 contacts in one row for high-density connections. Uses brass contacts for excellent conductivity and corrosion resistance. Rated for 10 A current at 250 V AC, suitable for various industrial electrical loads.
Designed to operate within 0°C to 130°C temperature range for versatile applications. Offers reliable solder termination with a male contact gender fitting. Compact dimensions facilitate installation in space-constrained PCB layouts.
The CAMDENBOSS CTB7300/36F is recommended for electronics manufacturing, industrial automation, and laboratory instrumentation requiring precision connector solutions. Explore more PCB Terminal Blocks and related products at EnvMart for your electrical and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 10 A at 250V AC.
It operates within a temperature range of 0°C to 130°C, making it suitable for varied industrial environments.
This terminal block features 36 contacts arranged in a single row.
It is designed with solder termination for secure connections.
The assembled dimensions are 180 mm in length, 19.5 mm in height, and 19 mm in width.
The contacts have a pitch of 5 mm.
It is constructed with brass contact material, ensuring good conductivity.
This model features a right angle orientation, allowing for flexible PCB wiring configurations.
It utilizes a wire-to-board connector system for effective connections.
It is suitable for industrial electronics, laboratory instrumentation, and manufacturing applications.
The contact gender of the CTB7300/36F is male.
The country of origin for this terminal block is India.
