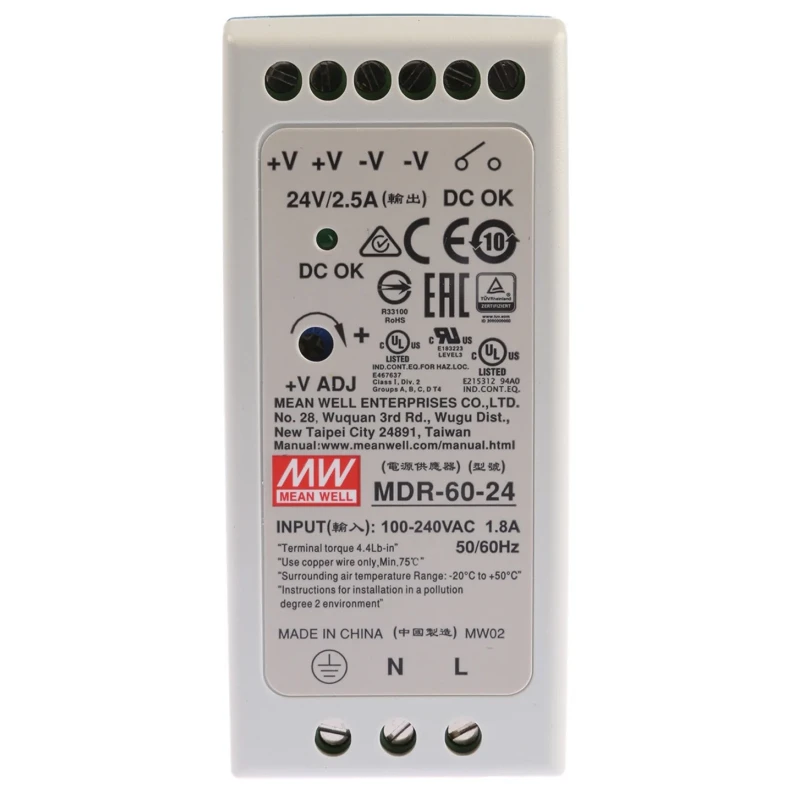

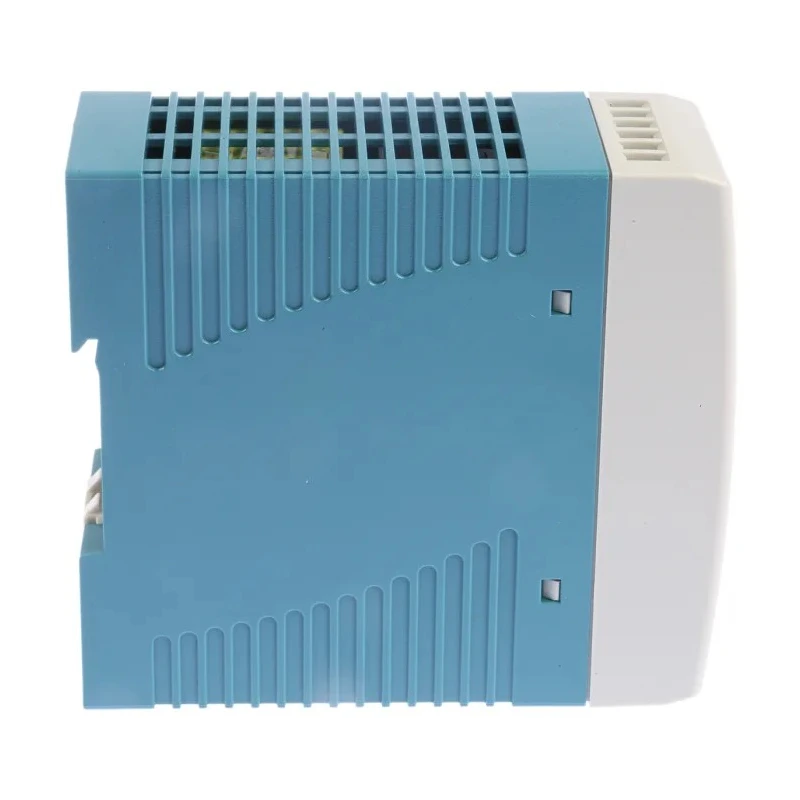

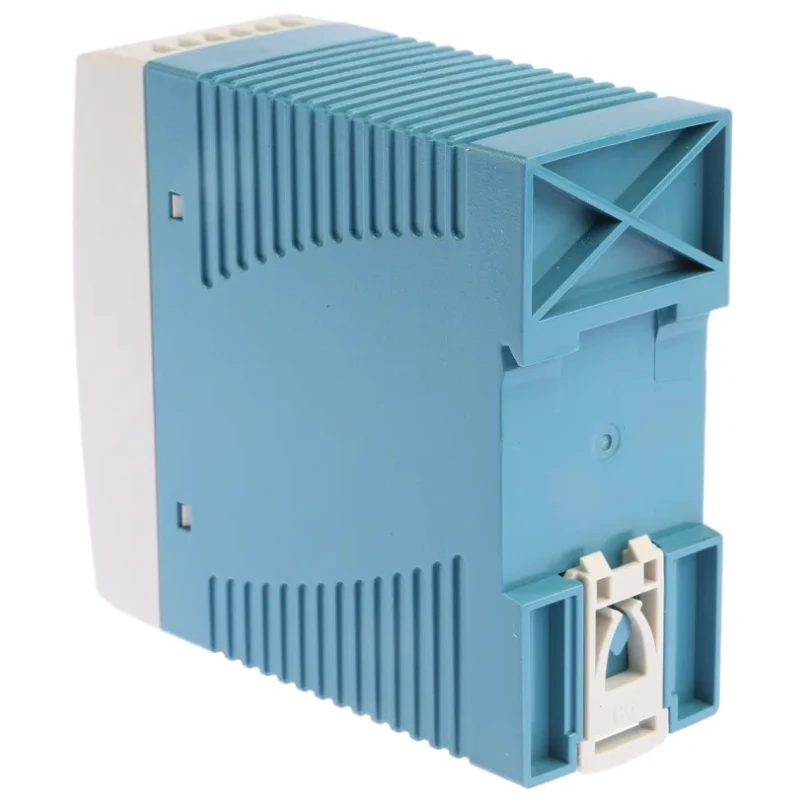

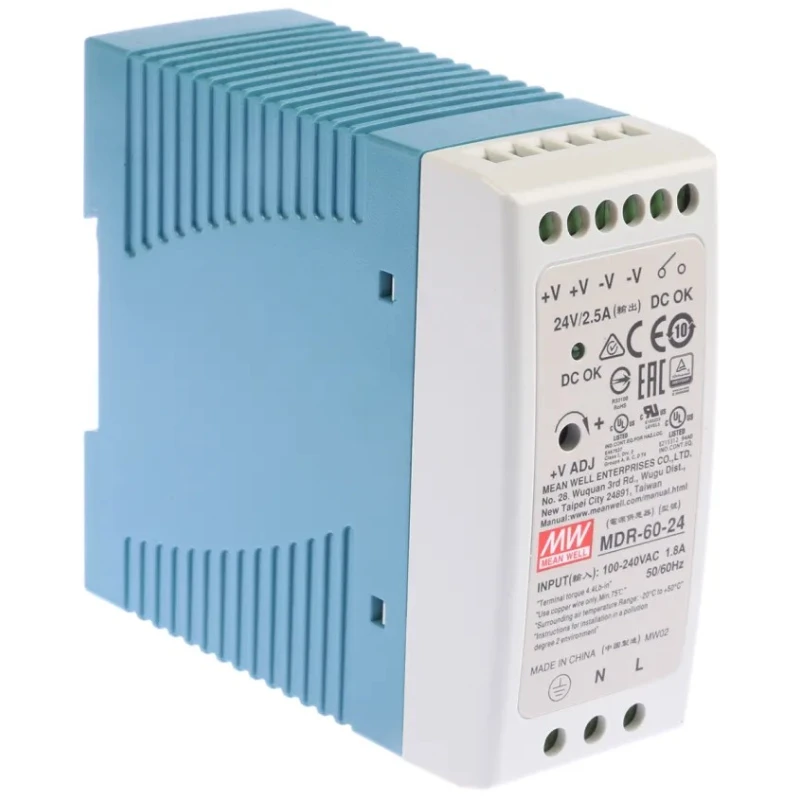

MEAN WELL MDR Series Switched Mode DIN Rail Power Supply 264V AC Input 30V DC, 2.5A Output 60W MDR-60-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 60W |
| Height | 100mm |
| Model | MDR-60-24 |
| Depth | 90mm |
| Width | 40mm |
| Series | MDR |
| Output Current | 2.5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | Group A, D, Class I Division 2, C, B |
| Standards/Approvals | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Output Voltage | 30V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC input supporting full range voltages.
- Provides overload, short circuit, and over voltage protections.
- Equipped with LED indicator and DC OK relay contact for status monitoring.
- Cooling by free air convection ensures reliable operation up to 70°C.
- Compact size suitable for installation on DIN Rail TS-35/7.5 or TS-35/15.
- Supports hazardous area certifications including Group A, D, Class I Division 2, C, B.
- Compliance with RoHS, TUV EN 60950-1, and UL 508 safety standards.
Product Description
MEAN WELL MDR-60-24 is a switched mode power supply designed for DIN rail mounting in industrial and commercial electrical control systems. It provides a stable 24 V DC output at 2.5 A with 60 W power rating, supplied from a wide-range AC input voltage of 85 V to 264 V. Its ultra-slim form factor (100mm height, 40mm width, 90mm depth) allows easy integration into compact control panels.
This power supply offers multiple protection features, including short circuit, overload, and overvoltage protection, ensuring system safety and durability. The unit operates through free air convection cooling without fans, maintaining reliability and minimal maintenance. The LED power indicator and DC OK relay contact enable easy status indication and monitoring.
The MDR-60-24 power supply conforms to recognized safety standards such as RoHS, TUV EN 60950-1, and UL 508, and carries hazardous area certifications suitable for installation in environments classified under Group A, D, Class I Division 2, C, and B.
Typical applications include industrial automation, instrumentation, building control systems, and electrical power distribution setups requiring robust and reliable DC power sources. Its compatibility with the standard DIN Rail TS-35/7.5 or TS-35/15 rails makes it versatile for various industrial electrical cabinets and control boxes.
Universal AC input with wide voltage range. Multiple protections: short circuit, overload, overvoltage. Cooling via free air convection for silent operation. LED power indication and DC OK relay contact for status. Compact slim design for efficient panel installation.
Certified for hazardous locations and safety compliance. Ideal for industrial power supply applications and control systems. Explore more MEAN WELL Power Supply solutions and related industrial electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24 V DC with an output current of 2.5 A, resulting in a power rating of 60 W.
The MDR-60-24 supports a wide AC input voltage range from 85 V to 264 V.
The unit has a compact size with dimensions of 100 mm in height, 40 mm in width, and 90 mm in depth.
It operates through free air convection cooling, ensuring silent operation without fans.
This power supply complies with RoHS, TUV EN 60950-1, and UL 508 safety standards, and is certified for hazardous areas including Group A, D, Class I Division 2, C, and B.
This model features a single output.
The maximum operating temperature for the MDR-60-24 is 70°C.
The minimum operating temperature for this power supply is -20°C.
It is typically used in industrial automation, instrumentation, building control systems, and electrical power distribution setups.
The MDR-60-24 operates on a single electrical phase.
It is equipped with an LED power indicator and a DC OK relay contact for easy status monitoring.
Yes, it is designed for installation on DIN Rail TS-35/7.5 or TS-35/15, making it versatile for various industrial electrical cabinets.
