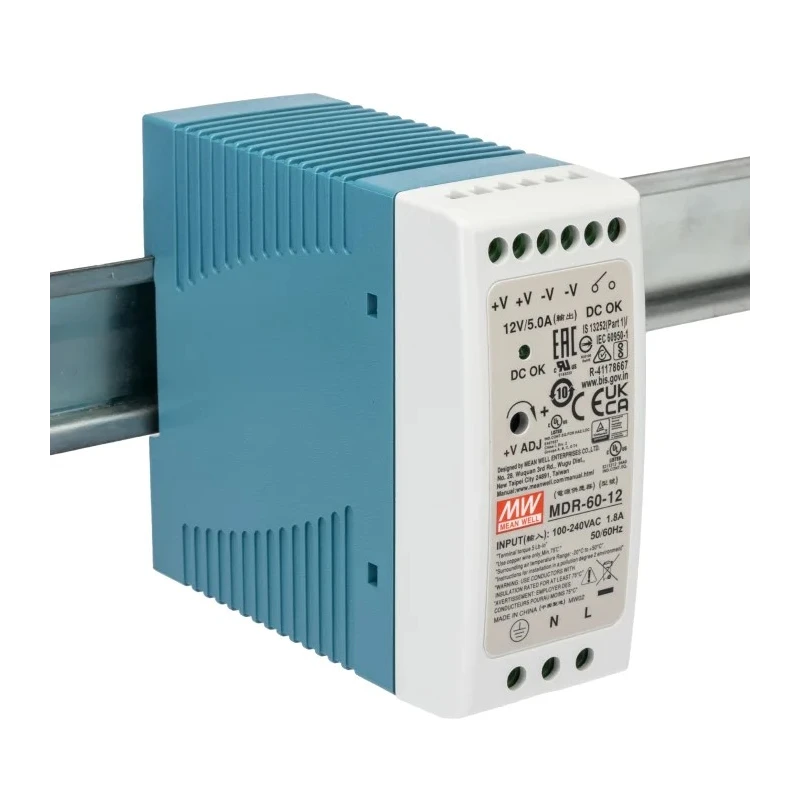

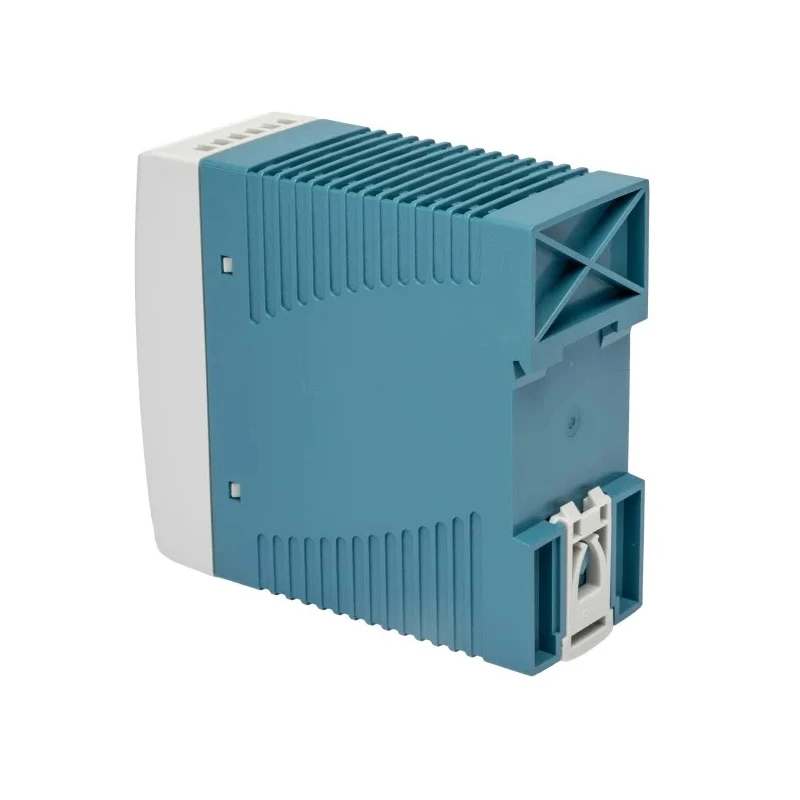

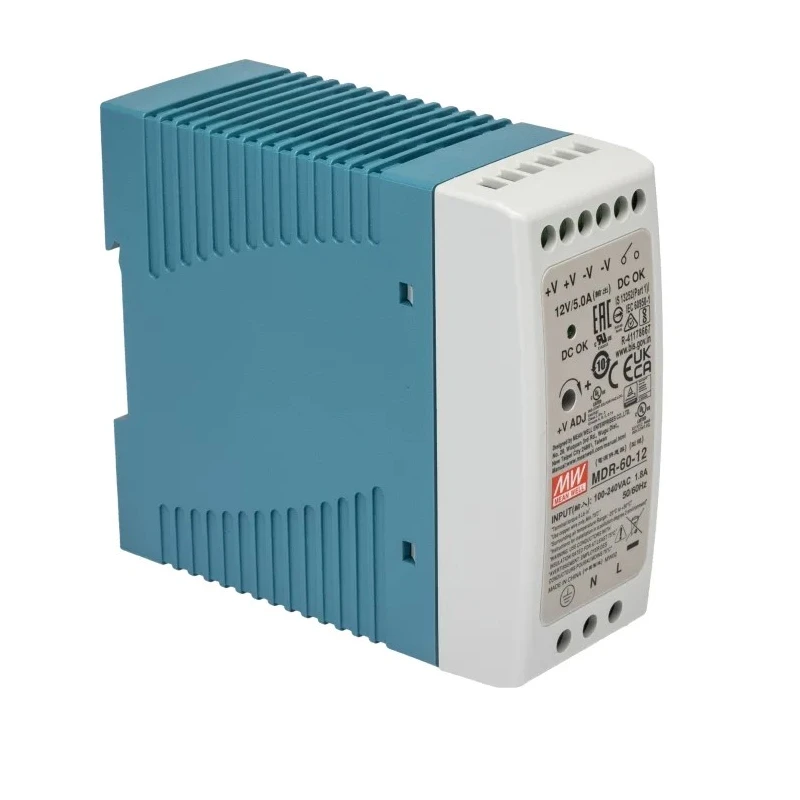

MEAN WELL MDR Switched Mode DIN Rail Power Supply AC 85-264V Input 15V DC 5A 60W MDR-60-12

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL MDR Switched Mode DIN Rail Power Supply AC 85-264V Input 15V DC 5A 60W MDR-60-12

Name: MEAN WELL MDR Switched Mode DIN Rail Power Supply AC 85-264V Input 15V DC 5A 60W MDR-60-12
Brand: MEAN WELL
SKU: 137364
Price: 43.21 USD
Availability: InStock



Category DIN Rail Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	60W
Height	100mm
Model	MDR-60-12
Depth	90mm
Width	40mm
Series	MDR
Output Current	5A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Hazardous Area Certification	C, B, Group A, D, Class I Division 2
Standards/Approvals	RoHS Compliant, TUV EN 60950-1, UL 508
Maximum Output Voltage	15V dc
Minimum Input Voltage	85V ac

Key Features

Provides universal AC input voltage range of 85-264V for flexible installation.
Single output with stable 15V DC voltage and 5A current output.
Features short circuit, overload, and over voltage protections for reliable operation.
Compact design with dimensions 100mm height, 40mm width, and 90mm depth fits standard DIN Rail TS-35/7.5 or 15 mounts.
Includes DC-OK relay contact and LED power-on indicator for operational status monitoring.
Operates effectively within temperature range of -20°C to 70°C.
Cooling achieved through free air convection eliminating the need for fans.
Certified compliant with RoHS, TUV EN 60950-1 and UL 508 standards ensuring safety and environmental compliance.

Product Description

MEAN WELL MDR-60-12 is a switched mode DIN Rail power supply designed for industrial, commercial, and electronic equipment requiring reliable power delivery. It supports a wide AC input voltage range from 85V to 264V, making it compatible with global power standards and ensuring stable operation under fluctuating power conditions.

This power supply offers a fixed output voltage of 15V DC at a maximum current of 5A, delivering a total power output of 60W. Its compact form factor allows installation on DIN Rail TS-35/7.5 or 15 rails, with dimensions of 100mm height, 40mm width, and 90mm depth. The unit includes safety features such as short circuit, overload, and over voltage protection, enhancing operational reliability and protecting connected devices.

Operational temperature range from -20°C up to 70°C allows deployment in harsh environments. The cooling method is based on free air convection, which reduces maintenance by eliminating moving parts like fans. The power supply also features a DC OK relay contact and LED indicator for clear power status signaling.

MEAN WELL MDR series products are compliant with RoHS directives, and have approvals including TUV EN 60950-1 and UL 508, making them suitable for industrial electrical applications requiring strict safety and environmental standards.

Universal AC input voltage with wide range support. Short circuit, overload, and over voltage protection included. Convection cooling for silent and maintenance-free operation. Compact slim design for convenient DIN Rail mounting.

Operational temperature range suitable for industrial settings. LED and relay contact indicators for operational monitoring. Compliant with RoHS and certified by TUV and UL standards.

This DIN Rail Power Supply is ideal for power solutions in industrial automation, electronic control cabinets, and industrial machinery power systems. For further products in this range, explore EnvMart’s Power Supply and Distribution categories.
