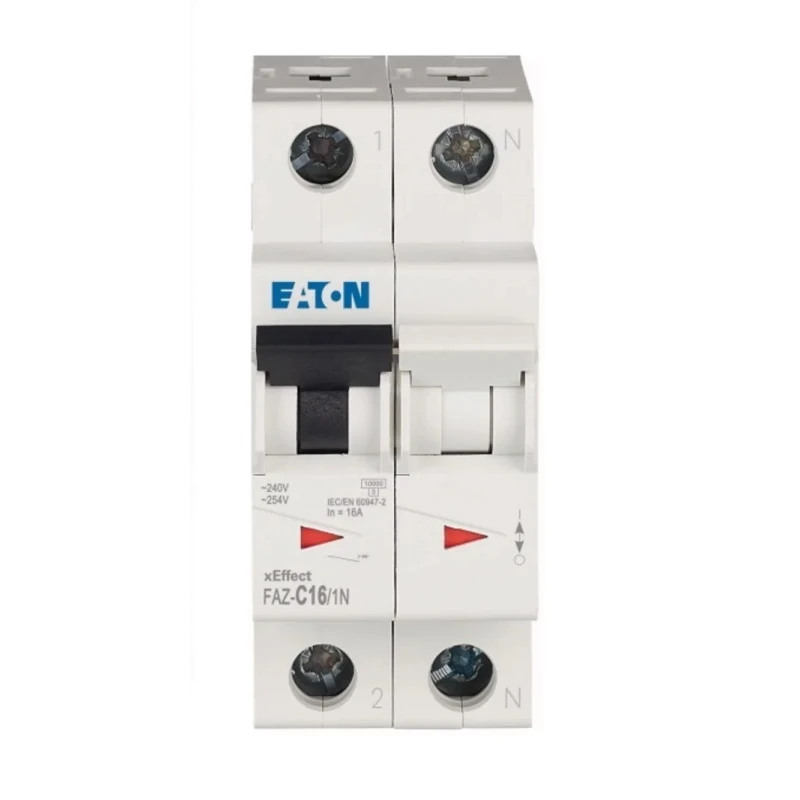

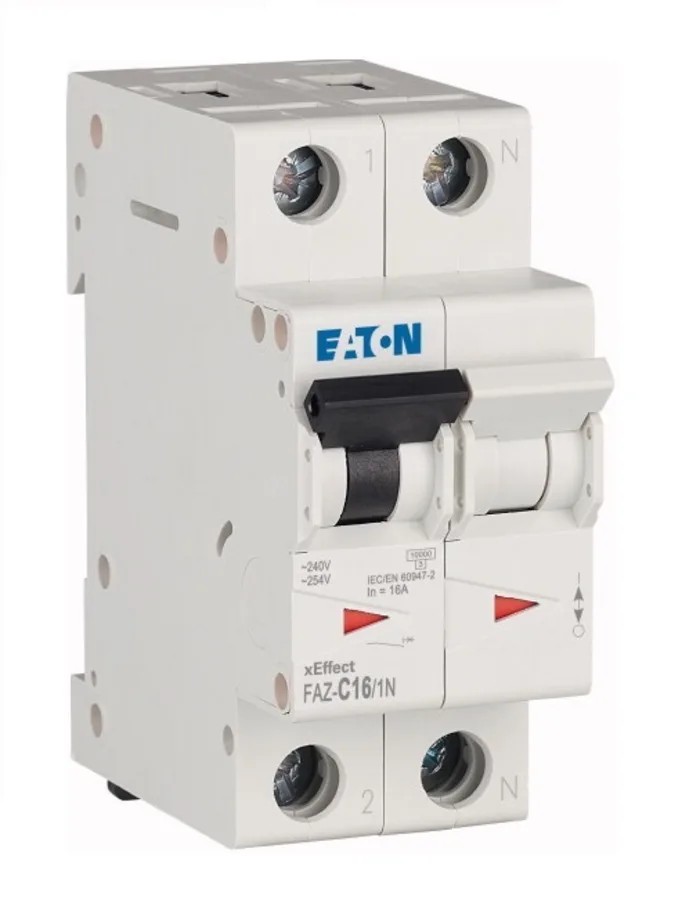

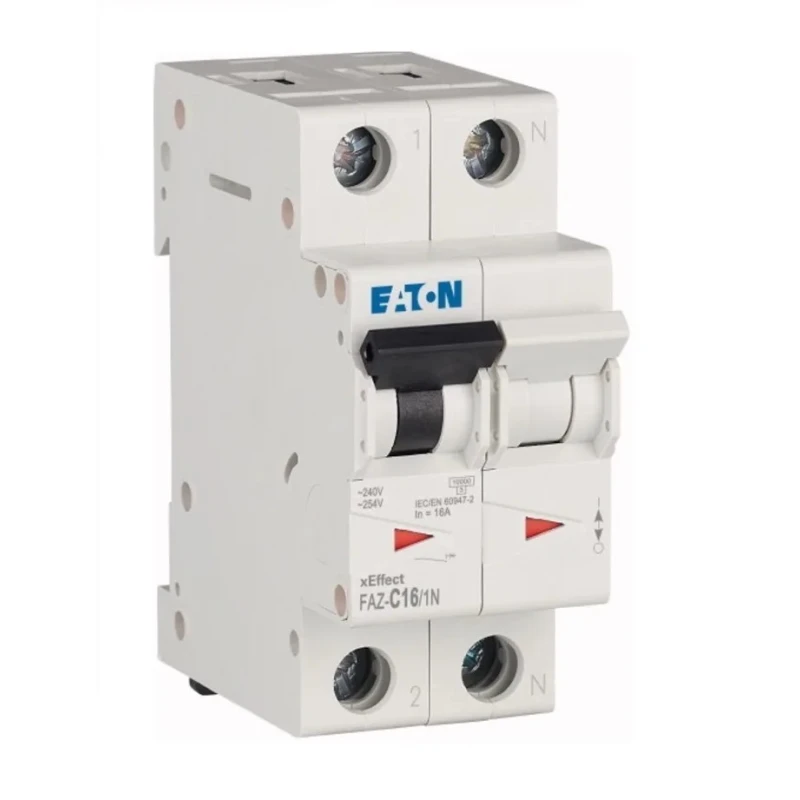

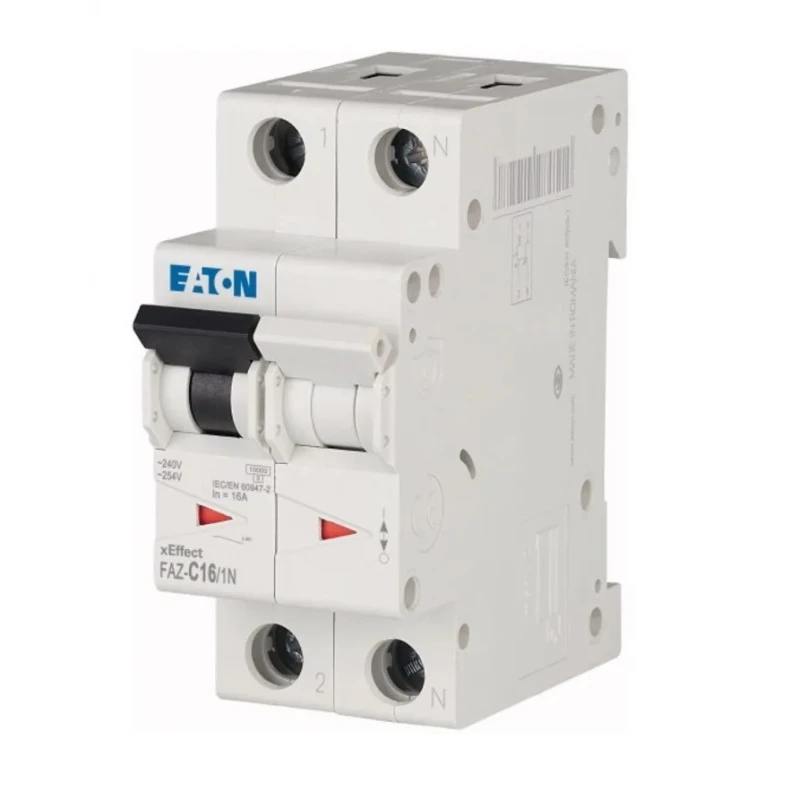

Eaton xEffect Miniature Circuit Breaker 1-Pole 16A Type C 240V AC 48V DC 10kA Breaking Capacity 278674 FAZ-C16/1N
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278674 FAZ-C16/1N |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 66mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed for single-phase circuit protection with thermal-magnetic tripping mechanism.
- Operates at 240V AC and 48V DC ratings for versatile applications.
- Type C tripping curve trips at 5 to 10 times rated current, ideal for surge-prone devices.
- Compact dimensions of 80mm depth and 66mm width suitable for limited space installations.
- Tool-free DIN rail mounting ensures quick and easy installation.
- Thermoplastic housing provides impact and heat resistance for durability.
- IP20 rating suitable for standard electrical environments.
- Red and green contact position indicators clearly show operational status.
Product Description
Eaton 278674 FAZ-C16/1N Miniature Circuit Breaker 1-Pole 16A Type C rated for 240V AC and 48V DC provides effective and reliable protection against short circuits and overcurrent conditions in electrical control and distribution systems.
This breaker incorporates a thermal-magnetic tripping mechanism designed specifically for single-phase circuits. The Type C tripping characteristic allows it to trip at 5 to 10 times the rated current, making it suitable for surge-prone equipment such as fluorescent lights and small motors.
Its compact size with a depth of 80mm and width of 66mm enables installation where space is limited. The breaker mounts easily on DIN rails without the need for tools, allowing fast deployment in switchgear and control panels.
The thermoplastic housing offers excellent resistance to impact and heat, ensuring long service life even in challenging industrial environments. It features red and green contact position indicators to provide clear status visibility during operation.
With an IP20 rating and wide temperature tolerance between -40°C and +75°C, this miniature circuit breaker is well suited for a broad range of industrial, commercial, and residential electrical applications.
The product dissipates minimal heat at 2.6 watts, contributing to overall energy efficiency. Designed for electrical circuit protection in industrial and commercial applications. Compact and robust, suitable for DIN rail mounting in switchgear.
Type C trip curve for motor and lighting circuit protection. Thermal magnetic trip mechanism enhances reliability and responsiveness. Suitable for use in harsh and varying temperature environments. Clear visual indicators facilitate maintenance and troubleshooting.
Energy-conscious design reduces heat loss during operation.
This Eaton miniature circuit breaker provides dependable protection for electrical installations, enhancing safety and system longevity. Explore more in the Electronics & Electricals > Circuit Breakers & Fuse > Miniature Circuit Breaker category on EnvMart for additional high-quality circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton xEffect Miniature Circuit Breaker has a current rating of 16A.
This circuit breaker has a breaking capacity of 10kA, providing effective protection against short circuits.
It operates at a rated AC voltage of 240V and a rated DC voltage of 48V.
This model features a thermal magnetic tripping mechanism, designed for reliable operation in single-phase circuits.
The dimensions are 80mm in depth and 66mm in width, making it suitable for installations in limited spaces.
It is designed for tool-free DIN rail mounting, allowing for quick and easy installation.
This unit has an IP20 rating, which is suitable for standard electrical environments.
It has a Type C tripping characteristic, which trips at 5 to 10 times the rated current, making it suitable for surge-prone devices.
This model uses screw-type terminals for secure connections.
It operates effectively within a temperature range of -40°C to +75°C, suitable for various environments.
It features red and green contact position indicators that clearly show the operational status.
This product is part of the FAZ series by Eaton.
