JST PHD Series Straight Through Hole Shrouded PCB Header, 20 Contacts, 2.0 mm Pitch, 2 Row, 3A, 250V B20B-PHDSS (LF)(SN)

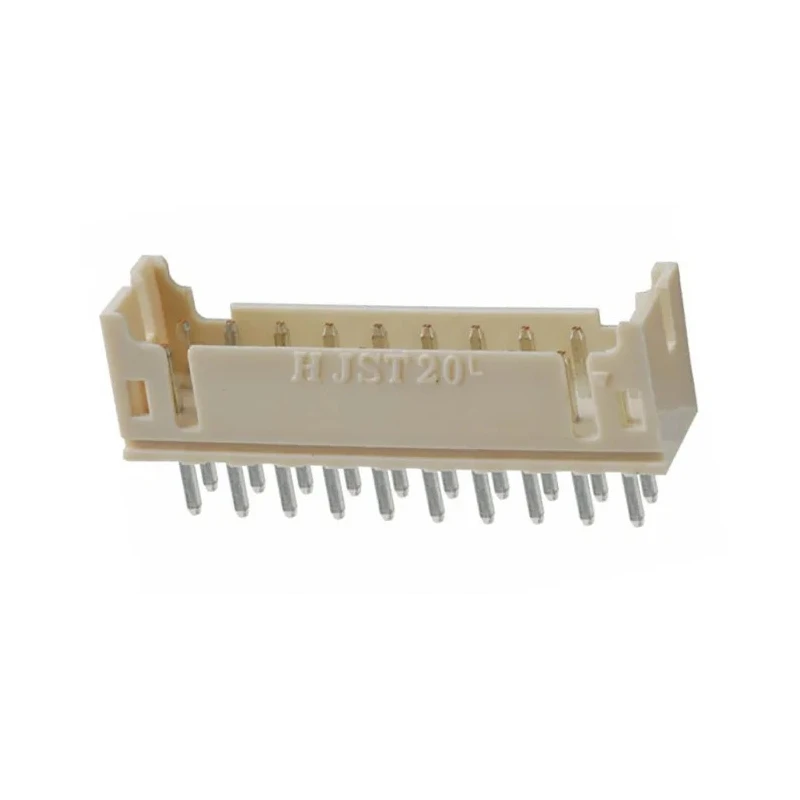

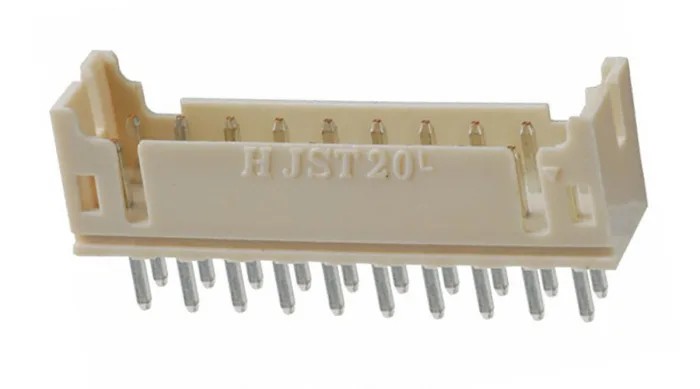

JST B20B-PHDSS (LF)(SN) is a part of the PHD Series of Straight Through Hole PCB Headers featuring a 2.0 mm pitch and 20 contacts arranged in 2 rows. This shrouded PCB header offers robust wire-to-board connection solutions designed to prevent incorrect mating and protect against flux and contaminant intrusion.

The connector system utilizes a polyamide housing coupled with copper alloy contacts plated with tin for enhanced electrical connectivity and mechanical durability. It supports a continuous current rating of 3 amperes and withstands voltages up to 250 volts, making it ideal for a wide range of electronic applications.

The male contact gender and solder termination type ensure strong and reliable solder joints suitable for through hole mounting on PCBs. Its operating temperature range from -25°C to 85°C enables use in challenging industrial environments. The low-profile design, with an 8.8 mm height after mating, caters to applications needing compact and high-density PCB layouts.

With a mating pin length of 2.9 mm and a row pitch of 2 mm, this connector provides precision and compatibility for standard 2.0 mm pitch PCB configurations. Manufactured in Malaysia, this JST connector embodies quality and reliability for electronic component assemblies.

The connector supports a current rating of 3 amperes and voltage up to 250 volts. Constructed with polyamide housing and copper alloy contact material for durability. Features a shrouded design to prevent incorrect mating and contaminant intrusion.

Operates reliably between -25°C and 85°C, suitable for diverse environments. Contact plating is tin, ensuring good conductivity and corrosion resistance. Solder termination type with male contact gender for wire-to-board connections.

Mating pin length is 2.9 mm, with a row pitch of 2 mm matching the 2 mm pitch. Compact low-profile design with 8.8 mm height after mating to meet high density PCB layout requirements. Manufactured in Malaysia, delivering consistent quality.

This JST PHD Series PCB Header is widely used in electronics manufacturing, industrial automation, telecommunications, computing, and other high-density PCB connector applications. It provides reliable electrical connections while maintaining mechanical integrity in demanding environments.
