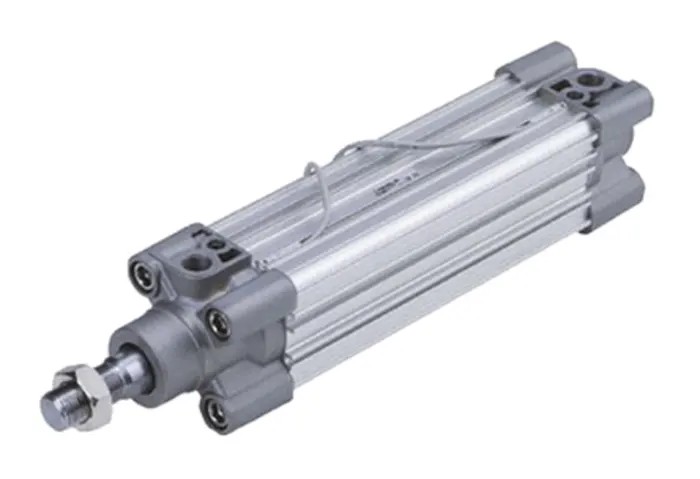

SMC 100 mm Pneumatic Piston Rod Cylinder Double Acting Basic Mount Aluminium Alloy Body CP96

Free Delivery in India | Lowest Global Shipping Charges

SMC 100 mm Pneumatic Piston Rod Cylinder Double Acting Basic Mount Aluminium Alloy Body CP96



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Length	318mm
Model	CP96
Mount Type	Basic
Series	CP96
Maximum Operating Temperature	+70°C
Stroke Length	100mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	4414
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M20 x 1.5

Key Features

Double acting cylinder enables controlled bidirectional force.
Basic mount type for straightforward installation in automation systems.
Aluminium alloy body offers reduced mass and corrosion resistance.
100 mm stroke length suits short-travel positioning tasks.
Air cushioning reduces shock at end-of-stroke for durability.
Single male piston rod with M20 x 1.5 metric thread for secure mounting.
Maximum piston speed of 1000 mm/s supports high-speed operation.
Operates reliably up to +70°C maximum temperature.

Product Description

SMC CP96 100 mm Pneumatic Piston Rod Cylinder is a high-performance double acting pneumatic actuator designed for precise linear motion control in industrial automation and manufacturing processes. Featuring a lightweight aluminium alloy body with a compact 318 mm length and a 100 mm stroke, this cylinder balances strength with dynamic responsiveness.

The double acting configuration applies force in both extension and retraction, enabling bidirectional motion required for pick-and-place operations, assembly lines, and clamp/release functions. The cylinder incorporates an air cushion design to minimize end-of-stroke shock, enhancing durability and operational smoothness during high-frequency cycling.

The piston rod is single type, male gender, fitted with an M20 x 1.5 metric thread, ensuring compatibility with threaded connectors and clevis fittings for versatile mounting and tooling attachments. The basic mount type simplifies integration into existing frames or fixtures without specialized brackets.

With a maximum piston speed of 1000 mm/s and an operating temperature range up to +70°C, this unit performs reliably in typical indoor industrial environments. Compliance with ISO 15552 standards ensures interchangeability and compatibility with industry tooling and pneumatic systems.

This cylinder is ideal for use in electrical cabinet panel mechanisms, end-of-arm tooling in assembly machinery, and other pneumatic actuation tasks demanding compact size, high speed, and durability. Its aluminium alloy construction reduces weight while providing corrosion resistance, fitting dynamic automated systems.

Double acting pneumatic operation for precise bidirectional motion. Basic mount configuration for easy installation. Lightweight aluminium alloy body construction. 100 mm stroke length for short-travel applications. Air cushion cushioning reduces mechanical shock.

M20 x 1.5 male piston rod thread for flexible attachments. Maximum piston speed of 1000 mm/s for rapid cycling. Operating temperature up to +70°C suitable for indoor use. ISO 15552 standard compliance for interchangeability.

Applications include automation, assembly, clamping, and panel actuation. Explore the full range of Pneumatic Piston Rod Cylinders at EnvMart for reliable industrial automation components.
