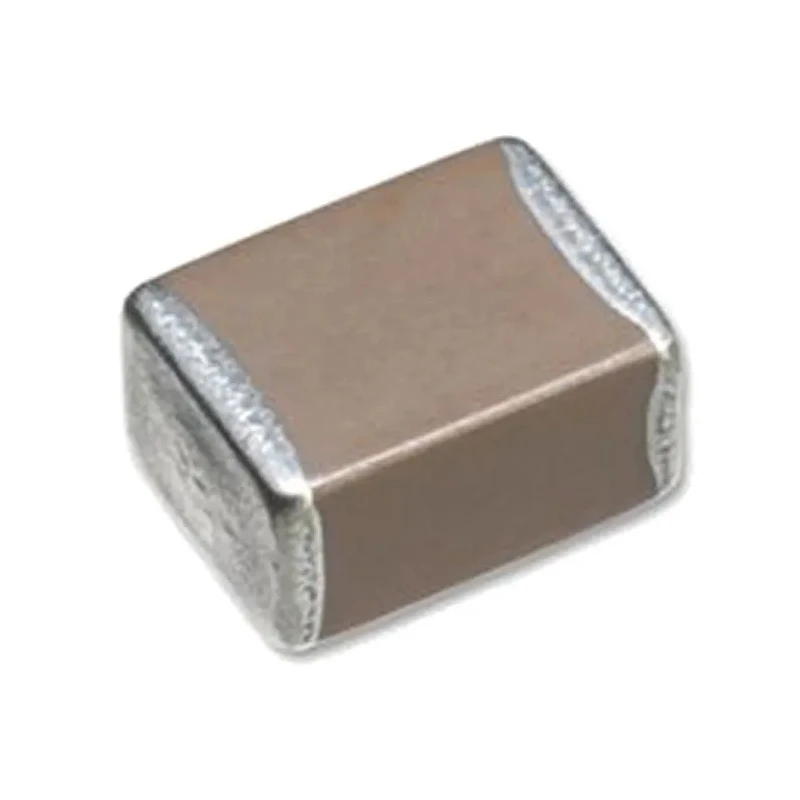

TDK 220 pF Multilayer Ceramic Capacitor 3kV DC ±10% Surface Mount 1812 C Series C4532C0G3F221K200KA

TDK C4532C0G3F221K200KA is a high-quality 220 pF Multilayer Ceramic Capacitor rated at 3kV DC voltage with a ±10% capacitance tolerance. This surface mount device features a stable C0G dielectric, providing excellent mechanical strength and reliability through its monolithic multilayer construction.

The capacitor utilizes a standard 1812 package with precise dimensions of 4.5 mm length, 2 mm width, and 2 mm height, enabling its use in compact electronic applications. It operates reliably within a temperature range of -55°C to 125°C, ideal for industrial electronic designs.

Packaged on tape and reel, it supports efficient automated insertion and mounting processes. Key use cases include LAN cards, high voltage circuit design, and noise bypass filtering in power supply units, where performance stability and low losses are critical.

This capacitor exhibits very low equivalent series inductance (ESL), high ripple current durability, and is well-suited for surface mount technology (SMT) assembly lines requiring consistent quality components.

This capacitor uses a C0G dielectric for superior stability and low loss performance. It is built in a compact 1812 package size measuring 4.5 mm length, 2 mm width, and 2 mm height. Suitable for reliable high voltage operation up to 3kV DC with a maximum operating temperature of 125°C.

Tape and reel packaging ensures automated assembly compatibility and production efficiency. Designed for applications such as LAN cards, noise bypass in power supplies, and high voltage circuits. Offers low equivalent series inductance (ESL) and high ripple current tolerance.

This capacitor is a reliable choice for industrial, manufacturing, electronics design, and telecommunications applications requiring high dielectric stability and voltage endurance.
