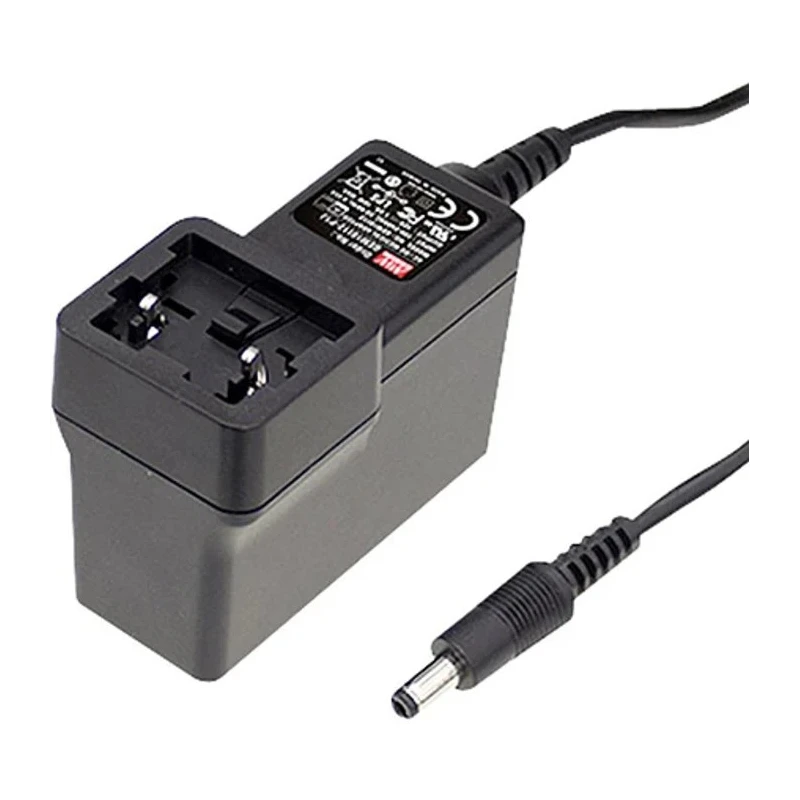

MEAN WELL GEM30I05-P1J AC/DC Adapter Australia, EU, UK, US 100-264V AC Input 4A Maximum Output Current 5V DC Output
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Model | GEM30I05-P1J |
| Cable Length | 1m |
| Overall Length | 39.1mm |
| EMC Immunity | Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A |
| Series | GEM30I |
| Overall Width | 75.5mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Australia, EU, UK, US |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 4A |
| Standards/Approvals | CE, UL 60950-1, IEC 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 56.2mm |
| Minimum Output Voltage | 5V dc |
| Input Connector Type | Universal Plug |
| EMC Emission | Compliance to EN55011 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B |
| MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V ac Output 5 A, 5 V dcBrand | MEAN WELL |
Key Features
- It operates within an input voltage range of 100V to 264V AC.
- The device features high operating temperature tolerance up to 70°C.
- Constructed with flame retardant 94V-0 plastic casing for enhanced safety.
- Certified to CE, UL 60950-1, IEC 60950-1 safety standards.
- Provides medical safety with 2 x MOPP approvals suitable for medical applications.
- Includes industry standard protections against short circuit, overload, and over voltage conditions.
- Compact design supports easy portability and plug interchangeability.
- Low no-load power consumption below 0.1 W maximizes energy efficiency.
Product Description
MEAN WELL GEM30I05-P1J AC/DC Adapter is a globally compatible plug-in power supply designed for medical and industrial applications requiring reliable 5V DC output with a maximum current of 4A. Supporting input voltages from 100V AC up to 264V AC, it accommodates electrical standards in Australia, Europe, the UK, and the US with interchangeable plugs.
Encased in a flame retardant 94V-0 plastic housing, the adapter ensures user safety and durability. Its compact dimensions - Overall Length 39.1mm, Width 75.5mm, and Depth 56.2mm - facilitate portability while maintaining robust performance.
The device meets stringent safety approvals including CE, UL 60950-1, IEC 60950-1, ANSI/AAMI ES60601-1, and TUV EN60601-1, endorsing its suitability for medical environments. Additional certifications for electromagnetic compatibility cover EN55011 Class B emissions and EN61000 immunity standards.
Designed for medical devices such as blood glucose meters, inhalers, and portable monitoring equipment, the GEM series provides 2 x MOPP protection levels ensuring electrical isolation and patient safety. Efficiency ratings reach up to 90.5%, significantly reducing energy consumption and operational costs.
Supports multiple interchangeable AC plug types for global compatibility: European, UK, US, Australian plugs. Wide input voltage range between 100V to 264V AC for versatile power environments. Medical grade safety with comprehensive protection features including leakage current below 100 μA.
High temperature tolerance up to 70°C ensuring reliability in demanding conditions. Compact and lightweight design enabling ease of transportation and installation. Includes short circuit, overload, and over voltage protection to prevent damage.
Meets Level VI energy efficiency standards, reducing environmental impact. Flame retardant casing enhances user safety and device lifespan. Low standby power consumption below 0.1 W ensuring energy savings during idle periods.
For industrial, laboratory, medical, and commercial applications requiring consistent and safe DC power, the MEAN WELL GEM30I05-P1J adapter is an efficient and trusted solution. Explore related products and detailed documentation in the EnvMart AC/DC Adapters category to find compatible power supplies tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adapter operates within an input voltage range of 100V to 264V AC.
It provides a maximum output current of 4A.
The overall dimensions are 39.1mm in length, 75.5mm in width, and 56.2mm in depth.
This model supports interchangeable plug types for Australia, EU, UK, and US.
It is certified to CE, UL 60950-1, IEC 60950-1, ANSI/AAMI ES60601-1, and TUV EN60601-1 standards.
The efficiency ratings reach up to 90.5%, contributing to reduced energy consumption.
The maximum operating temperature is 70°C.
It includes protections against short circuit, overload, and over voltage conditions.
The adapter comes with a cable length of 1 meter.
It complies with EN55011 Class B emissions and EN61000 immunity standards.
The country of origin for this adapter is Taiwan.
