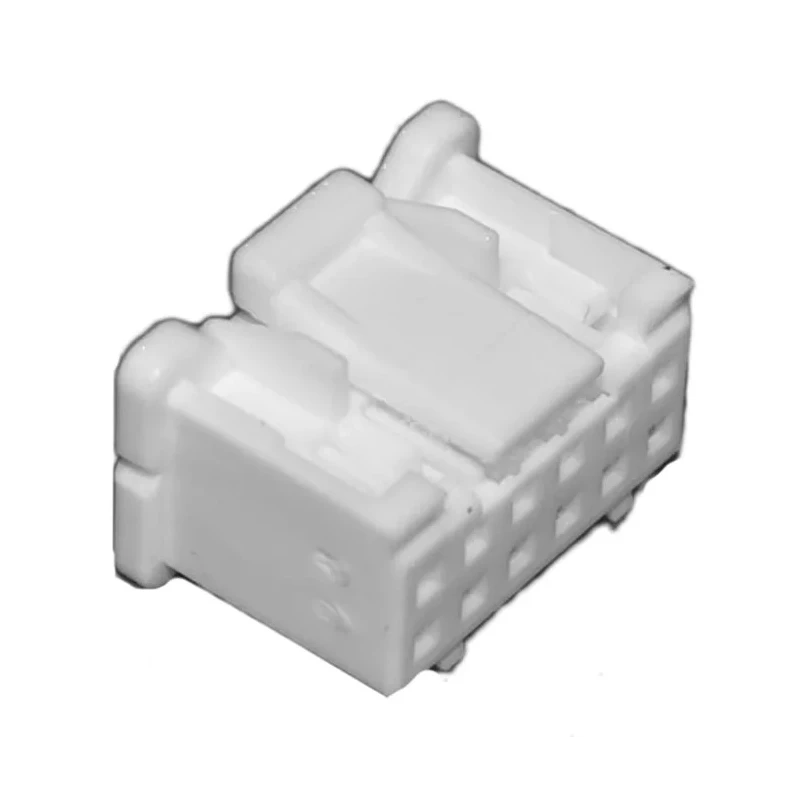

JST PUD Female Connector Housing 2 mm Pitch 12 Way 2 Row Straight PUDP-12V-S

JST PUDP-12V-S female connector housing offers a robust and reliable solution for wire-to-board connection applications. This connector features a 2 mm pitch spacing with a 12 way, 2 row straight layout suitable for compact PCB mounting. Constructed from high-quality polybutylene terephthalate, it ensures durability and long-lasting performance in demanding industrial environments.

The double row design increases contact density, enabling efficient use of PCB space without compromising electrical integrity. This housing is engineered to mate precisely with the PUD series connectors, providing secure and low insertion force connections aided by keying features that produce an audible click to confirm proper engagement.

Measuring 14 mm in length and 8.3 mm in width, the housing accommodates 12 contacts arranged methodically to support complex wiring needs. The connector's straight orientation simplifies installation and maintenance, making it suitable for manufacturing, industrial machinery, electronic components assembly, and prototyping setups.

These connectors are manufactured in Japan, upholding high-quality manufacturing standards and ensuring compliance within electronic assembly supply chains. Note that crimp socket contacts are sold separately to allow customized wiring solutions based on specific application requirements.

The JST PUDP-12V-S connector housing is a fundamental component for applications requiring dependable electrical connections, including electronics manufacturing, industrial automation, instrumentation, and other high-performance electrical systems.

The connector housing features a high-density double row design for efficient space usage. It is made of durable polybutylene terephthalate material ensuring long-term reliability. Designed with 12 contacts organized in 2 rows for precise connection needs.

Offers straight orientation for straightforward and secure PCB integration. Compatible with PUD series connectors and requires separately purchased crimp socket contacts. Length of the housing is 14 mm and width is 8.3 mm, ensuring compact footprint.

The connector features keying for accurate mating, indicated by an audible click. Manufactured in Japan, assuring quality and adherence to standards. Ideal for electronic, industrial, and manufacturing applications needing reliable wire-to-board connections.
