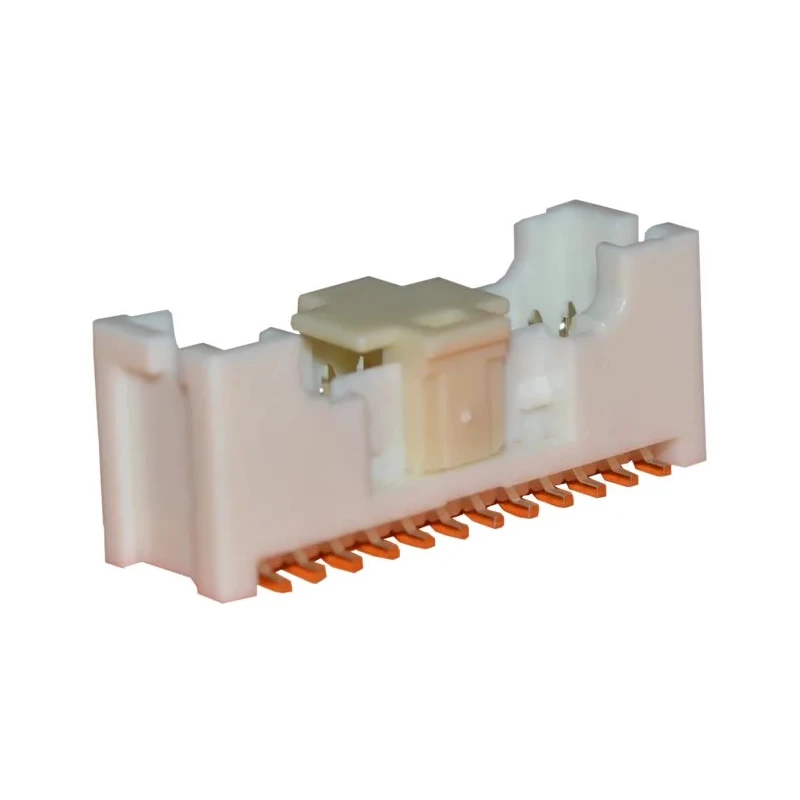

JST PUD Series Straight Surface PCB Header 24 Contacts 2 mm Pitch 2 Row Shrouded BM24B-PUDSS-TFC(LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | BM24B-PUDSS-TFC(LF)(SN) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | PUD |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector has a polyamide housing ensuring durability and resistance.
- It is shrouded and includes a locking mechanism for secure mating and audible confirmation.
- Rated for 3 A current and 250 V voltage, suitable for low voltage applications.
- Contact plating is tin over a copper alloy for corrosion resistance and conductivity.
- Operating temperature range is from -25°C to 85°C, enabling use in varied environments.
- The termination type is solder, designed for surface mount PCB assembly.
- Offers a compact, high-density double-row layout for space-saving designs.
- Manufactured in Japan, ensuring high-quality standards.
Product Description
The JST BM24B-PUDSS-TFC(LF)(SN) is a PUD Series straight surface mount PCB header connector designed for wire-to-board applications. With a pitch of 2 mm, 24 male contacts arranged in two rows, and a shrouded design, this connector is built to deliver stable and reliable electrical connections in environments subject to vibration.
Its polyamide housing offers excellent durability and thermal resistance, supporting a temperature range from -25°C to 85°C. The tin-plated copper alloy contacts provide superior conductivity and corrosion resistance, while the locking mechanism ensures secure mating with an audible click to confirm connection integrity.
This PCB Header supports a current rating of 3 A and a voltage rating of 250 V, making it suitable for a variety of electronic component assemblies requiring compact and robust connectors.
The product is surface mount type with solder termination, facilitating efficient PCB manufacturing processes. The high-density double-row configuration optimizes PCB real estate while maintaining mechanical stability.
Manufactured in Japan, this connector aligns with rigorous quality standards suitable for industrial, electronics manufacturing, telecommunications, and laboratory instrumentation uses. It supports applications demanding reliable wire-to-board linkages under challenging conditions.
The connector housing is made from durable polyamide material. Features a secure locking mechanism for reliable connections. Operating temps range from -25°C to 85°C to suit varied environments. Rated 3 A current and 250 V voltage for typical electronics use.
Contact material is copper alloy with tin plating for conductivity. Surface mount solder termination type for standardized PCB assembly. Compact double-row design saves space on circuit boards. Manufactured in Japan ensuring quality and reliability.
Explore further JST electronics connectors and components on EnvMart to meet diverse technical project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3 A and a voltage of 250 V, making it suitable for low voltage applications.
This model features a pitch of 2 mm and has 24 male contacts arranged in two rows.
The housing is made from polyamide, which offers durability and thermal resistance.
It uses a solder termination type, designed for surface mount PCB assembly.
The operating temperature range is from -25°C to 85°C, allowing for use in varied environments.
Yes, it includes a locking mechanism that provides secure mating and an audible confirmation of connection.
The contacts are made from a copper alloy and are tin plated for enhanced conductivity and corrosion resistance.
The orientation of this connector is straight, designed for easy integration into PCB layouts.
Yes, it is designed specifically for wire-to-board applications, ensuring stable and reliable electrical connections.
The shrouded design helps to protect the contacts from accidental damage and ensures proper alignment during mating.
This connector is manufactured in Japan, ensuring adherence to high-quality standards.
It belongs to the PUD series, which is known for its compact and high-density connector designs.
