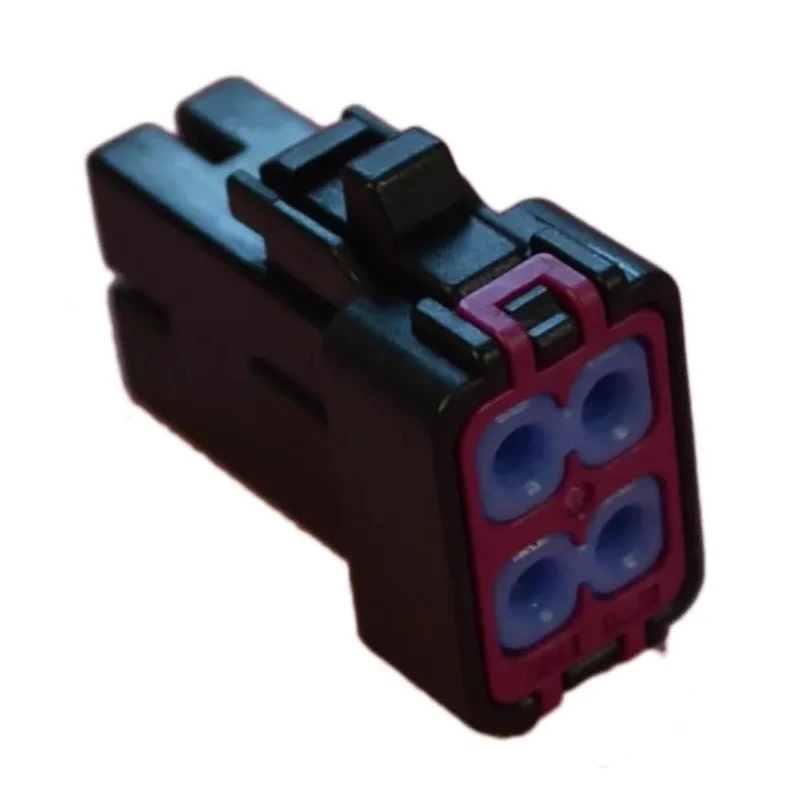

JST JWPS Female Connector Housing, 4 mm Pitch, 4 Way, 2 Row Straight 04R-JWPS-VKLE-DX-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 20mm |
| Model | 04R-JWPS-VKLE-DX-A |
| Width | 11mm |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | JWPS |
| Number of Rows | 2 |
| Pitch | 4mm |
| For Use With | JWPS Series Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- This connector housing is designed for wire-to-wire applications requiring waterproof and dust protection.
- It features a straight orientation and is compatible with JWPS series connectors.
- Constructed with fibreglass reinforced polybutylene terephthalate for durability.
- Includes a silicon rubber sealing ring providing IP67-rated protection against moisture and dirt.
- Ideal for automotive, photovoltaic, and underwater equipment use.
- Features positive locking squeeze to release mechanism to ensure secure mating.
- Connector gender is female with cable mount type.
- Series JWPS ensures keying and color coding to prevent mis-mating.
Product Description
JST 04R-JWPS-VKLE-DX-A is a female connector housing from the JWPS series, designed with 4 mm pitch and arranged with 4 contacts in 2 rows. This straight orientation cable mount connector housing is built to deliver waterproof protection with IP67-grade ingress resistance, suitable for demanding industrial and automotive applications.
The housing material is fibreglass reinforced polybutylene terephthalate, providing strong resistance against environmental stresses. It features a silicon rubber sealing ring on the mating side to safeguard against moisture, dirt, and mechanical abrasion, complemented by a solid rubber seal for wire-side protection.
This connector housing supports JWPS series connectors and is ideal for wire-to-wire connections where waterproofing is critical, such as in automotive wiring harnesses, photovoltaic systems, and underwater devices like cameras. The design includes keying and color coding to ensure correct mating, while the positive locking squeeze-to-release mechanism prevents contact damage and backing out.
Technical attributes include a length of 20 mm and width of 11 mm, making it compact for versatile integration. The connector uses a cable mount for easy installation and accommodates 4 contacts arranged in two rows, providing reliable electrical connections.
Waterproof design with IP67-rated silicon rubber sealing ring. Durable fibreglass reinforced polybutylene terephthalate housing material. Positive locking mechanism ensures secure connector mating. Keying and color coding prevent mis-mating of connectors.
Suitable for automotive, photovoltaic, and underwater applications. Compact size allows installation in constrained spaces. Compatible with JWPS series connectors for versatile use. Female connector gender designed for cable mounting.
4 contacts arranged in 2 rows for reliable electrical connection.
This JST JWPS female connector housing is a robust and waterproof solution for industrial and commercial electronic wiring applications. Browse related Connector Housings and electronics components on EnvMart for comprehensive wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 4 mm pitch and accommodates 4 contacts arranged in 2 rows.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing durability and resistance to environmental stresses.
This model has a female connector gender designed for cable mounting applications.
It has an IP67 rating, providing protection against moisture and dust.
The dimensions of this connector housing are 20 mm in length and 11 mm in width.
This housing is compatible with JWPS series connectors, ensuring keying and color coding to prevent mis-mating.
It is ideal for automotive wiring harnesses, photovoltaic systems, and underwater devices due to its waterproof design.
The positive locking squeeze-to-release mechanism ensures secure mating and prevents contact damage and backing out.
This connector housing uses a cable mount type for easy installation.
It includes a silicon rubber sealing ring on the mating side, which contributes to its IP67-rated waterproof protection.
The country of origin for this connector housing is India.
This connector housing is designed with a straight orientation.
