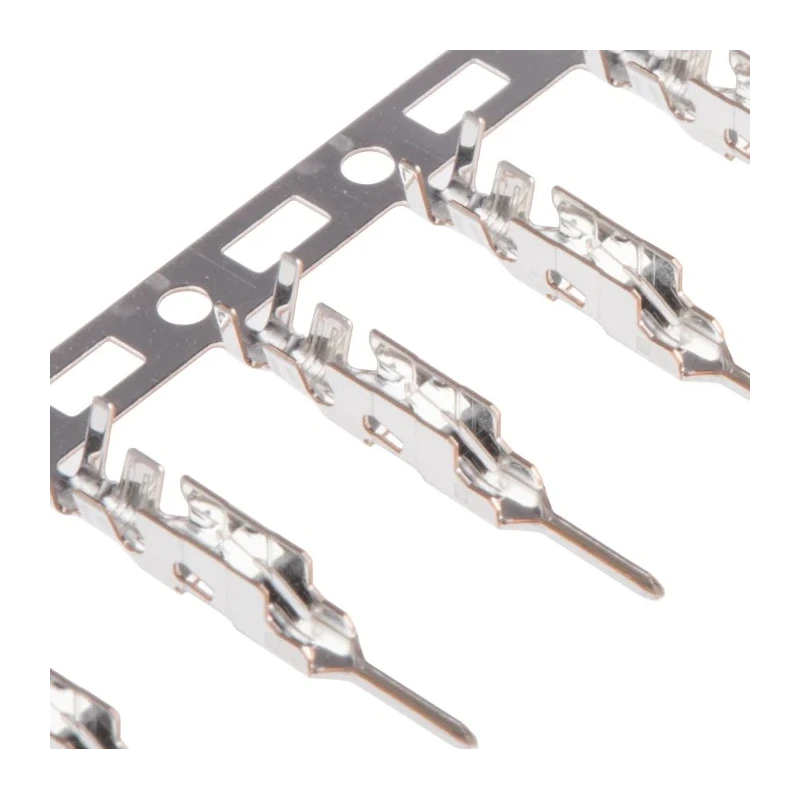

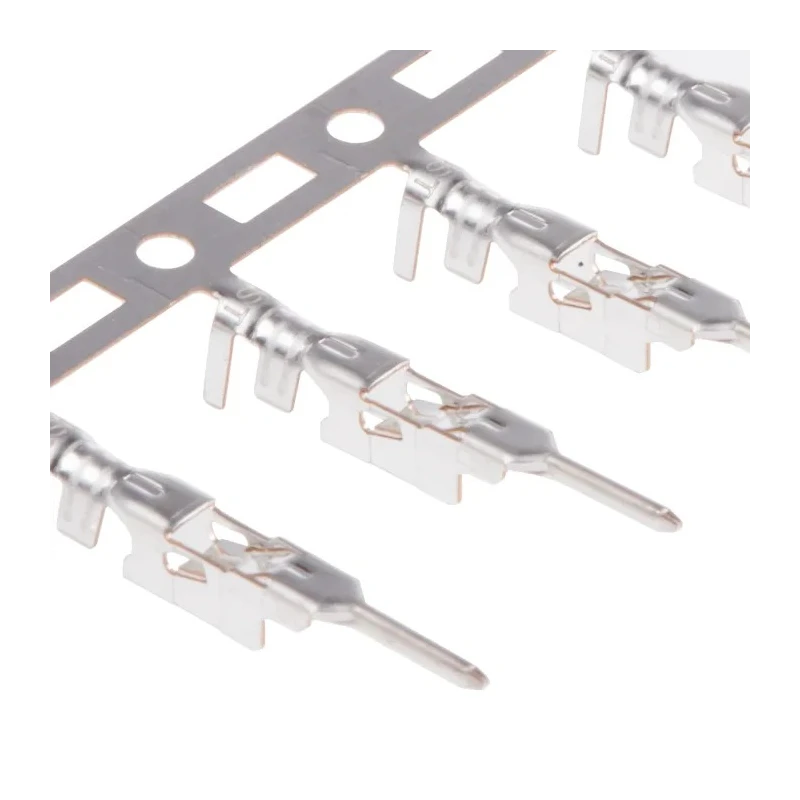

JST XA Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max SXAM-01T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XA Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max SXAM-01T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	3A
Model	SXAM-01T-P0.6
Gender	Male
Contact Material	Phosphor Bronze
Series	XA
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-25°C
For Use With	XA, XAD and XAG Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating for durable and consistent electrical connections.
Suitable for use with XA, XAD, and XAG connector housings.
Supports a maximum current rating of 3 amps.
Features a crimp termination type ensuring secure wire attachment.
Operates reliably within -25°C to 105°C temperature range.
Maximum contact resistance is 20 milliohms ensuring low resistance contacts.
Designed for male gender contact configurations.

Product Description

JST SXAM-01T-P0.6 Male Crimp Terminal from the XA series is engineered for industrial and electronic applications requiring precise, durable, and reliable wire connections within 24 AWG to 20 AWG wire sizes. This crimp terminal is made from high-quality phosphor bronze with a tin plating that enhances durability and ensures consistent electrical conductivity.

Designed specifically for compatibility with XA, XAD, and XAG connector housings, it supports a maximum current of 3A, making it suitable for various low-voltage and signal wire harnesses. The crimp termination type secures the wire firmly, preventing loosening caused by vibration or mechanical stresses.

Operating within a temperature range from -25°C to 105°C, this terminal delivers dependable performance in diverse environmental conditions. Its maximum contact resistance of 20 milliohms guarantees efficient current flow with minimal energy loss.

The JST XA series crimp pins and receptacle contacts are widely used in electrical and electronic manufacturing industries, including industrial automation, instrumentation, and communications equipment. The male crimp terminal configuration allows for easy mating with corresponding female contacts to achieve robust wire-to-wire or wire-to-board connections.

Constructed from phosphor bronze with tin plating for high durability and conductivity. Compatible with XA, XAD, and XAG connector housings. Supports current rating of 3 amperes for electrical applications. Reliable crimp termination type for secure wire connections.

Wide operating temperature range suitable for varied environments. Low maximum contact resistance of 20 milliohms ensures performance efficiency. Male contact gender type for versatile connector interfaces. The crimp terminal is manufactured in Malaysia and meets robust industrial quality standards, although it does not come with specific certification approvals.

Explore more JST XA series Crimp Contacts and connectors to complete your wiring assemblies through EnvMart’s extensive catalog.
