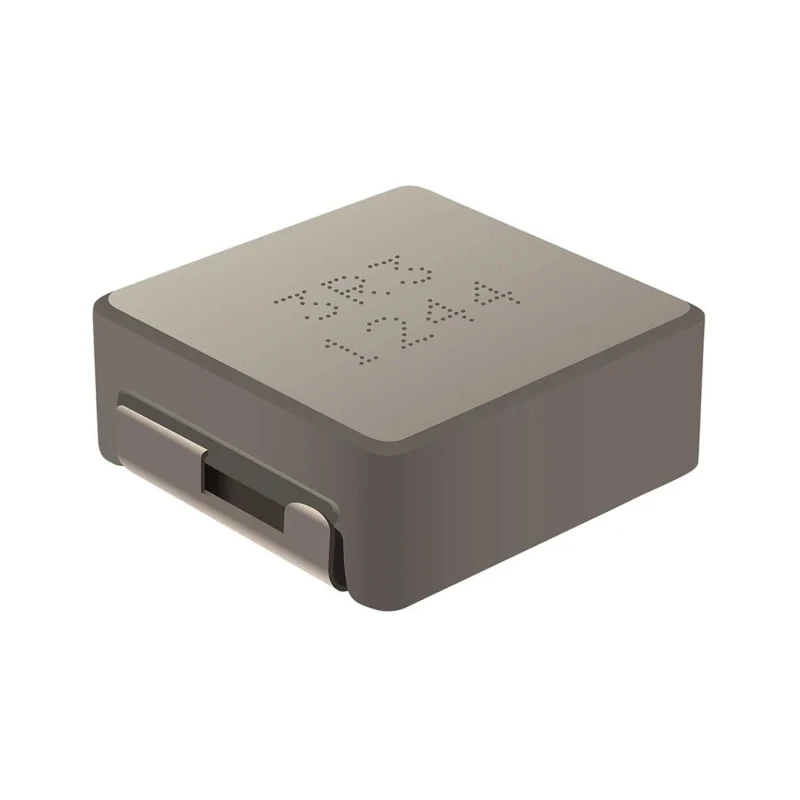

Bourns 1770 Shielded Wirewound Surface Mount Inductor with Carbonyl Powder Core 100 μH ±20% 5.3A Idc SRP1770TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 16.9mm |
| Length | 17.3mm |
| Model | SRP1770TA |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | SRP1770TA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 1770 |
| Maximum DC Current | 5.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 118mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a carbonyl powder core for high saturation current capacity.
- Features shielded construction to minimize magnetic radiation interference.
- AEC-Q200 qualified, suitable for automotive and industrial applications.
- Operating temperature range from -40°C to 150°C ensures reliability in harsh environments.
- Compact size with package 1770, length 17.3 mm, height 16.9 mm, and depth 6.7 mm.
- Has a maximum DC resistance of 118 mΩ and a minimum quality factor of 20.
- Designed for solder termination and supplied in reels for efficient manufacturing integration.
- Capable of operating up to a maximum self resonant frequency of 2 MHz.
Product Description
Bourns SRP1770TA shielded wirewound surface mount inductor with carbonyl powder core, model SRP1770TA, provides 100 μH ±20% inductance and supports a maximum DC current of 5.3 A. It is engineered for automotive and industrial electronic systems requiring robust performance.
The inductor's carbonyl powder core ensures high saturation current capability combined with shielded construction to reduce magnetic emissions, ideal for sensitive electronic circuitry. It is AEC-Q200 qualified, meeting stringent automotive industry standards.
This surface mount inductor has a compact 1770 package size with dimensions including 17.3 mm length, 16.9 mm height, and 6.7 mm depth, designed for high-density PCBs.
Operating ranges from -40°C to 150°C enable reliable performance under extreme temperature conditions. The component features solder termination style and is molded for durability.
The maximum DC resistance of 118 mΩ and a minimum quality factor of 20 indicate efficient electrical performance. The device supports frequencies up to 2 MHz, suitable for various power supply and DC/DC converter applications.
Constructed with a carbonyl powder core for enhanced current capabilities. Shielded design reduces electromagnetic interference in circuits. AEC-Q200 compliant, ideal for automotive systems including driver assistance and lighting information systems.
Compact 1770 package facilitates space-saving PCB layouts. Wide operating temperature range for versatile application environments. High saturation current and low DC resistance to optimize efficiency. Self resonant frequency supports modern electronic design requirements.
Supplied on reel packaging for automation-friendly assembly.
This Bourns surface mount inductor is ideal for industrial, automotive, electronics manufacturing, power supplies, and DC/DC converter applications. When selecting inductors for sensitive electronic circuits requiring low noise and high reliability, this model delivers proven performance.
Explore a comprehensive assortment of Surface Mount Inductors and related components on EnvMart to meet your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRP1770TA inductor provides an inductance value of 100 μH with a tolerance of ±20%.
This model supports a maximum DC current of 5.3 A.
The operating temperature range for the SRP1770TA inductor is from -40°C to 150°C.
The dimensions of this inductor are 17.3 mm in length, 16.9 mm in height, and 6.7 mm in depth.
The SRP1770TA inductor is constructed with a carbonyl powder core.
The maximum self-resonant frequency of this inductor is 2 MHz.
Yes, the SRP1770TA inductor is AEC-Q200 qualified, making it suitable for automotive applications.
The maximum DC resistance of the SRP1770TA inductor is 118 mΩ.
This model features a solder termination style.
The minimum quality factor of the SRP1770TA inductor is 20.
The Bourns SRP1770TA inductor is supplied in reel packaging for efficient manufacturing integration.
The SRP1770TA inductor is RoHS compliant, ensuring it meets environmental standards.
