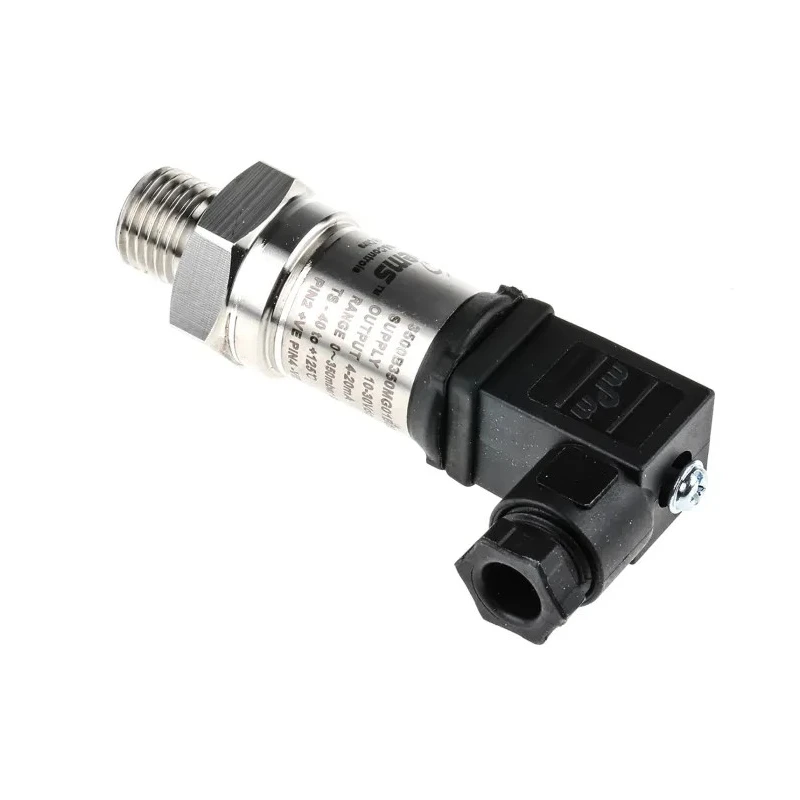

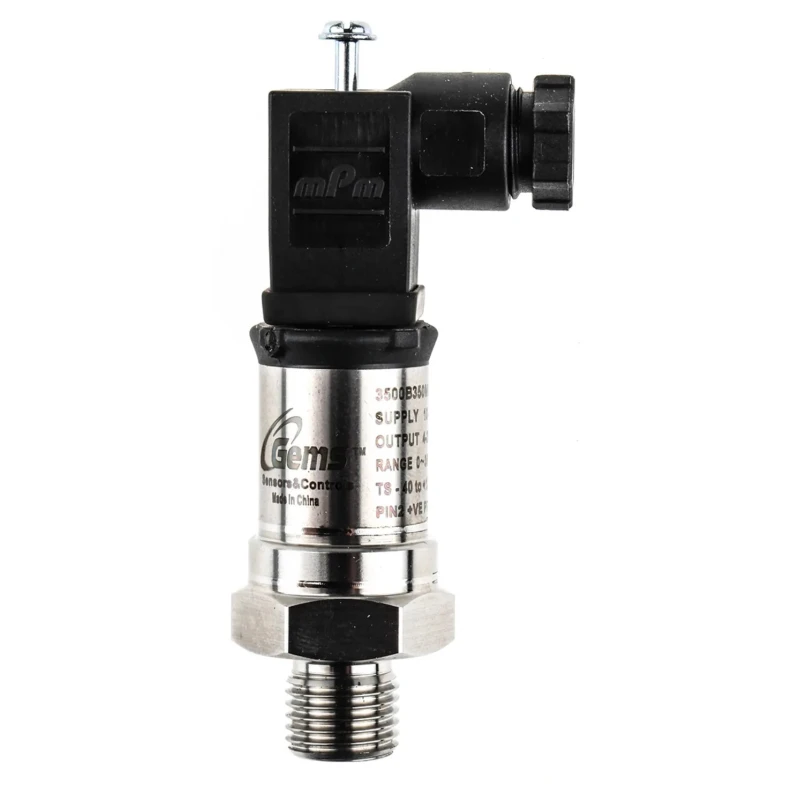

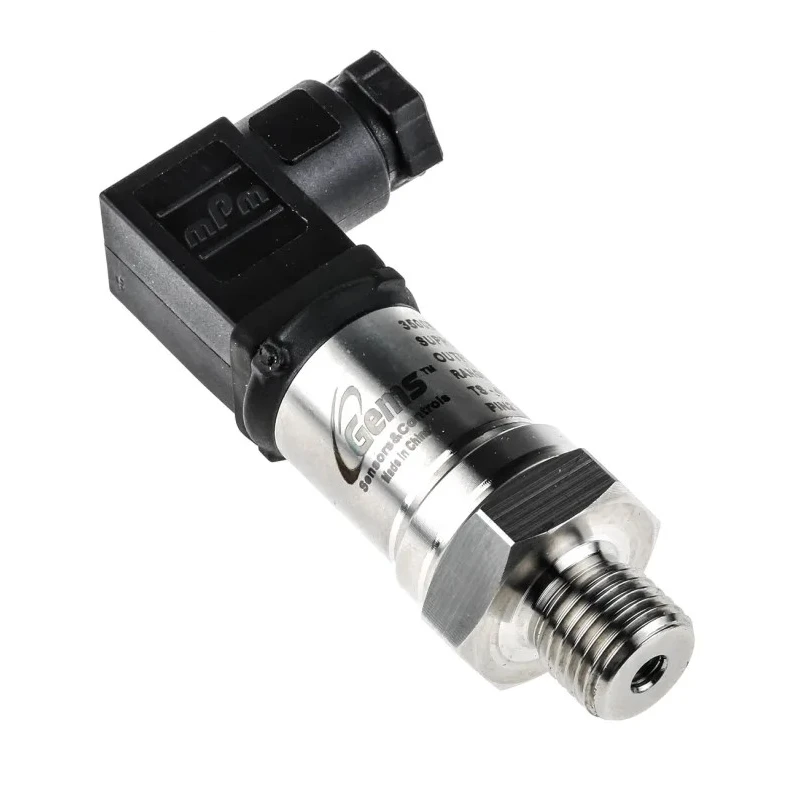

Gems Sensors 35XX Series Pressure Sensor 0.35 bar Maximum Pressure Relative Reading Current Output 3500B350MG01B000
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | 0.25 % |
| Brand | Gems Sensors |
| Model | 3500B350MG01B000 |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Output type | Current |
| Series | 35XX |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Maximum Pressure Measurement | 0.35bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 10V |
| Pressure Reading Type | Relative |
| Media Measured | Gas, Air, Water |
| Standards/ApprovalsEMC Directive 2004/108/EC, EN61326-2-3 | 2006, Pressure Equipment Regulations 1999, BS EN61326-1:2006, CE, CE0086 |
Key Features
- The sensor operates reliably from -40°C to 125°C.
- It offers an accuracy of 0.25 percent for precise pressure measurement.
- Equipped with a stainless steel housing, it ensures durable and corrosion-resistant performance.
- The device supports supply voltages ranging from 10V to 30V DC.
- Designed with an IP67 rating, it is suitable for harsh and wet environments.
- This compact low-pressure transmitter can be used where space is limited.
- It complies with EMC directive and pressure equipment regulations for safety standards.
Product Description
Gems Sensors 3500B350MG01B000 Pressure Sensor from the 35XX Series offers a compact design for low pressure measurement with a maximum pressure reading of 0.35 bar. It provides current output signals for relative pressure reading, ideal for gases, air, and water media in industrial and automation applications.
Constructed with stainless steel wetted parts, the sensor delivers robust corrosion resistance alongside a broad operating temperature range of -40°C to 125°C, making it suitable for demanding HVAC, process control, and manufacturing environments.
Operating at a minimum supply voltage of 10V up to a maximum of 30V DC, the device ensures stable electrical performance with a pressure reading accuracy of 0.25 percent. The IP67 ingress protection rating makes this sensor dust-tight and protected against water immersion, enabling use in harsh industrial settings.
The 3500 Series is renowned for its compact size, allowing installation in tight spaces without compromising on durability or functionality. It conforms to EMC Directive 2004/108/EC and relevant pressure equipment regulations, providing compliance assurance for professional engineering projects.
The sensor is designed for pressure ranges from 5 to 600 psi, with this model rated for a 0.35 bar maximum pressure. Its current output facilitates integration into control systems requiring analog input for pressure monitoring.
Stainless steel housing enhances the longevity and resistance against corrosive atmospheres. The device withstands temperatures from -40°C to 125°C, suitable for various environmental conditions. IP67 rating certifies protection from dust ingress and water, ensuring reliable field operation.
This pressure sensor is widely used in industrial automation, process instrumentation, HVAC systems, water treatment, and laboratory settings where precise low-pressure measurement is critical.
Discover further Gems Sensors products in the Pressure Sensors category on EnvMart for comprehensive solutions tailored to your industrial sensing needs.
