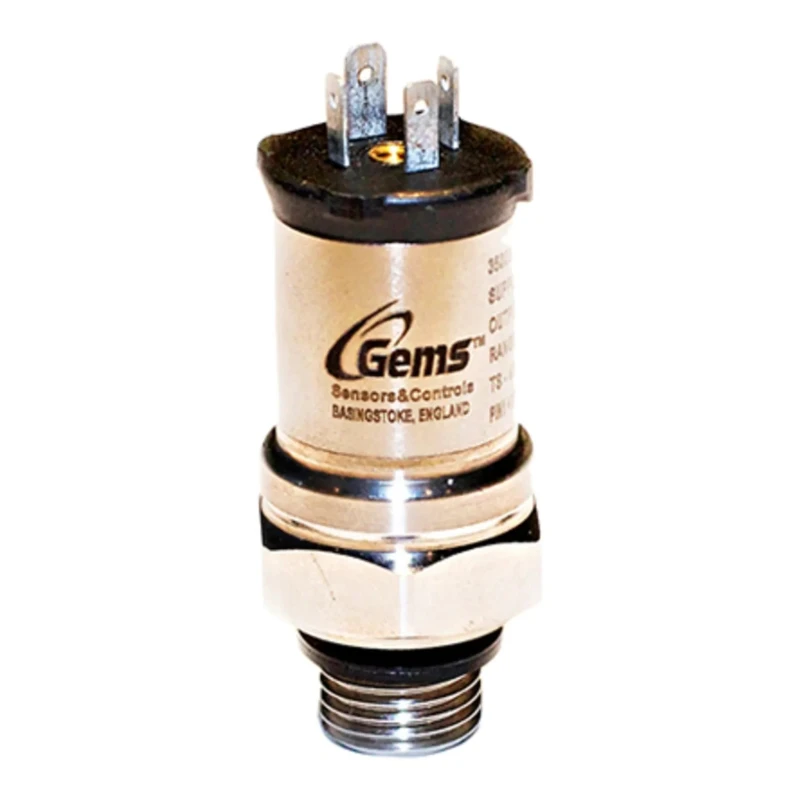

Gems Sensors 3500 Series Compact Low Pressure Voltage Output Sensor 6 bar 3500R0006G01B000
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | 0.25 % |
| Brand | Gems Sensors |
| Model | 3500R0006G01B000 |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Output type | Voltage |
| Series | 3500 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, CE |
| Maximum Pressure Measurement | 6bar |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 30V dc |
| Pressure Reading Type | Relative |
| Media Measured | Gas, Air, Water |
Key Features
- The sensor features compact low pressure transmitter design ideal for space-constrained installations.
- It provides high accuracy of 0.25% for precise pressure readings.
- Designed for measuring gases, air, and water media.
- Equipped with stainless steel wetted parts for durability and corrosion resistance.
- Operation temperature ranges from -40°C to 125°C, suitable for harsh environments.
- IP67 rated housing ensures protection against dust and water ingress.
- Maximum and minimum supply voltage is 30 V DC, supporting stable operation.
- This model complies with RoHS and CE standards for quality assurance.
Product Description
Gems Sensors 3500R0006G01B000 is a compact low pressure sensor designed to provide reliable voltage output for pressure measurement applications up to 6 bar.
The sensor measures relative pressure and delivers an output voltage compatible with various automation and control systems. Its stainless steel wetted parts offer excellent corrosion resistance and long service life, making it suitable for industrial, laboratory, HVAC, water treatment, and pneumatic applications where accuracy and durability are critical.
Operating temperature ranges from -40°C to 125°C and its IP67 rated housing assures excellent environmental protection, allowing installation in challenging conditions. The device runs on a supply voltage ranging up to 30 V DC, ensuring versatile compatibility.
The 0.25% accuracy facilitates precise monitoring of gases, air, and water, essential for processes requiring consistent pressure control. The compact size allows installation in tight spaces without sacrificing performance.
This sensor series is compliant with RoHS and CE standards, guaranteeing environmental safety and quality assurance consistent with international regulations. Although manufactured in China, these sensors meet high-quality industrial standards.
Compact low pressure transmitter with voltage output for relative pressure measurements. High accuracy of 0.25% enabling reliable data acquisition. Stainless steel wetted parts for durability in harsh environments. Wide operating temperature range from -40°C to 125°C.
IP67 protection rating for dust and water resistance. Suitable for gas, air, and water media measurement. Operating voltage up to 30 V DC for broad compatibility. Meets RoHS and CE standards ensuring regulatory compliance.
This product is widely used across industrial automation, HVAC systems, laboratory instrumentation, water treatment plants, and pneumatic equipment monitoring. For more advanced Pressure Sensor options, explore the Gems Sensors category on EnvMart.
