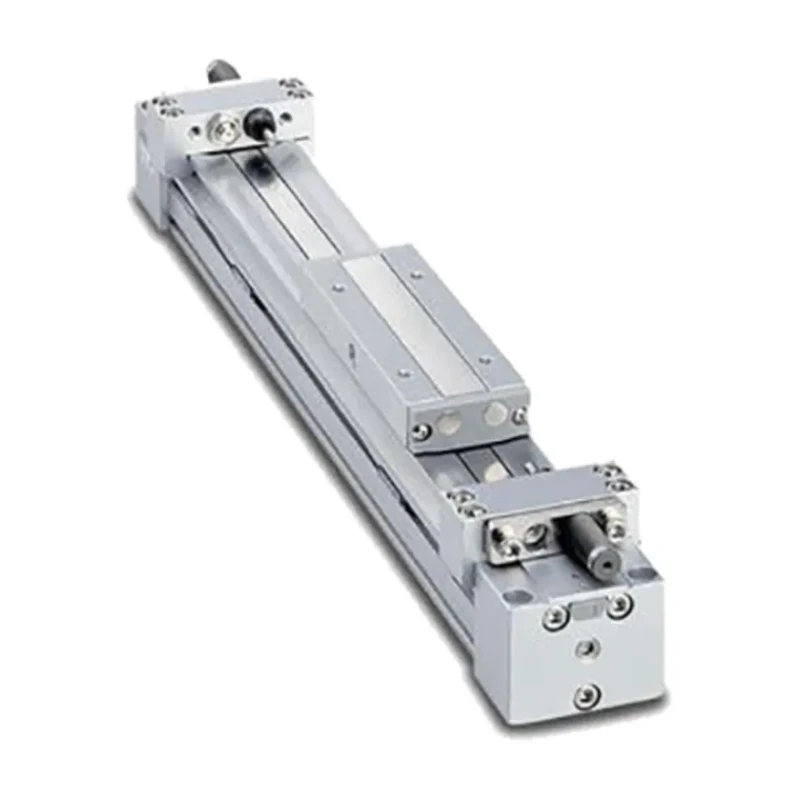

SMC Double Acting Rodless Actuator 25mm Bore 350mm Stroke MY1B25TFG-350Z

SMC MY1B25TFG-350Z Double Acting Rodless Actuator is engineered for industrial pneumatic applications requiring long strokes with compact design and integrated guiding. With a 25mm bore diameter and a 350mm stroke length, it efficiently converts pneumatic energy into precise linear motion.

The actuator features a durable aluminium alloy body, providing robustness while maintaining lightweight characteristics. Its double acting configuration enables controlled movement in both extending and retracting motions, suitable for automation and mechanical systems.

Designed for horizontal mounting, the basic guide type ensures stability during operation. The actuator includes an air cushioning system to reduce impact shock and noise, extending the service life of the cylinder in demanding environments.

Operating pressures up to 0.8 MPa allow for powerful and reliable actuation. The port thread size Rc 1/4 inch with BSP standard connection ensures compatibility with common pneumatic fittings. This model operates effectively within a temperature range from 5°C to 60°C, making it adaptable for various industrial conditions.

The compact form factor measuring 570mm in length, 54mm in height, and 53mm in width, along with a gross weight of 1.3 kilograms, supports easy integration into machinery and systems without occupying excessive space.

Manufactured in the United Kingdom and compliant with IEC standards, the MY1B25TFG-350Z actuator ensures quality and reliability in pneumatic rodless cylinder applications. Constructed with aluminium alloy body for lightweight durability.

Features double acting action type ensuring bidirectional power. Maximum operating pressure rated at 0.8 MPa for reliable performance. Horizontal mounting orientation with basic guide type for versatile installation. Equipped with air cushioning to minimize impact noise and vibration.

Operation temperature range from 5°C to 60°C suitable for varied environments. Port thread size Rc 1/4 inch with BSP connection standard provides compatibility. Compact dimensions of 570mm length, 54mm height, and 53mm width optimize space usage.

Gross weight of 1.3kg facilitates easy handling and installation. Manufactured in the United Kingdom meeting IEC standards for quality assurance.

Ideal for pneumatic systems in industrial, manufacturing, automation, HVAC, and fluid power applications, this actuator delivers reliable and precise linear motion control. Explore the full range of Pneumatic Rodless Cylinders for varied stroke lengths and bore sizes to suit your specific needs.
