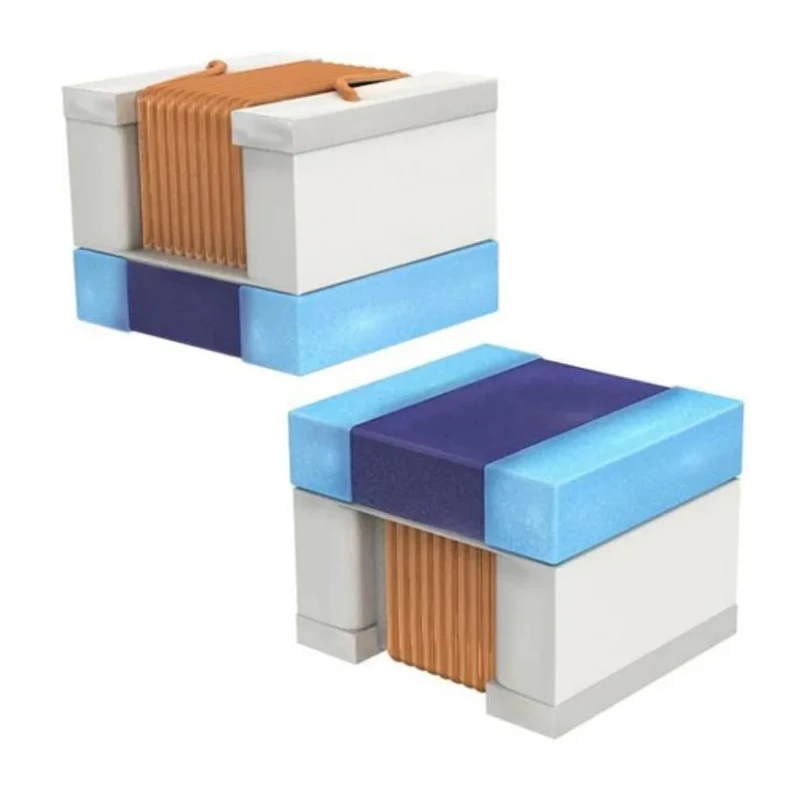

Murata Surface Mount Inductor, Unshielded, Non-Magnetic Core, 47 nH ±2%, 1.25 A Idc, Q:70, 2015 Package LQW2BAN47NG00L

Murata LQW2BAN47NG00L surface mount inductor features an unshielded, wirewound construction with a non-magnetic core, designed for high-frequency RF circuits. It has an inductance of 47 nH with ±2% tolerance, making it ideal for precise filtering and matching applications in industrial and communication devices.

Its compact 2015 package size (2.09 mm length, 1.42 mm height, and 1.53 mm depth) allows integration in space-constrained PCB layouts. The inductor supports a maximum DC current of 1.25 A, suitable for choke circuits with elevated current flow while maintaining low DC resistance (200 mΩ).

With a maximum self-resonant frequency of 1500 MHz and a minimum quality factor of 70, this component ensures excellent attenuation within filter passbands and maintains transmission/reception sensitivity in antenna matching circuits. It operates in a wide temperature range from -55°C to 125°C, supporting industrial and commercial temperature variations.

The device is RoHS compliant, supplied in paper tape packaging designed for automated surface mount soldering processes. Its solder termination style provides reliable electrical connections.

Ideal applications include RF units, antenna matching systems, choke circuits, and other electronic components requiring precise inductive properties. Murata's LQW series is recognized for quality and durability in electronics manufacturing.

High-quality wirewound construction suitable for RF applications. Maximum DC current rating of 1.25 A ensures reliable performance. Compact 2015 package with dimensions 2.09 mm length, 1.42 mm height, and 1.53 mm depth. Non-magnetic core enhances signal integrity and attenuation characteristics.

Operating temperature range from -55°C to 125°C supports diverse environments. Maximum self-resonant frequency of 1500 MHz for high-frequency circuits. Minimum quality factor of 70 provides excellent filter performance. Termination style is solder with paper tape packaging for surface mount assembly.

RoHS compliant with no shielding for optimized electromagnetic behavior. Discover more electronics components like this in the Surface Mount Inductor category at EnvMart for your industrial and manufacturing needs.
