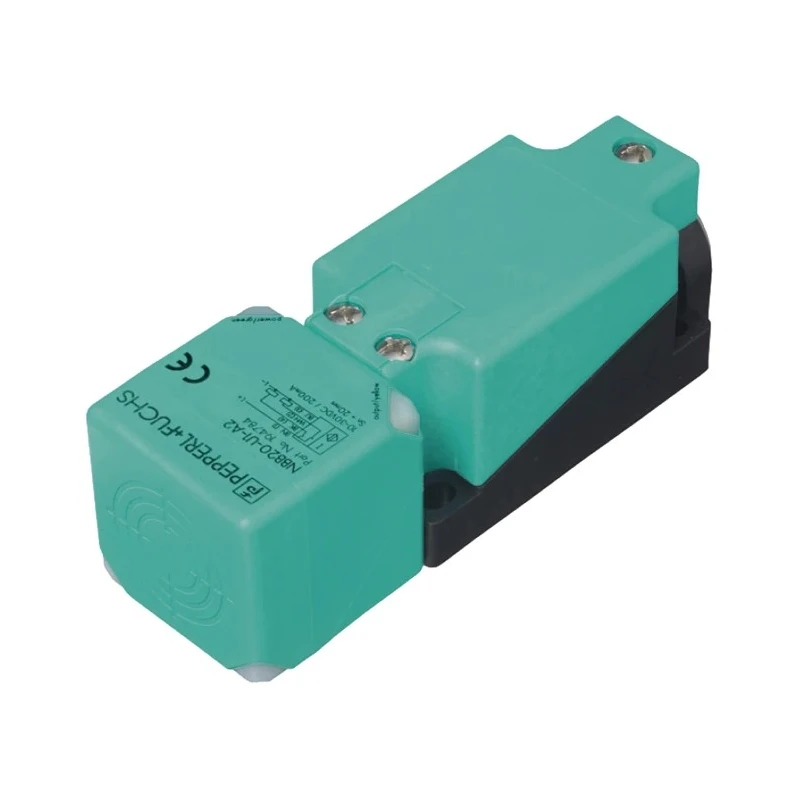

Pepperl + Fuchs Block Inductive Proximity Sensor M12 Thread 40 mm Detection Range Polyamide IP69K IP68 NBN40-U1-A2-V1

Pepperl + Fuchs NBN40-U1-A2-V1 Block Inductive Proximity Sensor, featuring an M12 threaded body, operates at a maximum supply voltage of 30 V dc with a switching current of 200 mA. Designed for industrial automation and control applications, this sensor detects metal objects at a range up to 40 mm with high reliability.

Constructed from durable polyamide housing, the sensor offers robust protection ratings of IP69K and IP68, making it waterproof, dust-tight, and suitable for harsh environments. It is unshielded with a 4-pin M12 terminal connection ensuring ease of integration. Operating temperature ranges from -25°C up to 85°C, making it versatile for varied industrial conditions.

This sensor’s compact block style casing measures 118 mm in length and 40 mm in both width and depth. The device includes reverse polarity and short circuit protection, enhancing safety and durability. It achieves a maximum switching frequency of 150 Hz, supporting responsive sensing needs.

Certified under standards CCC, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, and UL, the sensor meets rigorous quality and safety requirements. Its advanced design provides excellent EMC interference immunity, UV resistance, and easy replacement without rewiring, suited for automation and control systems in manufacturing, processing, and machinery operations.

The sensor features an M12 thread size suitable for non-flush mounting. It operates reliably between -25°C and 85°C temperature range. The device has a maximum supply voltage of 30 V dc and supports a switching current of 200 mA.

Rated with IP69K and IP68 protection, it is waterproof and robust for industrial environments. Equipped with a 4-pin M12 terminal type for easy electrical connectivity. The sensor is unshielded and has a maximum switching frequency of 150 Hz.

It is housed in polyamide material for UV resistance and robustness. The compact block body style measures 118 mm in length, 40 mm in width and depth. Complies with standards such as CCC, EN 60497-5-2:2007, IEC 60947-5-2:2007, and UL approvals.

Pepperl + Fuchs proximity sensors are trusted for their long service life and robustness under extreme industrial conditions. This model is ideal for detection tasks in automation, manufacturing, material handling, and industrial process control environments.
