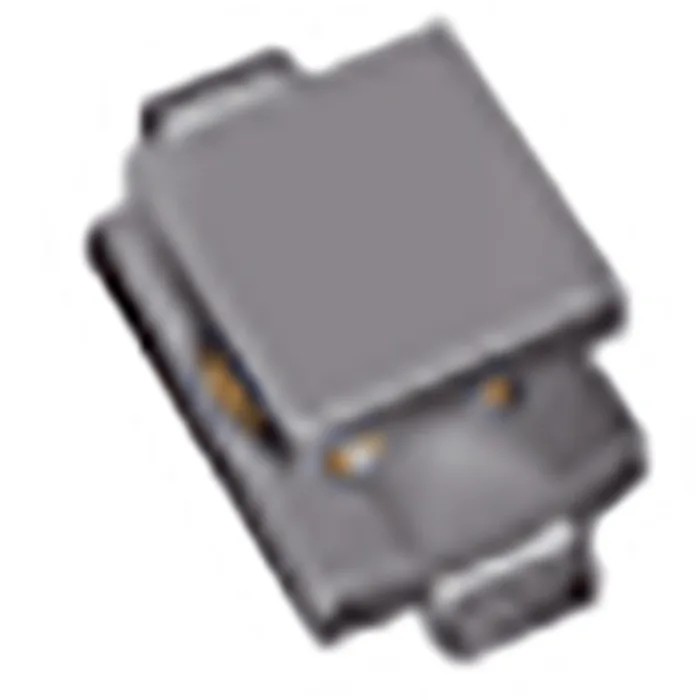

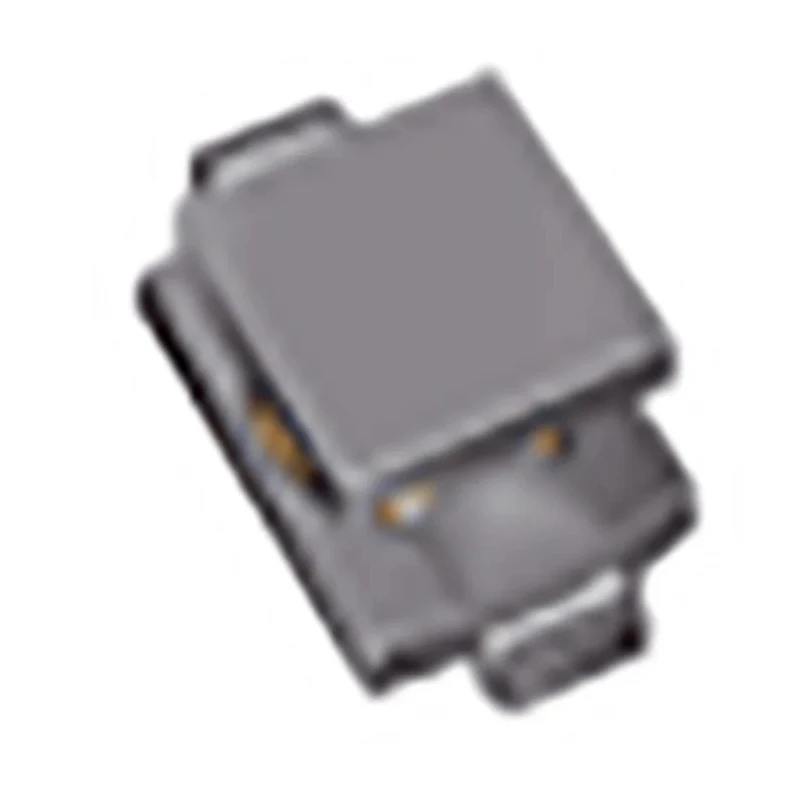

Bourns 10 μH Unshielded Surface Mount Inductor with Ferrite DR Core, 1 A Current, 0703 Size SDR0703
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 2.7mm |
| Length | 6.5mm |
| Model | SDR0703 |
| Depth | 4.5mm |
| Packaging | Tape & Reel |
| Series | SDR0703 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0703 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 170mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 36MHz |
| Minimum Quality Factor | 23 |
| Inductor Construction | Ferrite Core |
Key Features
- The inductor features a low profile height of 2.7 mm for space-saving PCB layouts.
- It has a 0703 package size with dimensions 6.5 mm length and 4.5 mm depth.
- Inductance tolerance is ±10% ensuring reliable performance within specifications.
- The core is constructed from ferrite DR material providing good magnetic properties.
- The rated maximum DC resistance is 170 milliohms to minimize power loss.
- Self-resonant frequency of 36 MHz supports high-frequency operation.
- It is RoHS compliant and suitable for portable communication, camcorders, LCD TVs, and DC/DC converter applications.
- Maximum operating temperature up to 125°C allows use in a variety of environments.
Product Description
Bourns SDR0703 unshielded surface mount inductor provides an inductance of 10 μH with a ferrite DR core designed for compact and low profile electronic circuit applications. It supports a maximum DC current of 1 ampere, making it ideal for power supply and DC/DC converter input/output filtering requirements.
This inductor features a 0703 package with a length of 6.5 mm, a height of 2.7 mm, and a depth of 4.5 mm. The surface mount termination style enables easy integration into modern automated PCB assembly lines.
The inductance tolerance of ±10% ensures stable inductive characteristics within the operating temperature range of -40°C to 125°C. The maximum DC resistance is 170 milliohms, optimizing efficiency by reducing resistive losses under load.
Constructed with a ferrite DR core, the SDR0703 delivers a minimum quality factor (Q) of 23 and a maximum self-resonant frequency of 36 MHz, supporting operation at higher frequencies typically found in portable communications equipment, camcorders, and LCD televisions.
Applications range from DC/DC converters and power supplies to various consumer electronic devices. The inductor complies with RoHS standards, ensuring environmental and safety adherence.
Low profile height of 2.7 mm supports compact PCB layouts. High saturation current capability up to 3.2 amps (Isat) enhances transient response. Available in E12 series to offer a broad inductance range. Tape and reel packaging optimizes surface mount assembly automation.
Ferrite core construction ensures stable magnetic characteristics. Designed for use in portable communication devices, camcorders, LCD TVs, and automotive radios. Provides efficient noise suppression and power filtering for DC/DC converters.
Explore the Surface Mount Inductor category on EnvMart for a wide range of related inductors and components suitable for industrial electronics and power management applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH, with an inductance tolerance of ±10%.
The inductor has a length of 6.5 mm, a depth of 4.5 mm, and a height of 2.7 mm.
The maximum DC current rating for this inductor is 1 A.
The maximum self-resonant frequency is 36 MHz, allowing for high-frequency operation.
It is constructed with a ferrite DR core, which provides good magnetic properties.
The maximum operating temperature is 125°C, suitable for various environments.
This unit features a surface mount termination style, facilitating easy integration into PCBs.
It is packaged in tape and reel format, optimizing for surface mount assembly automation.
The minimum operating temperature is -40°C, allowing it to function in low-temperature environments.
This inductor is suitable for use in portable communication devices, camcorders, LCD TVs, and DC/DC converters.
The maximum DC resistance is 170 milliohms, which helps minimize power loss.
It provides a minimum quality factor (Q) of 23, supporting efficient operation in electronic circuits.
