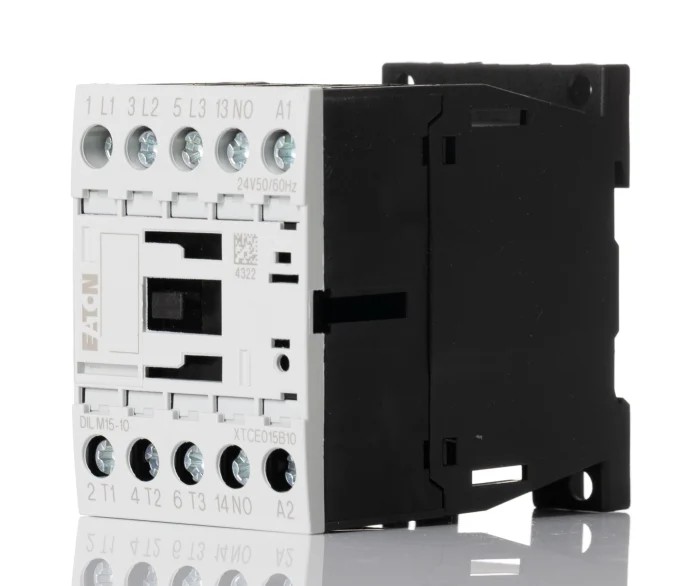

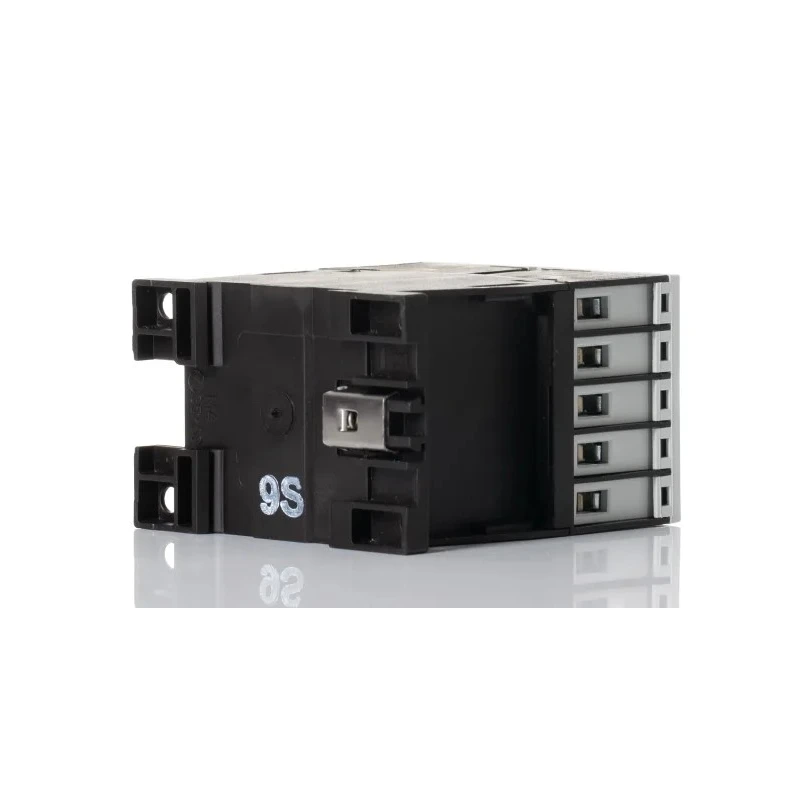

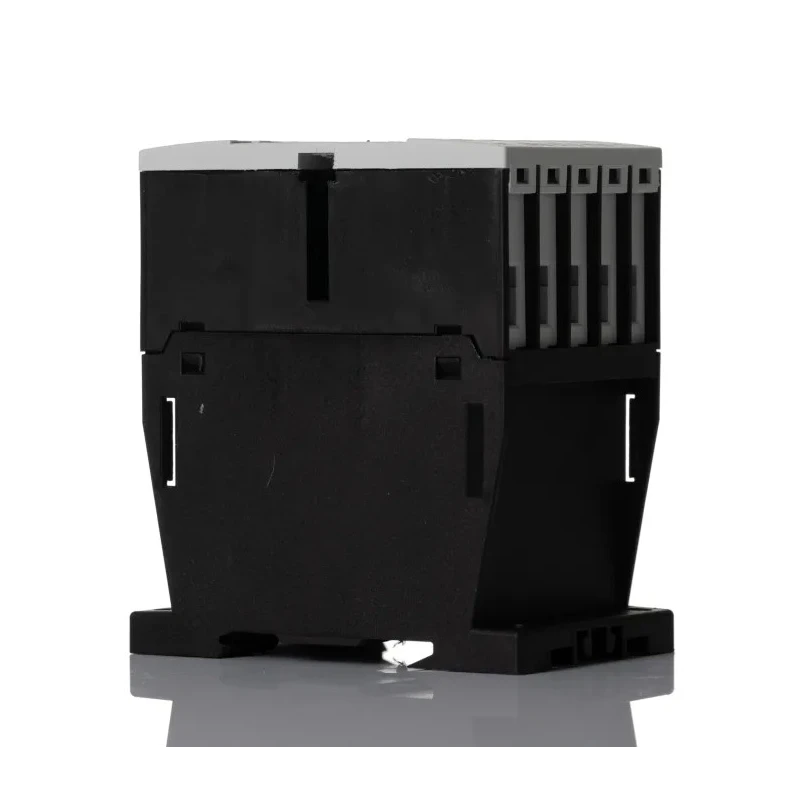

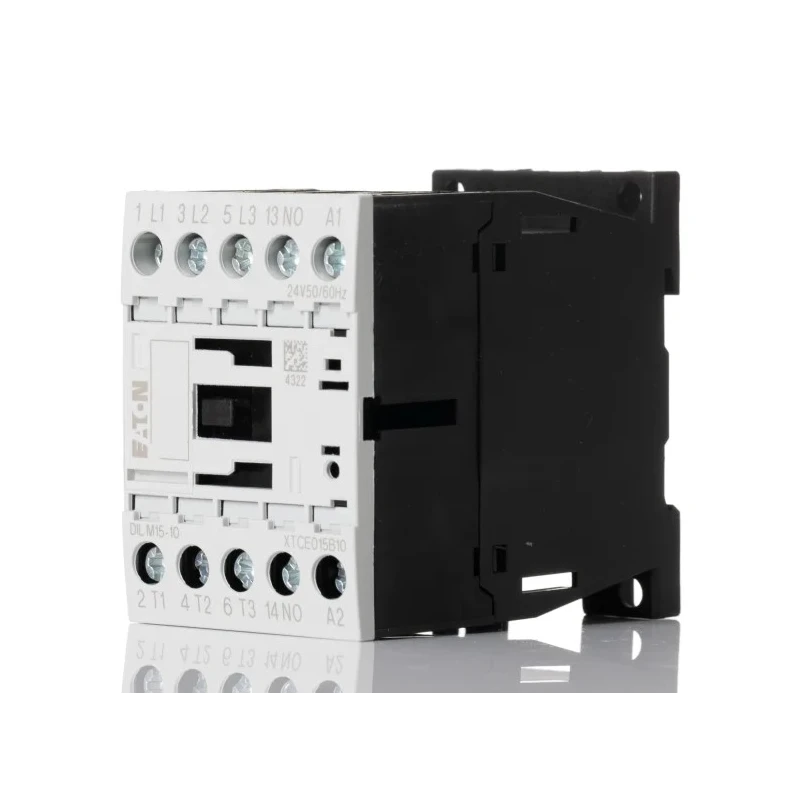

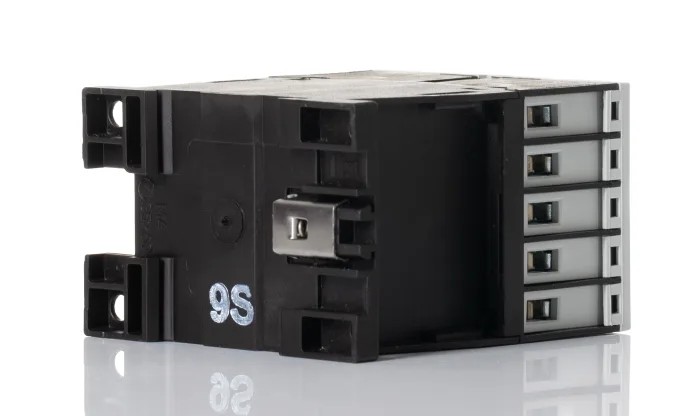

Eaton DILM Contactor 24V AC Coil, 3-Pole, 15 A, 7.5 kW, 24V AC, 3 NO, 400V AC 290062 DILM15-10(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 68mm |
| Model | 290062 DILM15-10(24V50/60HZ) |
| Depth | 75mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 15A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 15A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Eaton Contactor, 24 V Coil, 3-Pole, 155 A, 7.5 kW, 1NOBrand | Eaton |
Key Features
- Three-pole configuration with 15 amp contact current and 7.5 kW power rating.
- Coil voltage of 24V AC and contact voltage rating at 400V AC ensure versatile operation.
- Equipped with one auxiliary contact configured as 1 NO to enhance control circuit functionality.
- Durable screw clamp terminals allow secure and straightforward wiring with a 10mm strip length.
- Supports operating temperatures between -25°C and 50°C for reliable performance.
- Compact dimensions of 75mm length, 45mm width, and 68mm height make it suitable for tight panel spaces.
- Designed for DIN rail mounting, facilitating easy installation and maintenance.
- Compliant with international standards including VDE 0660, UL, IEC/EN 60947, and CSA.
Product Description
Eaton 290062 DILM15-10(24V50/60HZ) Contactor features a 24V AC coil voltage tailored for motor control and resistive load applications in industrial, automation, and electrical systems. It efficiently manages circuit switching with a contact current rating of 15 A and power handling of 7.5 kW. The device operates at a contact voltage of 400V AC and includes three poles configured as 3 NO contacts for reliable switching functions.
Constructed to fit compact installation environments, it measures 75mm in length, 45mm in width, and 68mm in height, and mounts easily on DIN rails. The contactor is equipped with a single auxiliary contact (1 NO), enhancing control circuit capabilities.
Wiring is facilitated by screw clamp terminals requiring a conductor strip length of 10 mm, ensuring proper and secure connection. This product operates reliably across a temperature range from -25°C to 50°C, making it suitable for diverse industrial environments.
Designed to meet stringent compliance requirements, the contactor boasts certifications including VDE 0660, UL, IEC/EN 60947, and CSA, ensuring safety and international acceptability. The contactor withstands an impulse voltage of 8000V AC and is rated for 5000 mechanical operations per hour, supporting high durability and consistent performance.
Three-pole, 15 A contact current, 7.5 kW power switching capacity. 24V AC coil voltage with 400V AC contact voltage rating. One auxiliary contact (1 NO) included. Screw clamp terminal for secure wiring with recommended 10 mm insulation strip length.
Operating temperature range from -25°C to 50°C. Compact size suitable for DIN rail mounting. Compliant with VDE 0660, UL, IEC/EN 60947, and CSA standards. 8000V AC impulse voltage withstand rating and 5000 mechanical operations per hour.
Ideal for industrial automation, motor control, HVAC systems, manufacturing plants, and electrical distribution installations requiring reliable and efficient contact switching. Eaton’s DILM contactor ensures optimal control and performance with compact design and certified safety.
Explore more products in the Contactor category and related automation control gear at EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM15-10 contactor has a power rating of 7.5 kW.
This model operates with a coil voltage of 24V AC.
It can handle a maximum contact current of 15 A.
The contactor features a three-pole configuration, with three normally open (3 NO) contacts.
The contact voltage rating is 400V AC.
It measures 75 mm in length, 45 mm in width, and 68 mm in height.
It is equipped with screw clamp terminals for secure wiring.
The operating temperature range is from -25°C to 50°C.
Yes, it is designed for easy installation on DIN rails.
It complies with VDE 0660, UL, IEC/EN 60947, and CSA standards.
This unit includes one auxiliary contact configured as 1 NO.
It is designed for motor control and resistive load applications in industrial and electrical systems.
