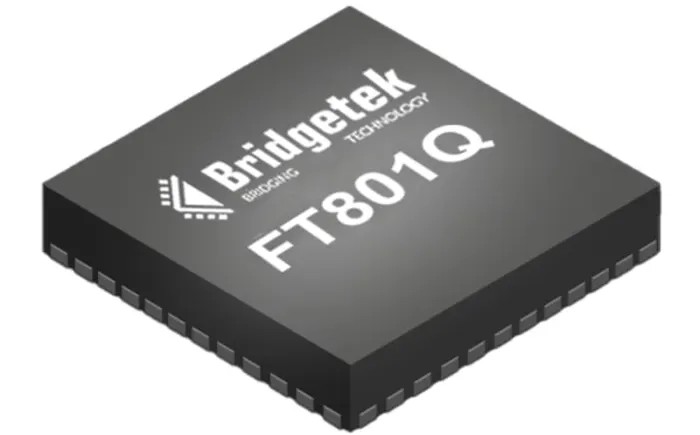

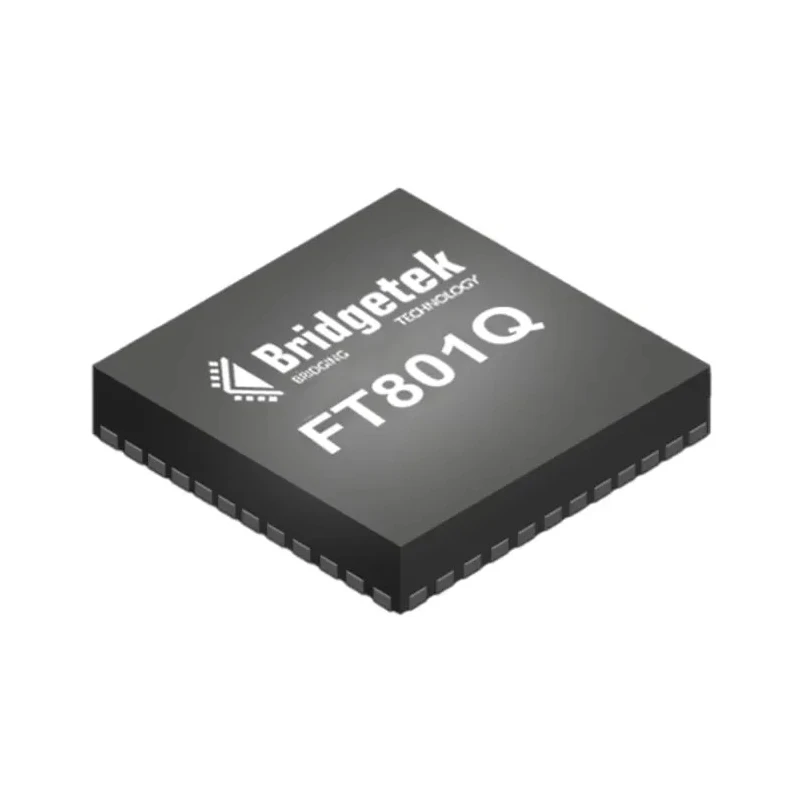

Bridgetek Graphics Controller 48-Pin VQFN Surface Mount 3.3V 7mm x 7mm x 0.9mm FT801Q-R

Bridgetek FT801Q-R is a surface mount graphics controller packaged in a compact 48-pin VQFN form factor measuring 7mm by 7mm by 0.9mm. Operating at a minimum supply voltage of 3.3V, this controller targets embedded applications that require high-quality Human Machine Interface (HMI) displays.

The Embedded Video Engine (EVE) architecture of the FT801Q-R integrates advanced graphic features, audio processing, and a capacitive touch screen controller supporting up to 5 simultaneous touches. It provides compatibility with WQVGA (480x272) and QVGA (320x240) display resolutions, enhancing graphic rendering quality with 8-bit color calculations despite limited RGB pins.

Equipped with a built-in 12MHz crystal oscillator and PLL, the device can generate 48MHz or 36MHz system clocks, ensuring precise timing for display and processing. The chipset supports clock switching between internal and external sources, allowing use of an external 12MHz crystal or clock input for increased accuracy.

Power efficiency is a key feature with typical active current of 24mA and a sleep mode current of just 250 microamps, making it suitable for portable embedded systems. The architecture eliminates the need for frame buffer RAM, thereby reducing overall system cost and complexity. The chip supports standard SPI communication up to 30MHz and I²C communication at clock rates up to 3.4MHz, facilitating flexible host interface options operating between 1.8V and 3.3V I/O voltages.

The FT801Q-R operates reliably within an extended temperature range from -40°C to 85°C, allowing use in varied industrial environments. Its compact size, low power consumption, and comprehensive feature set make it ideal for applications in industrial controls, multimedia user interfaces, embedded display modules, and other electronic devices requiring graphical display and touch input.

Supports embedded video engine for advanced HMI graphics and processing. Includes capacitive multi-touch sensing with up to 5 touch points. Built-in 12MHz crystal oscillator with programmable PLL for flexible clocking. Low power consumption suited for battery-powered designs.

Standard SPI and I²C host interfaces with wide voltage compatibility. Extended temperature range for industrial and commercial applications. Compact 48-pin VQFN package measuring 7mm x 7mm x 0.9mm. No frame buffer RAM required lowering system cost and complexity.

Object-oriented architecture supports cost-effective MPU/MCU integration.

This graphics controller is manufactured in China and is RoHS compliant. It is suitable for embedded systems in industrial machines, consumer electronics, and other applications requiring integrated touch and display control. Browse EnvMart for more Bridgetek semiconductor and graphics controller solutions.
