onsemi Power Factor Controller 40 kHz 32-Pin LQFP 30V FAN9672Q

Free Delivery in India | Lowest Global Shipping Charges

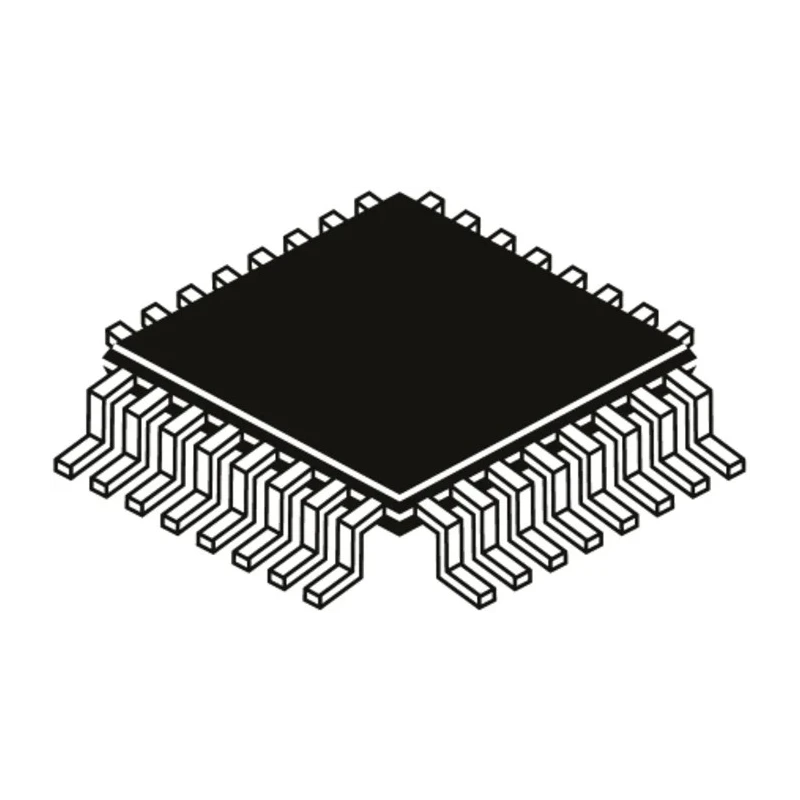

onsemi Power Factor Controller 40 kHz 32-Pin LQFP 30V FAN9672Q

Name: onsemi Power Factor Controller 40 kHz 32-Pin LQFP 30V FAN9672Q
Brand: onsemi
SKU: 134902
Price: 4.88 USD
Availability: InStock



Category Power Factor Controller IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.45mm
Length	9mm
Model	FAN9672Q
Mount Type	Surface
Series	FAN9672C
Maximum Operating Temperature	105°C
Package Type	LQFP
Sub Type	Power Factor Controller
Minimum Operating Temperature	-40°C
Switching Frequency	40kHz
Pin Count	32
Maximum Supply Voltage	30V
Supply Current	7mA
Start-up Supply Current	80μA
Maximum Source Current	50μA
Maximum Sink Current	-35μA

Key Features

The device operates with a switching frequency of 40 kHz for optimized power management.
It supports a maximum supply voltage of 30V ensuring robust performance.
Supplies current consumption as low as 7mA with start-up current of 80μA for energy-efficient operation.
Features a 32-pin LQFP surface mount package with compact dimensions of 9mm length and 1.45mm height.
Incorporates advanced protection features including soft start, over-voltage, over-current, and under-voltage lockout protections.
Operates reliably across a wide temperature range from -40°C to 105°C.
Supports zero power detection enhancing operational accuracy.
Suitable for use in industrial and electronic power management applications requiring continuous conduction mode (CCM) or boundary conduction mode (BCM).

Product Description

onsemi FAN9672Q Power Factor Controller 40 kHz 32-Pin LQFP 30V is a highly integrated power management IC tailored for power factor correction in various electronic applications. Operating at a switching frequency of 40 kHz, it ensures efficient management of power supply with minimal losses and stable output.

This controller features a low start-up supply current of 80μA and a low supply current of 7mA, making it energy-efficient while maintaining high performance. Its robust maximum supply voltage of 30V allows it to operate reliably in demanding industrial environments.

The device is housed in a compact 32-pin LQFP surface mount package measuring 9mm in length and 1.45mm in height, which supports compact PCB designs and automated manufacturing processes. It is engineered to function across a broad temperature range from -40°C to 105°C, suited for various environmental conditions.

Comprehensive protection features including soft start, over-voltage protection, over-current protection, open-feedback protection, input-voltage-absent protection, and under-voltage lockout ensure operational safety and longevity of your systems.

The FAN9672Q is designed for industrial and commercial power correction applications, optimizing power factor and reducing harmonic distortion in electronic circuits. Its zero power detection feature enhances effectiveness by preventing unnecessary power consumption.

The switching frequency is 40 kHz for precise control. Start-up supply current is as low as 80 μA guaranteeing energy efficiency. It supports a maximum supply voltage of 30V for robust performance. Surface mount LQFP package with 32 pins enables compact usage.

Operates reliably from -40°C to +105°C. Incorporates multiple integrated safety and operational protections. Supports continuous conduction mode (CCM), critical/boundary conduction mode (CrCM/BCM), and interleaved PFC controllers.

Ideal for industrial power management and power factor correction circuits.

Choose onsemi FAN9672Q for advanced power factor control solutions, enhancing efficiency and compliance in your power electronic designs. Explore the power management ICs category at EnvMart for more options and solutions.

Explore more products in our Power Factor Controller IC category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum supply voltage for this model is 30V, ensuring robust performance in various applications.

It operates at a switching frequency of 40 kHz, optimizing power management and efficiency.

This unit has a length of 9mm and a height of 1.45mm, housed in a 32-pin LQFP surface mount package.

It has a supply current consumption as low as 7mA, contributing to its energy-efficient operation.

This model operates reliably across a wide temperature range from -40°C to 105°C.

It incorporates advanced protection features including soft start, over-voltage, over-current, and under-voltage lockout protections.

The start-up supply current for this model is as low as 80μA, enhancing its energy efficiency during operation.

It is suitable for industrial and electronic power management applications requiring continuous conduction mode (CCM) or boundary conduction mode (BCM).

This power factor controller features a pin count of 32, allowing for versatile connectivity in circuit designs.

The maximum source current for the FAN9672Q is 50μA, which is important for its operational capabilities.

It uses a surface mount LQFP package, which is suitable for compact PCB designs and automated manufacturing processes.

This model belongs to the FAN9672C series, which is designed for power factor correction applications.
