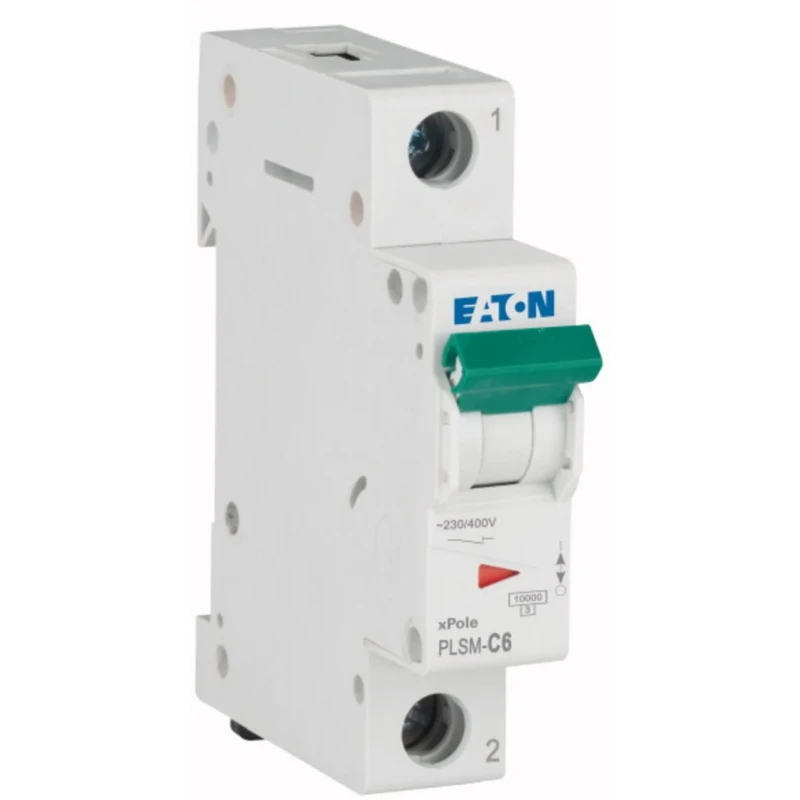

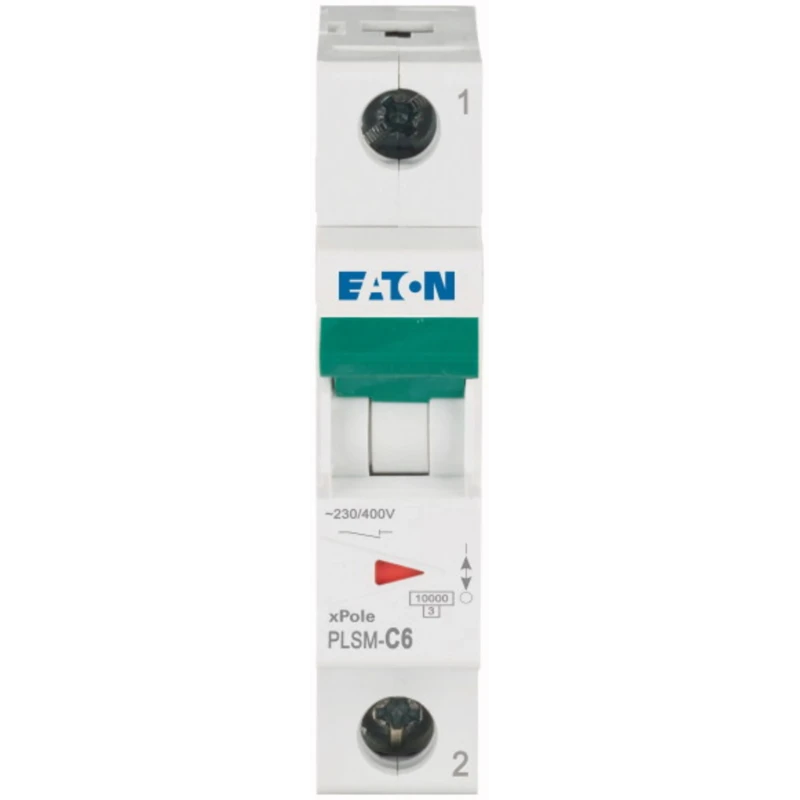

Eaton xPole Miniature Circuit Breaker, 1-Pole, 6A, Type C, 48 V DC, 10 kA Breaking Capacity 242200 PLSM-C6-MW

Eaton 242200 PLSM-C6-MW Miniature Circuit Breaker 1-Pole, 6A, Type C, rated at 48 V DC, is designed to reliably protect electrical circuits from damage caused by short circuits and overcurrent conditions. This product is ideal for both residential and commercial electrical installations where compact and efficient circuit protection is required.

The thermal-magnetic trip mechanism quickly responds to electrical faults, ensuring equipment safety and minimizing downtime. Its robust thermoplastic housing provides high mechanical resistance and acts as an electrical insulator, preventing accidental electric shocks during handling. The unit clips easily onto standard DIN rails, facilitating fast installation and maintenance.

With a breaking capacity of 10 kA, this circuit breaker can handle substantial current surges without damage, ensuring long-term reliability in demanding conditions. Its narrow width of 17.5 mm enables space-saving panel assembly. The IP20 rating ensures finger-safe operation by preventing accidental contact with live parts. The toggle switch actuator allows for straightforward manual reset after trips.

The device operates efficiently across a broad ambient temperature range from minus 25 degrees Celsius to plus 75 degrees Celsius, making it suitable for harsh environments. The screw terminal type provides secure electrical connections.

Single-pole design for precise circuit isolation. 6 A current rating suitable for low current loads. Type C tripping characteristic providing moderate overload protection. Breaking capacity of 10 kA ensures safety under fault conditions.

Thermoplastic housing imparts durability and insulation. IP20 finger-safe rating enhances user safety. Easy DIN rail mounting facilitates installation. Toggle switch reset for convenient operation. Narrow 17.5 mm width conserves panel space.

Operates reliably in temperatures from -25°C to +75°C.

This Miniature Circuit Breaker is applicable in industrial, commercial, and residential electrical distribution systems. Eaton’s xPole PLSM series products are engineered to meet stringent safety standards EN 60898-1 and relevant IEC norms, ensuring compliance for global use.
