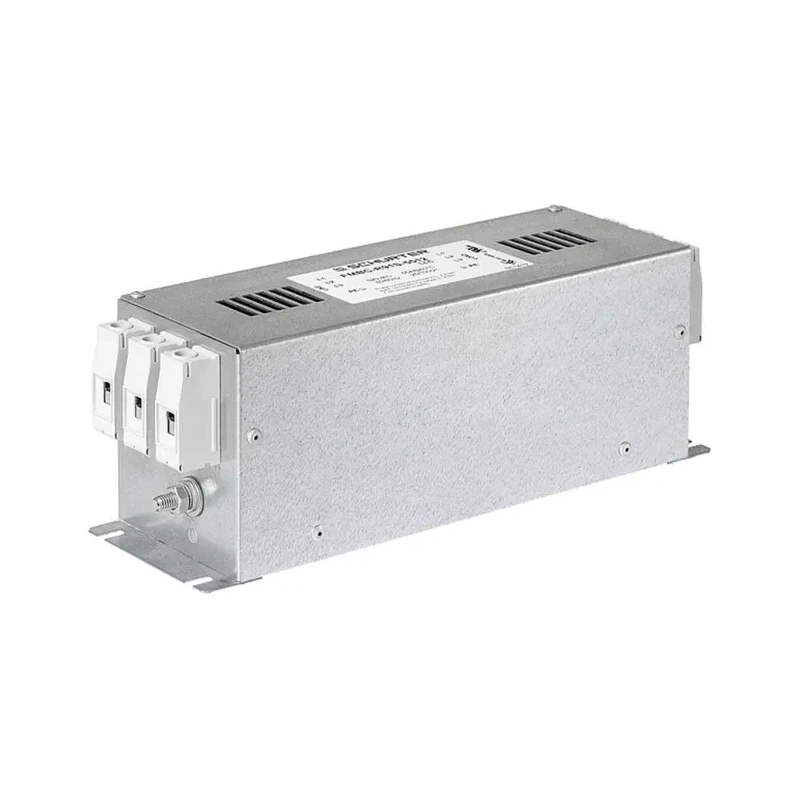

Schurter RFI Filter FMBC-R91R-4212 42A 520V AC 50Hz/60Hz Chassis Mount Screw Termination 3 Phase FMBC LL Series
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 85mm |
| Length | 315mm |
| Model | FMBC-R91R-4212 |
| Depth | 50mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | FMBC LL |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 42A |
| Number of Phases | 3 |
| Leakage Current | 4.4A |
| Maximum Voltage | 520V ac |
| Termination Style | Screw |
| Power Loss | 10.7W |
| Especially designed for industrial applications such as | Frequency Converters, Stepper Motor Drives, UPS-Systems and Inverters |
Key Features
- Maximum current rating of 42 amperes for robust power handling.
- Operates at 520 volts AC with frequency compatibility of 50 and 60 Hz.
- Chassis mount type with secure screw termination style.
- Consists of two filter stages for efficient interference suppression.
- Low leakage current of 4.4 amperes suitable for residual current device (RCD) applications.
- Wide operating temperature range from -25°C to 100°C for industrial environments.
- Compact dimensions of 315 millimeters length, 85 millimeters height, and 50 millimeters depth.
- Power loss is controlled at 10.7 watts to ensure energy efficiency.
Product Description
Schurter FMBC-R91R-4212 is a high-performance chassis mount RFI filter designed for 3-phase power line EMI suppression in industrial applications. This 2-stage filter is rated for a maximum current of 42A and a maximum voltage of 520V AC, compatible with both 50 Hz and 60 Hz operating frequencies.
The filter features a screw termination style for secure and reliable installation on chassis mount systems. It provides low leakage current of 4.4A, making it well-suited for systems incorporating residual current devices. The product operates over a broad temperature range from -25°C minimum to 100°C maximum, supporting demanding industrial environments.
With dimensions of 315 mm length, 85 mm height, and 50 mm depth, the compact form factor facilitates integration into power electronics assemblies. Power loss is maintained at 10.7 W, balancing effective filtering with energy efficiency.
The FMBC LL Series is particularly designed to protect frequency converters, stepper motor drives, UPS systems, and inverters from power line interference and voltage fluctuations. This ensures enhanced reliability and noise suppression in sensitive industrial equipment.
Maximum current rating of 42 amperes for robust power handling. Operates at 520 volts AC with frequency compatibility of 50 and 60 Hz. Chassis mount type with secure screw termination style. Consists of two filter stages for efficient interference suppression.
Low leakage current of 4.4 amperes suitable for residual current device (RCD) applications. Wide operating temperature range from -25°C to 100°C for industrial environments. Compact dimensions of 315 mm length, 85 mm height, and 50 mm depth.
Power loss is controlled at 10.7 watts to ensure energy efficiency. Designed for industrial use with frequency converters, stepper motor drives, UPS systems, and inverters. No special certifications; focused on reliable industrial performance.
This product is categorized within power line filters used extensively in electronics and electrical industrial sectors, supporting EMI filters and protection solutions. Explore additional Schurter products and Power Line Filters on EnvMart to meet your electromagnetic compatibility requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 42 amperes, allowing for robust power handling in industrial applications.
It operates at a maximum voltage of 520 volts AC and is compatible with both 50 Hz and 60 Hz frequencies.
This model features a chassis mount type with a secure screw termination style for reliable installation.
The leakage current is rated at 4.4 amperes, making it suitable for applications involving residual current devices.
It operates effectively within a temperature range of -25°C to 100°C, suitable for demanding industrial environments.
The dimensions are 315 mm in length, 85 mm in height, and 50 mm in depth, allowing for compact integration into systems.
This model consists of two filter stages, which enhance its efficiency in suppressing interference.
The power loss is controlled at 10.7 watts, balancing effective filtering with energy efficiency.
This model is part of the FMBC LL Series, which focuses on power line EMI suppression.
The FMBC-R91R-4212 is manufactured in India.
This model supports a 3-phase configuration, making it suitable for various industrial power applications.
