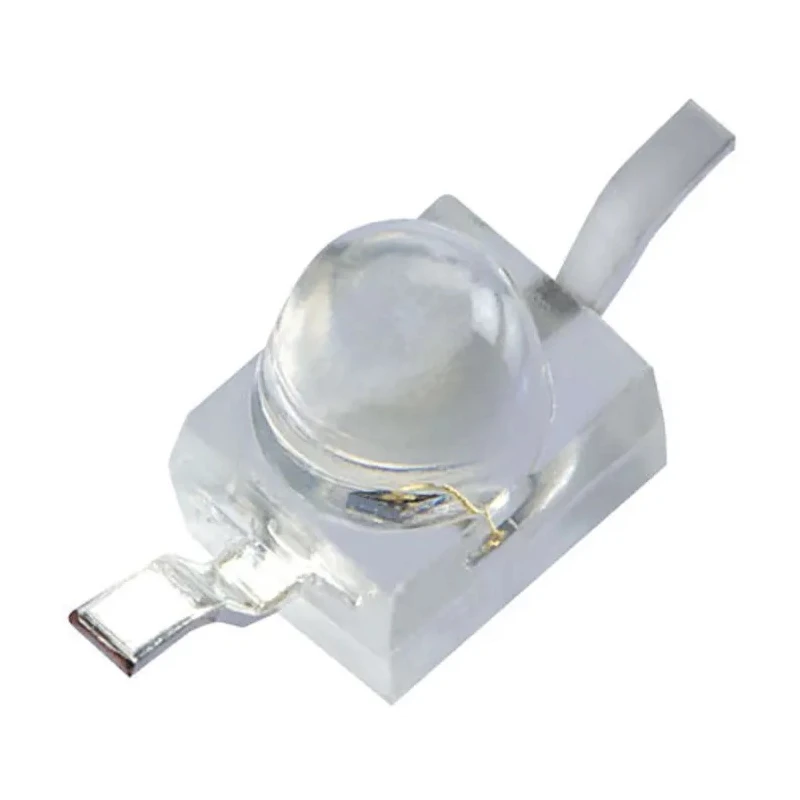

Kingbright Green LED 2.5 V 150 mA 75 mW Subminiature Surface Mount Dome Lens KM2520CGCK09
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM2520CGCK09 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KM2520 |
| Maximum forward current | 150mA |
| Viewing angle | 20 ° |
| Package Type | Subminiature |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 800 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 2.5 x 2 x 2.8 mm |
| Lens Shape | Dome |
| Lead types | Gull-wing (GW), yoke and z-bend |
Key Features
- Features a dome-shaped, low-profile lens measuring 2.5 x 2 x 2.8 mm.
- Emits green light with a dominant wavelength of 570 nm.
- Maximum power dissipation is rated at 75 mW.
- Provides a viewing angle of 20 degrees for focused illumination.
- Equipped with two pins and gull-wing, yoke, or z-bend lead types for flexibility.
- Packaged in tape and reel format suitable for automated assembly.
- Designed with a clear lens finish for optimal brightness and clarity.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Kingbright KM2520CGCK09 is a green LED designed in a compact subminiature surface mount package sized 2.5 x 2 x 2.8 mm. Operating at a forward voltage of 2.5 V and maximum forward current of 150 mA, it delivers bright illumination with a luminous intensity of 800 mcd.
This Surface Mount Technology (SMT) LED features a dome-shaped clear lens that ensures a narrow 20° viewing angle, making it ideal for precise visual indicators in electronic devices, instrumentation, and control panels.
The LED is available with various lead types including gull-wing, yoke, and z-bend to accommodate different PCB mounting configurations. The tape and reel packaging streamlines industrial-scale assembly and manufacturing processes.
Certified with RoHS compliance, this LED offers reliable solid-state operation with a maximum power dissipation of 75 mW and no automotive certification, making it suited for general electronics, instrumentation, and display applications.
Compact subminiature SMT package measuring 2.5 x 2 x 2.8 mm. Bright green light emission at 570 nm wavelength. Maximum forward current of 150 mA and power dissipation of 75 mW. Clear dome lens with a 20° narrow viewing angle.
Multiple lead types available: gull-wing, yoke, z-bend. Tape and reel packaging for automation compatibility. RoHS compliant for environmental safety.
These LEDs are widely used in industrial electronics, instrumentation, control panels, and other applications requiring compact, efficient, and reliable indicators. Explore the Kingbright KM2520CGCK09 LED at EnvMart for advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 150 mA.
The dominant wavelength of the green light emitted by this LED is 570 nm.
The lens dimensions for this LED are 2.5 x 2 x 2.8 mm.
This LED has a narrow viewing angle of 20 degrees.
It is packaged in tape and reel format, which is suitable for automated assembly.
The LED is available with gull-wing, yoke, and z-bend lead types.
The maximum power dissipation for this model is rated at 75 mW.
This LED has a luminous intensity of 800 mcd.
This model uses a surface mount type.
Yes, this LED is compliant with RoHS standards, ensuring environmental safety.
This LED is suitable for use in industrial electronics, instrumentation, control panels, and as visual indicators.
The forward voltage required for this model is 2.5 V.
