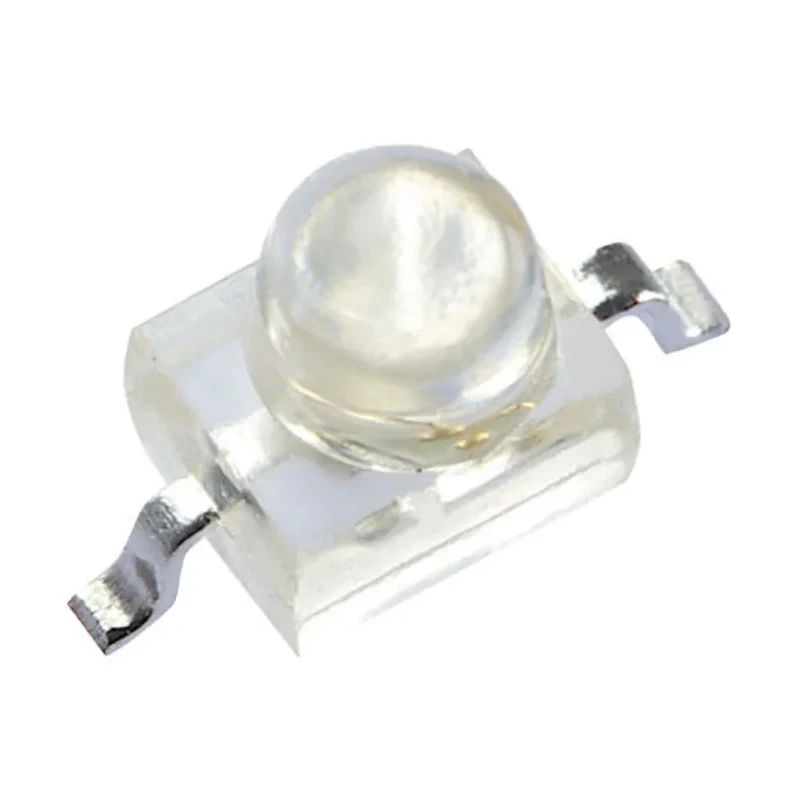

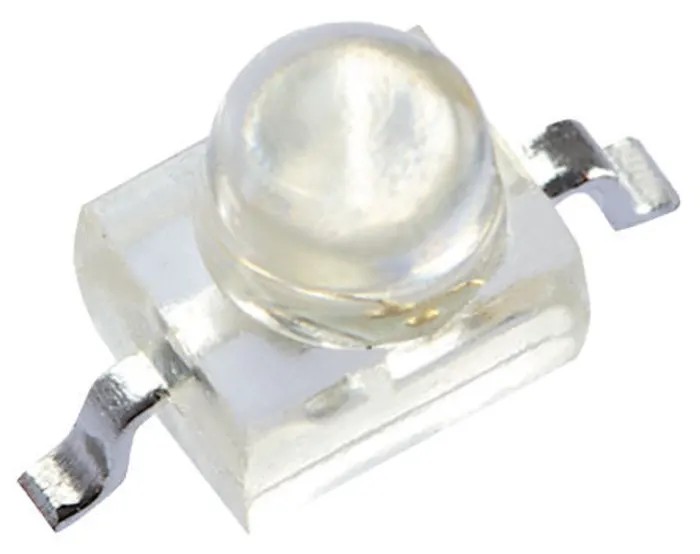

Kingbright 2.5 V Yellow Subminiature Surface Mount LED KM2520SYCK03
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM2520SYCK03 |
| Packaging | 1000 pieces per Reel |
| Mount Type | Surface |
| Series | KM2520 |
| Maximum forward current | 30mA |
| Viewing angle | 20 ° |
| Package Type | Subminiature |
| Standards/Approvals | RoHS Compliant |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 2.3 cd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 2.5 x 2 x 2.8 mm |
| Lens Shape | Dome |
| Lead types | Gull-wing (GW), yoke and z-bend |
Key Features
- Subminiature surface mount package suitable for compact electronic assemblies.
- Yellow LED color with a dominant wavelength of 590nm.
- Maximum forward current of 30mA for reliable operation.
- Low power dissipation of 75mW ensuring energy efficiency.
- Viewing angle of 20 degrees with a dome-shaped clear lens.
- Package dimensions measuring 2.5 x 2 x 2.8 mm for space-saving design.
- Available in 1000 pieces per reel packaging for production ease.
- Compliant with RoHS environmental standards.
Product Description
Kingbright KM2520SYCK03 is a yellow LED designed with a subminiature surface mount package, providing a low profile and compact form factor suitable for modern electronic device assemblies. It operates at a forward voltage of 2.5 volts with a maximum forward current of 30mA and dissipates up to 75mW of power.
This LED has a dominant wavelength of 590nm producing bright yellow light with a luminous intensity of 2.3 cd. The dome-shaped clear lens design offers a focused viewing angle of 20 degrees, making it ideal for indicator and display applications in industrial, laboratory, and electronic consumer products.
The KM2520 series provides different lead types including gull-wing (GW), yoke, and z-bend, catering to various PCB mounting techniques. The compact package dimensions are 2.5 x 2 x 2.8 mm, facilitating integration into miniature circuits while maintaining reliable performance.
Supplied in reels of 1000 pieces, these LEDs are optimized for automated insertion machinery boosting manufacturing efficiency. The product is RoHS compliant, ensuring it meets environmental and health safety standards.
Typical use cases include electronic component indicators, commercial display devices, automotive lighting (non-automotive standard), and general lighting applications requiring long life and solid-state reliability.
Subminiature surface mount package suitable for compact electronic assemblies. Yellow LED color with a dominant wavelength of 590nm. Maximum forward current of 30mA for reliable operation. Low power dissipation of 75mW ensuring energy efficiency.
Viewing angle of 20 degrees with a dome-shaped clear lens. Package dimensions measuring 2.5 x 2 x 2.8 mm for space-saving design. Available in 1000 pieces per reel packaging for production ease. Compliant with RoHS environmental standards.
Lead types include gull-wing (GW), yoke, and z-bend options for versatile mounting. Manufactured in China with high-quality solid-state reliability. Explore more LED components and lighting solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30mA, which ensures reliable operation.
The dominant wavelength of the yellow LED is 590nm, producing bright yellow light.
The package dimensions of the KM2520SYCK03 LED are 2.5 x 2 x 2.8 mm, making it suitable for compact electronic assemblies.
This LED has a viewing angle of 20 degrees, which is facilitated by its dome-shaped clear lens design.
The maximum power dissipation for this model is 75mW, ensuring energy efficiency during operation.
The KM2520SYCK03 LED is available with gull-wing (GW), yoke, and z-bend lead types, accommodating various PCB mounting techniques.
Yes, this LED is RoHS compliant, meeting environmental and health safety standards.
The KM2520SYCK03 LED is supplied in packaging of 1000 pieces per reel, optimized for production ease.
The luminosity of this LED is 2.3 candela (cd), providing bright illumination for various applications.
The forward voltage for the KM2520SYCK03 LED is 2.5 volts, which is necessary for its operation.
This LED is suitable for indicator and display applications in industrial, laboratory, and electronic consumer products.
The KM2520SYCK03 LED is manufactured in China.
