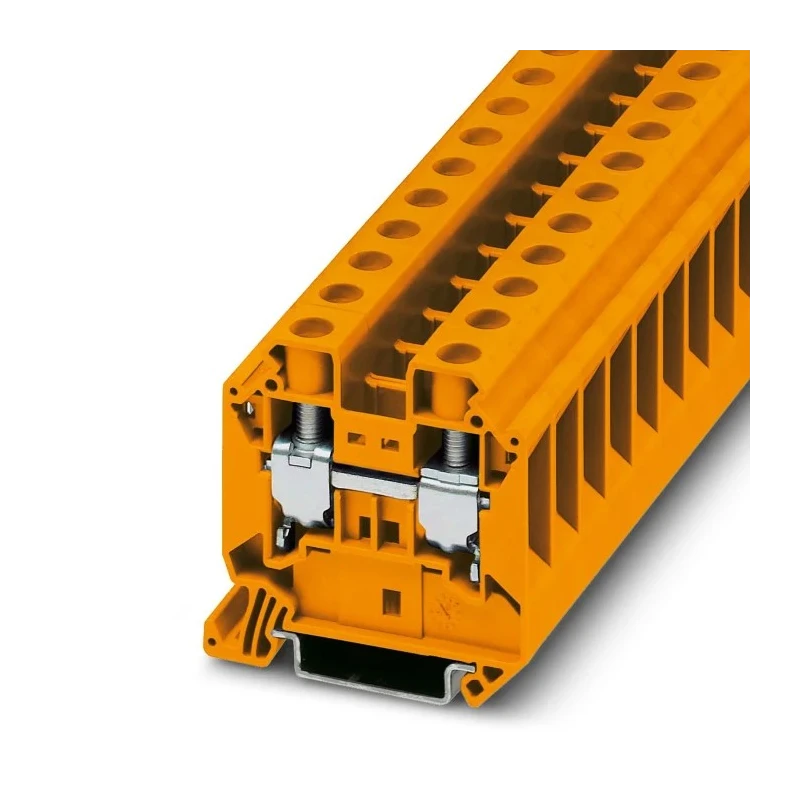

Phoenix Contact UT 16 OG Series Feed Through Terminal Block Orange 1-Level Screw Terminal, 1.5mm² to 25mm², 76A, 1kV 3047468

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact UT 16 OG Series Feed Through Terminal Block Orange 1-Level Screw Terminal, 1.5mm² to 25mm², 76A, 1kV 3047468

Name: Phoenix Contact UT 16 OG Series Feed Through Terminal Block Orange 1-Level Screw Terminal, 1.5mm² to 25mm², 76A, 1kV 3047468
Brand: PHOENIX CONTACT
SKU: 134739



Category DIN Rail Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Turkey
Voltage	1kV
Brand	Phoenix Contact
Colour	Orange
Model	3047468
Series	UT 16 OG
Termination Type	Screw
Number of Levels	1
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	4AWG
Cable CSA	1.5, 25mm²
Terminal Block Current	76A
Feed-through terminal block, nom. voltage	1000 V, nominal current: 76 A, connection method: Screw connection, number of connections: 2, cross section: 1.5 mm² - 25 mm², AWG: 16 - 4, width: 12.2 mm, color: orange, mounting type: NS 35/7,5, NS 35/15

Key Features

Designed for mounting on NS 35/7.5 and NS 35/15 DIN rails.
Supports minimum AWG 16 and maximum AWG 4 wire sizes.
Constructed in vibrant orange color for easy identification.
Offers reliable screw connection with two connections per terminal block.
Tested for applications including railway standards.
Compact width of 12.2 mm optimizes panel space.
Feed-through design allows streamlined conductor routing.
Nominal voltage rating of 1000 V and nominal current of 76 A ensures robust performance.

Product Description

Phoenix Contact 3047468 UT 16 OG Series feed through terminal block is engineered for industrial and electronic applications demanding reliable and efficient DIN rail terminal solutions. This product features a single-level feed through configuration with screw termination, compatible with wire cross sections ranging from 1.5 mm² to 25 mm² (AWG 16 to AWG 4).

The terminal block supports nominal voltage up to 1000 V and nominal current up to 76 A, suitable for electrical distribution and control panels in manufacturing, HVAC, railway, and industrial automation environments. Its orange coloration facilitates quick visual identification during maintenance and installation.

Measuring a compact width of 12.2 mm, the unit mounts seamlessly onto standard NS 35/7.5 and NS 35/15 DIN rails, maintaining high wiring density. The screw termination ensures secure and vibration-proof connections, accommodating two conductor connections per block.

Tested to meet demanding industry requirements, this terminal block does not have hazardous area certifications but offers robust performance without requiring specific standards or approvals. Its versatile feed through design allows linking circuits easily with the option to connect terminal blocks with diverse connection technologies using reducing bridges.

Designed for NS 35/7.5 and NS 35/15 DIN rail mounting. Orange color provides enhanced visibility in electrical assemblies. Suitable for wire cables sized 1.5 to 25 mm² cross-sectional area. Supports a nominal current of 76 A and nominal voltage of 1000 V.

Secure screw connection technology with two connection points. Compact 12.2 mm width enables high-density terminal block assembly. Applicable to industrial, railway, and power distribution use cases. Allows construction of power blocks with reducing bridges across connection types.

This Phoenix Contact feed through terminal block, model 3047468, is crafted in Turkey and represents a new condition component. It is ideal for customers looking for high quality, durable terminal blocks for industrial electronic control panels and power connectors.
