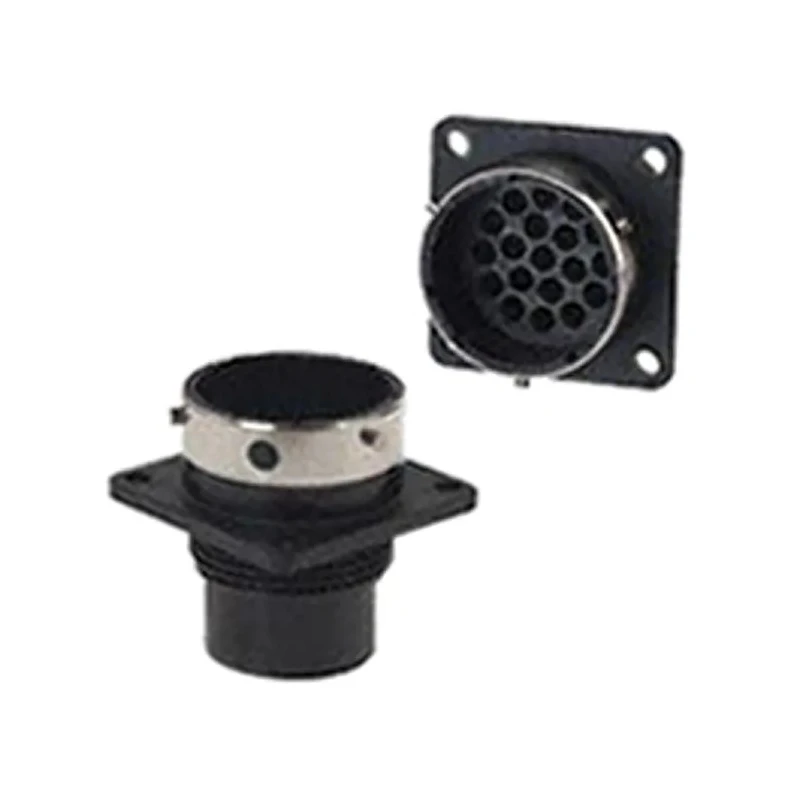

Souriau Sunbank by Eaton Circular Connector 19 Contacts Flange Standard Plug Male IP65 UTG01619P

Souriau Sunbank by Eaton UTG01619P Circular Connector is a 19 contact flange mount standard connector configured as a plug with male contacts, providing IP65 ingress protection. Designed for demanding industrial and electronic environments, this connector offers reliable and durable performance with a thermoplastic housing rated for operating temperatures from -55°C to 125°C.

The connector features a secure flange mount, gold-plated contacts with nickel material ensuring high conductivity and corrosion resistance. Its straight orientation and plug-in mating type guarantee error-free mating and robust connection. This connector belongs to the UTG series featuring a shell size 16 and includes a spring-loaded metal bayonet ring coupling system for reliable locking.

The housing material is glass-filled thermoplastic that provides high resistance to mechanical stress and environmental factors. The connector supports crimp termination and a current rating of 13A per contact, making it suitable for industrial power and signal transmission applications. The product does not list additional certifications but meets functional requirements for industrial circular connectors.

The metal bayonet coupling with plastic connectors provides an optimal blend of lightweight and mechanical stability, enhanced by nickel plating on the outer body and bayonet ring to meet EMC standards. Cable mounting shells include metal PG tubes with twin ferrule systems to ensure 360-degree cable shield continuity.

Ideal for industrial equipment, power distribution, and electronic component integration, this connector facilitates secure and efficient connections. Contact pins must be ordered separately to match specific wiring needs. Set contains 1 circular connector plug with 19 male contacts, flange mount type, and standard size in UTG series configuration.

Features a flange mount type ensuring secure attachment. Standard size connector with 19 gold-plated nickel contacts. Operates reliably between -55°C and 125°C temperature range. Plug configuration with male contact gender and straight orientation.

IP65 rated thermoplastic housing for dust and water resistance. Designed for plug-in mating type with crimp termination. Supports current rating of 13A per contact. Series UTG with shell size 16 and robust metal bayonet coupling.

Compatible with cable shells providing 360° cable shield continuity. Suitable for industrial, electronic, power, and circular connector applications. Explore EnvMart's extensive range of Industrial Circular Connectors and related electrical components for your engineering and manufacturing needs.
