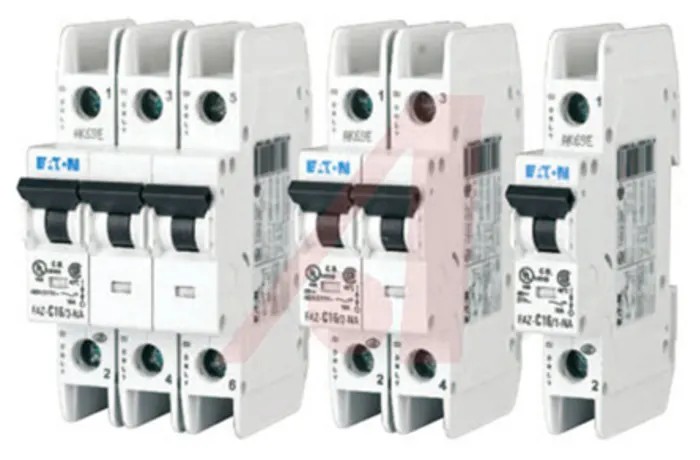

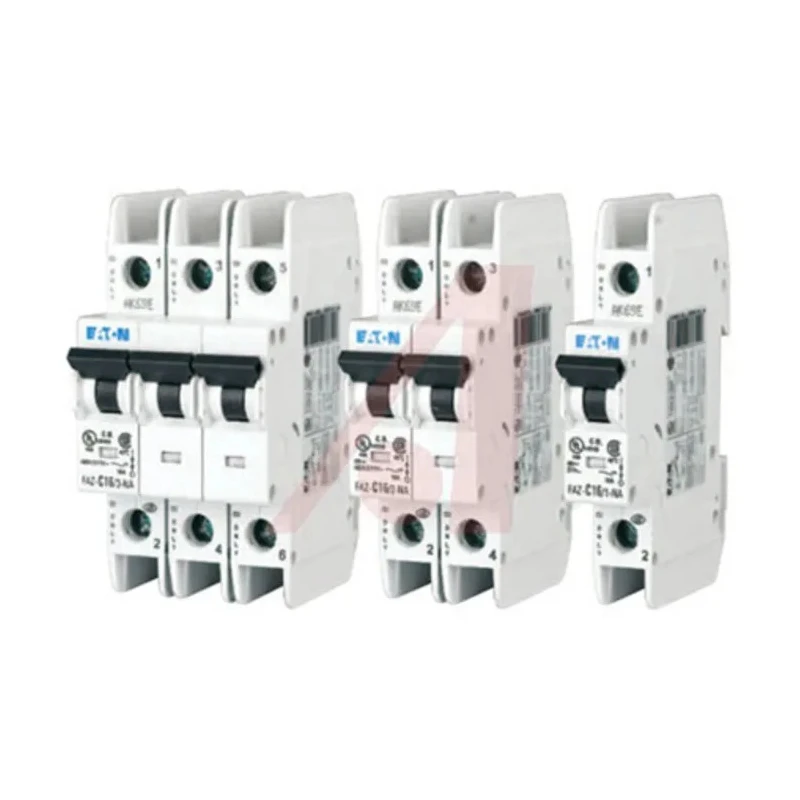

Eaton 3-Pole Miniature Circuit Breaker 30A Type C 415V AC 60V DC 10kA Breaking Capacity 102253 FAZ-C30/3-NA
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 102253 FAZ-C30/3-NA |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 105mm |
| Mount Type | DIN Rail |
| Current Rating | 30A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Rated for 415V AC and 60V DC voltage operation.
- Breaking capacity of 10 kA provides high short circuit interruption capability.
- Compact design with 105mm width and 76mm depth for DIN rail mounting.
- Features thermal magnetic tripping mechanism with instantaneous break time.
- Equipped with toggle switch reset actuator and screw terminal type.
- IP20 rated for protection against solid objects.
- Suitable for high inductive loads such as fluorescent lighting and small motors.
- Meets IEC 60947-2 standards ensuring safety and durability.
Product Description
Eaton 102253 FAZ-C30/3-NA miniature circuit breaker is a high-quality 3-pole device designed for robust low-voltage circuit protection applications. It supports a current rating of 30 amperes with Type C tripping characteristics, ideal for circuits with moderate surge currents including fluorescent lighting systems and small motors. The breaker is rated for AC operation up to 415 volts and DC operation up to 60 volts, providing versatility for various industrial and commercial environments.
This circuit breaker boasts a breaking capacity of 10 kiloamperes, ensuring reliable interruption of short circuit faults to protect electrical circuits and connected equipment from damage. The compact design, with a width of 105 mm and depth of 76 mm, fits on standard DIN rails for straightforward installation within control panels.
The thermal magnetic trip mechanism offers six levels of over-current protection with instantaneous trip action for short circuits. The toggle switch actuator features a trip-free design preventing bypassing of the protective function and can be sealed in both ON and OFF positions. Screw terminals provide secure electrical connections.
Rated with an IP20 enclosure class, this MCB delivers protection against solid foreign objects while maintaining ease of access for operation and inspection. Compliance with IEC 60947-2 ensures adherence to international electrical safety standards, making it suitable for industrial, commercial, and residential electrical installations.
Rated AC voltage: 415V AC. Rated DC voltage: 60V DC. Breaking capacity: 10kA. Number of poles: 3. Tripping curve: Type C. Mounting: DIN Rail. Terminal type: Screw. IP rating: IP20.
The Eaton FAZ series miniature circuit breaker is ideal for providing supplementary protection in electrical distribution systems, control panels, and equipment requiring protection against overload and short circuit. It offers reliable operation across a wide temperature range from -40°C to +75°C, making it suitable for extreme environmental conditions commonly found in industrial settings.
Explore the Eaton FAZ series Miniature Circuit Breakers for advanced circuit protection solutions designed to enhance safety and reliability in electrical installations. Browse our comprehensive range to find compatible products tailored to your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 415V AC and 60V DC voltage operation.
The breaking capacity is 10 kA, providing high short circuit interruption capability.
This model has 3 poles, making it suitable for three-phase applications.
It has a width of 105 mm and a depth of 76 mm, designed for DIN rail mounting.
It features a thermal magnetic tripping mechanism with instantaneous break time.
The circuit breaker has Type C tripping characteristics, ideal for circuits with moderate surge currents.
It is equipped with screw terminals for secure electrical connections.
It has an IP20 rating, providing protection against solid objects.
It is suitable for high inductive loads such as fluorescent lighting and small motors.
It operates effectively across a wide temperature range from -40°C to +75°C.
This model is designed for DIN rail mounting, facilitating straightforward installation.
It meets IEC 60947-2 standards, ensuring adherence to international electrical safety standards.
