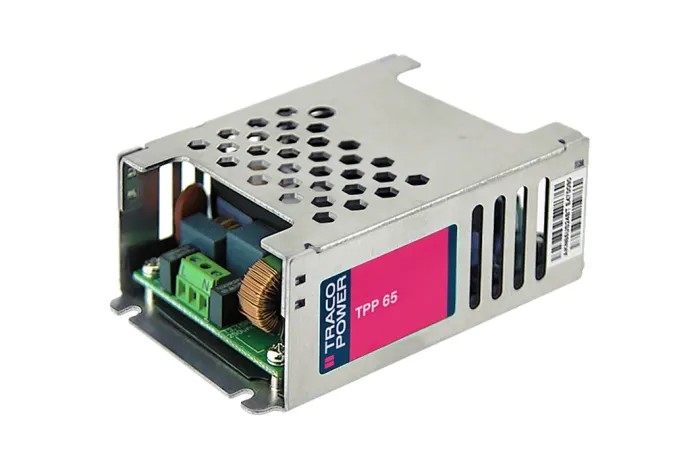

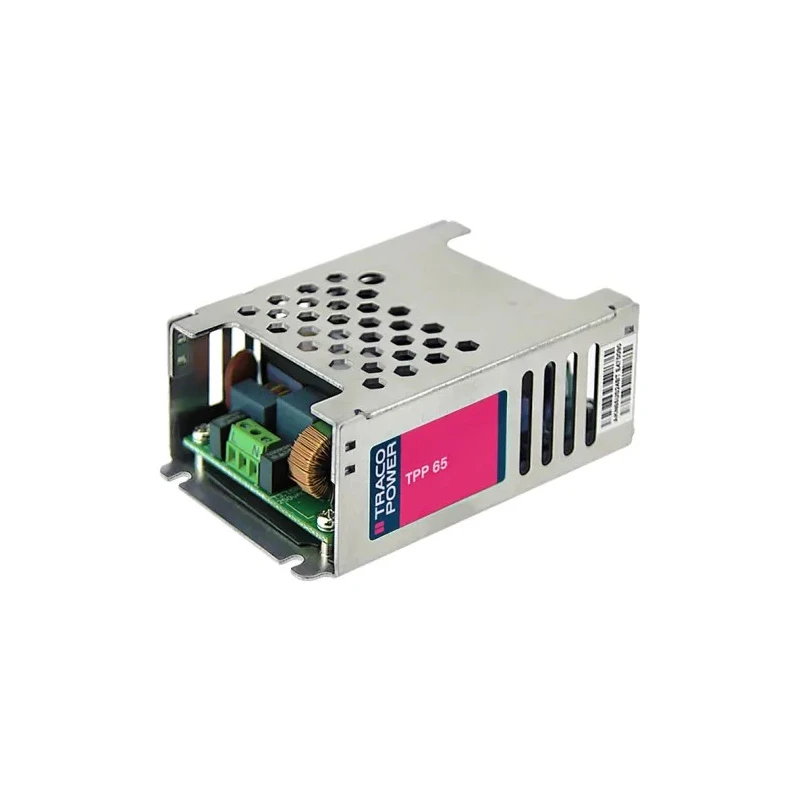

TRACOPOWER Switching Power Supply 5 V DC 65 W Chassis Mount, Medical Grade TPP 65-105

The TRACOPOWER TPP 65-105 Switching Power Supply is a compact medical-grade power supply delivering 65 watts with a regulated 5 V DC output. Designed for chassis mounting, this power supply operates over a wide AC input voltage range from 85 V AC to 264 V AC, making it suitable for global applications.

Equipped with medical safety approvals and compliance with IEC 60601-1, EN 60601-1, and ANSI/AAMI ES 60601-1 standards, it features 2 x MOPP isolation ensuring patient and device safety. The unit exhibits excellent efficiency of approximately 90%, minimizing heat dissipation and energy waste.

With a maximum output current of 10 A, the TPP 65-105 is capable of powering a variety of sensitive medical devices and other industrial equipment. Its operating temperature range from -40°C to +60°C with load derating ensures reliable performance in harsh environments.

The power supply is built with a low leakage current and incorporates a built-in class B EMI filter, providing clean and safe power while meeting the latest electromagnetic compatibility requirements. Its compact dimensions (60.5 mm width and 33.5 mm depth) allow integration into space-constrained applications.

This switching power supply is ideal for medical, industrial, and laboratory applications requiring high safety standards and stable power output. Its robust construction and approvals facilitate use in demanding environments where safety and reliability are critical.

Wide input voltage range of 85 V AC to 264 V AC for flexible operation. Single output delivering 5 V DC with 10 A maximum current. Meets stringent medical safety certifications with 2 x MOPP isolation. High efficiency up to 90%, reducing power consumption and heat.

Compact chassis mount form factor suitable for space-limited installations. Operational temperature range from -40°C to +60°C with derating at higher loads. Low leakage current and Class B EMI filter for safe, interference-free use.

The TRACOPOWER TPP 65-105 Switching Power Supply combines medical-grade safety, robust performance, and high efficiency to meet the needs of healthcare, industrial, and laboratory power requirements. Available with comprehensive certifications, it is suited to demanding environments requiring reliable DC supply at 5 volts.
