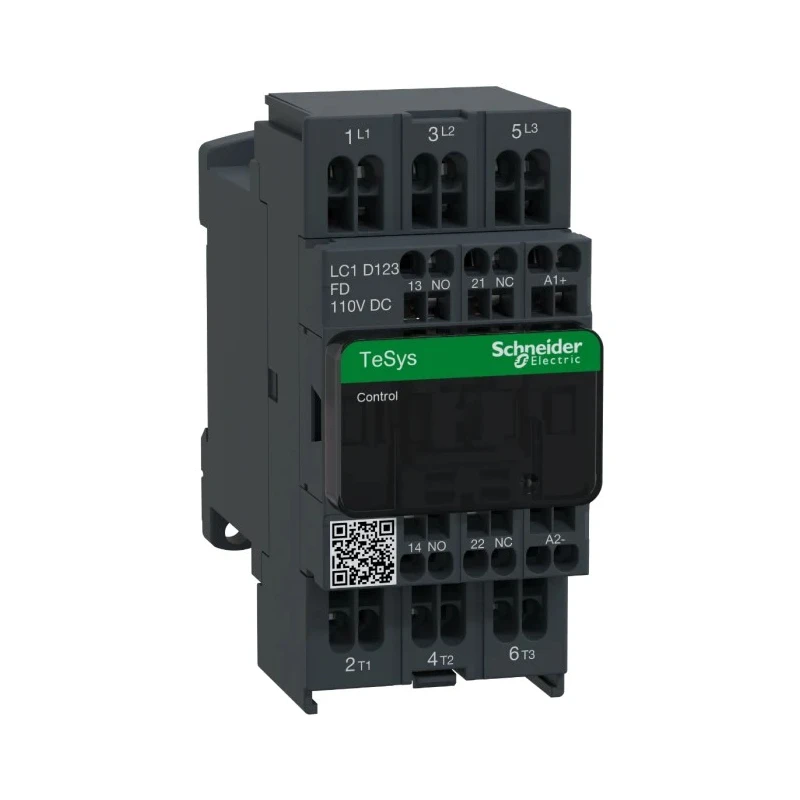

Schneider Electric LC1D123FD Contactor, 110V DC Coil, 3-Pole, 16A, 7.5 kW Power Rating LC1D123FD

Schneider Electric LC1D123FD is a high-performance contactor engineered for motor control and resistive load applications. It features a 110V DC coil equipped with a transient suppressor module that enhances coil longevity and operational stability. This contactor supports 3 poles (3NO) and a contact current of 16A, making it suitable for switching three-phase motors and resistive loads effectively.

Designed for industrial and automation applications, the LC1D123FD contactor operates safely within a temperature range of -5°C to 60°C, providing reliable functionality under varied environmental conditions. Its compact dimensions (99mm length, 45mm width, and 95mm depth) allow for efficient DIN rail mounting or screw fixing, optimizing control panel space.

The device includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, with the NC contact being mirror certified for enhanced safety. The use of spring terminals for load and auxiliary connections facilitates secure and maintenance-friendly installation.

Schneider Electric's LC1D series exemplifies compliance with international standards including IEC, UL, CSA, CCC, EAC, and RoHS, ensuring global application readiness. This product carries a Better World claim for designed for disassembly, reflecting its sustainable design philosophy.

The contactor is rated for motor control applications up to 7.5 kW at 110 V DC coil voltage, suitable for applications involving 300 V DC and 690V AC contact voltages. It offers a high operating cycle rate of up to 3600 cycles per hour, fitting demanding industrial environments such as manufacturing, automation, electrical installations, and HVAC systems.

Equipped with a 110V DC coil featuring a transient suppressor module. Highly durable and reliable for operational rates up to 3600 cycles/hour. Compact DIN rail or screw mounting for versatile installation. 3 normally open main contacts with rated current of 16A.

1 NO plus 1 NC auxiliary contacts with mirror certification on NC. Certified to IEC, UL, CSA, CCC, EAC, and RoHS standards. Suitable for motor control and resistive load switching applications. Operating temperature range from -5°C to 60°C.

Spring terminal connections for easy wiring. Better World product designed for disassembly.

This Schneider Electric LC1D123FD contactor is an ideal solution for electrical and industrial automation professionals seeking reliable and efficient switching components. Discover more products in our Contactors category at EnvMart.
