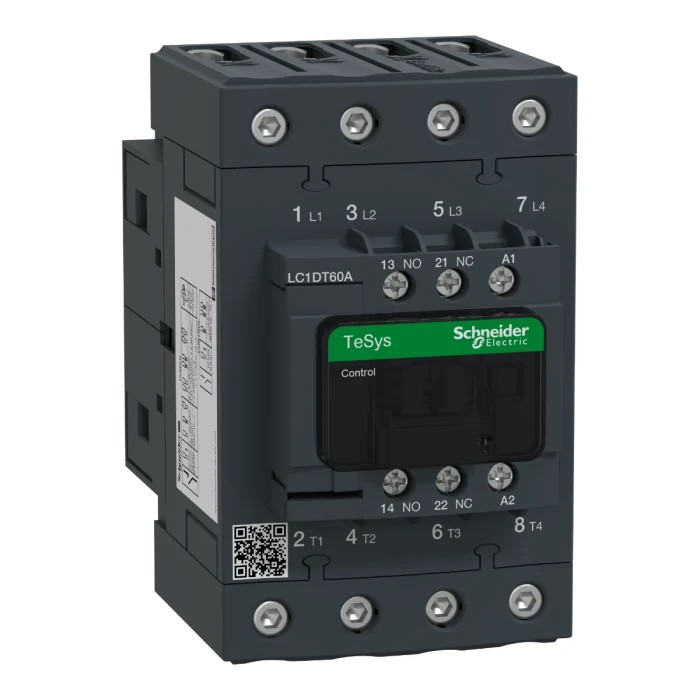

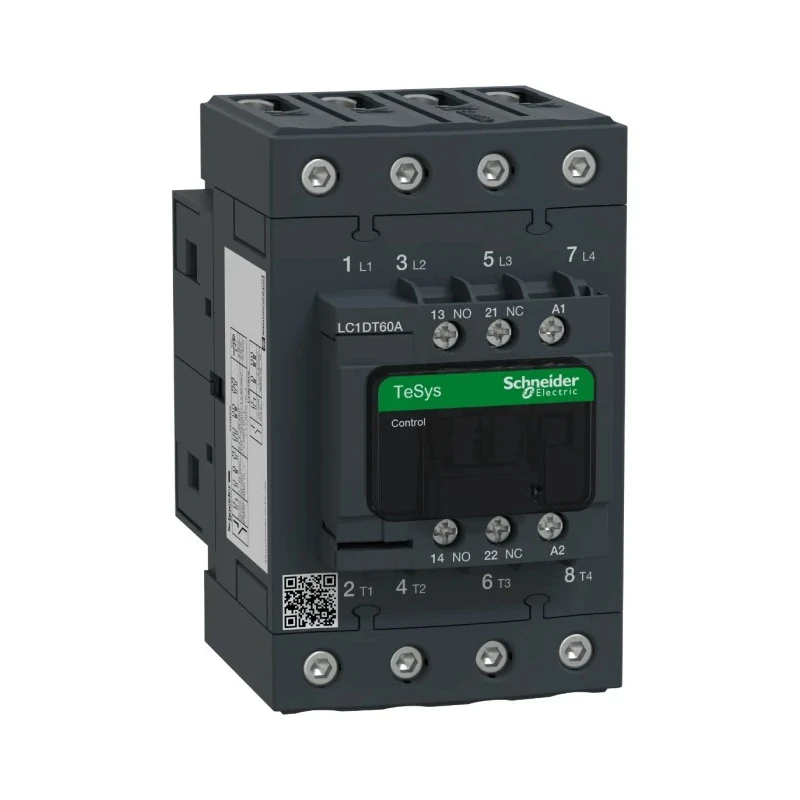

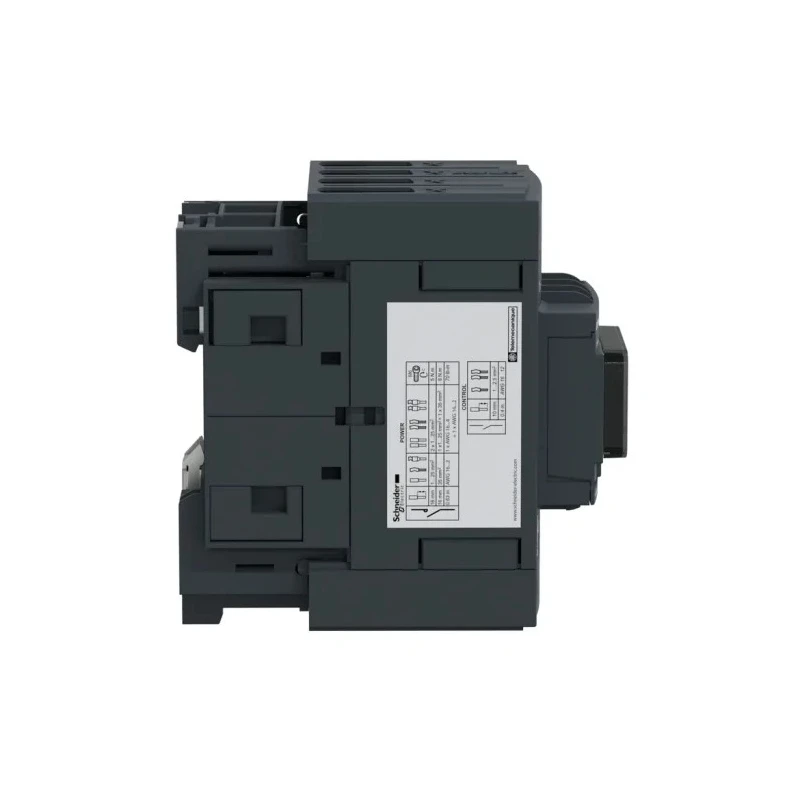

Schneider Electric TeSys D Contactor, 240V AC Coil, 4-Pole, 60A Resistive Load, 5.8W, 260V Control Circuit LC1DT60AU7

Schneider Electric LC1DT60AU7 is a robust TeSys D contactor engineered for industrial automation and motor control applications. It operates on a 240V AC coil and accommodates resistive loads up to 60A at a contact voltage of 690V.

This 4-pole contactor includes four normally open (NO) power contacts and two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), with the NC contact being mirror certified for enhanced operational safety.

The device is designed for reliable use at high operational rates of up to 3600 cycles per hour and can function optimally in ambient temperatures ranging from -5°C to 60°C. Its compact form factor (122mm length x 70mm width x 120mm depth) supports DIN rail or screw mounting, facilitating flexible installation in electrical panels.

The TeSys D contactor features screw clamp terminals for both power and control circuits, with control voltage rated at 260V and power consumption of 5.8W. Its construction ensures compliance with major international certifications including IEC, UL, CSA, CCC, EAC, and RoHS/REACh, marking it as a Green Premium product designed for easier disassembly and sustainability.

Typical uses span industrial automation systems, motor starter assemblies, switching applications for motor loads, and power control and signalling equipment in manufacturing, HVAC, and commercial environments. The contactor supports integration in control systems requiring reliable switching and operational safety.

The contactor is suitable for both motor control and resistive load applications. Its 4 normally open poles allow for versatile motor starter configurations. The auxiliary contacts (1 NO and 1 NC) provide additional control and signalling options.

Durable construction ensures long service life under demanding industrial conditions. Compliance with multiple international standards supports global deployment. Compact design reduces panel space requirements. DIN rail mounting and screw fixing options enable easy installation.

Green Premium compliance demonstrates environmental responsibility. Reliable screw clamp terminals enhance connection safety and maintenance. Explore the range of Schneider Electric TeSys Contactors at EnvMart for high-performance industrial control solutions designed to meet rigorous quality and safety standards.
