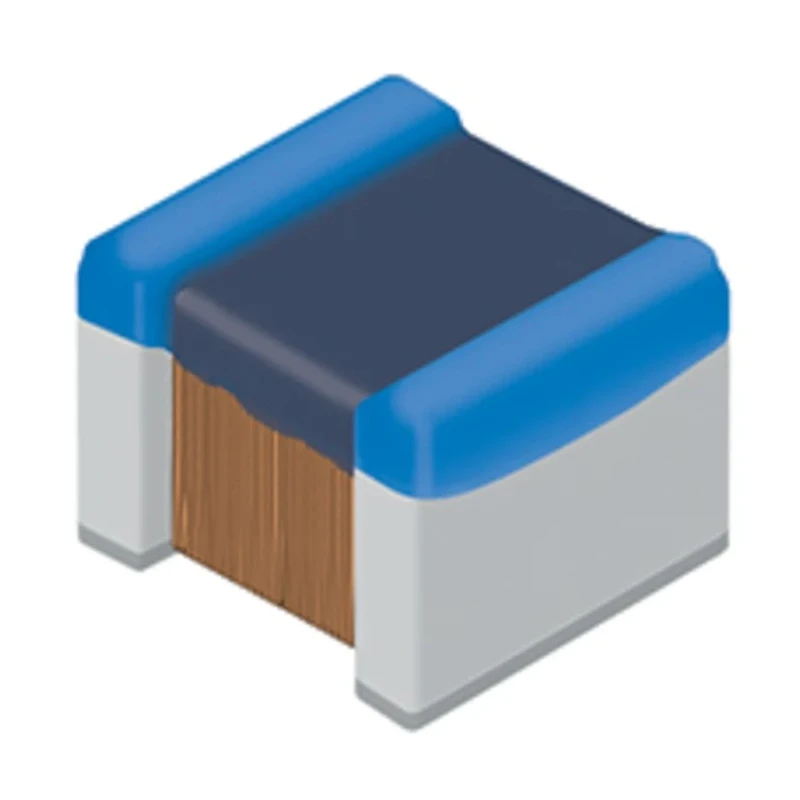

Murata Wirewound Shielded Surface Mount Inductor 1 μH ±5% 370 mA DC 290 MHz Q35 LQW2UAS1R0J00L

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Shielded Surface Mount Inductor 1 μH ±5% 370 mA DC 290 MHz Q35 LQW2UAS1R0J00L

Name: Murata Wirewound Shielded Surface Mount Inductor 1 μH ±5% 370 mA DC 290 MHz Q35 LQW2UAS1R0J00L
Brand: Murata
SKU: 134232
Price: 0.11 USD
Availability: InStock



Category Inductors Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Dimensions	2.62 x 2.45 x 1.83 mm
Height	1.83mm
Length	2.62mm
Model	LQW2UAS1R0J00L
Depth	2.45mm
Operating Temp	-55→ +125°C
Packaging	Paper Tape
Series	LQW
Maximum Operating Temperature	125°C
Package Type	1008
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Core
Inductance	1μH
Standards/Approvals	RoHS
Package/Case	1008
Maximum DC Current	370mA
Pin Count	2
Maximum DC Resistance	1.75Ω
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	290MHz
Minimum Quality Factor	35
Inductor Construction	Wirewound

Key Features

Features a non-magnetic core suitable for high frequency signal line circuits.
Supports maximum DC current of 370 mA for reliable operation.
Compact 1008 package with dimensions 2.62 x 2.45 x 1.83 mm.
Has a minimum quality factor of 35 and maximum self resonant frequency of 290 MHz.
Designed with solder termination style and RoHS compliant construction.
Operates reliably between -55°C and 125°C temperature range.
Provides shielding to minimize electromagnetic interference.
Packaged on paper tape for efficient automated assembly.

Product Description

Murata LQW2UAS1R0J00L is a shielded wirewound surface mount inductor featuring a non-magnetic core, ideal for high frequency electronic circuits. This surface mount inductor offers 1 μH inductance with a ±5% tolerance and supports a maximum DC current of 370 mA, ensuring stable performance in demanding applications.

The compact 1008 package case with dimensions of 2.62 mm length, 2.45 mm depth, and 1.83 mm height allows for space-saving PCB layouts. It features a high quality factor with a minimum of 35 and a maximum self-resonant frequency up to 290 MHz, suitable for RF signal filtering and noise suppression.

The component is RoHS compliant and designed for solder termination, making it suitable for automated surface mount technology assembly lines. Operating temperature range from -55°C to 125°C ensures durability in industrial and commercial environments.

This inductor includes shielding to reduce electromagnetic interference, enhancing circuit reliability in sensitive electronic applications. Non-magnetic core construction improving signal integrity. Compact 1008 case footprint for dense PCB designs.

High quality factor suitable for RF and high frequency circuits. Wide operating temperature range for varied environments. Solder termination facilitates easy mounting. Paper tape packaging supports automated production.

RoHS compliant for environmental safety. This Murata LQW2UAS1R0J00L inductor is perfect for use in industrial electronics, telecommunications, power management circuits, and precision instrumentation. Explore more Inductors and electronic components in EnvMart’s Electronics & Electricals catalog to find the right parts for your manufacturing and industrial needs.
