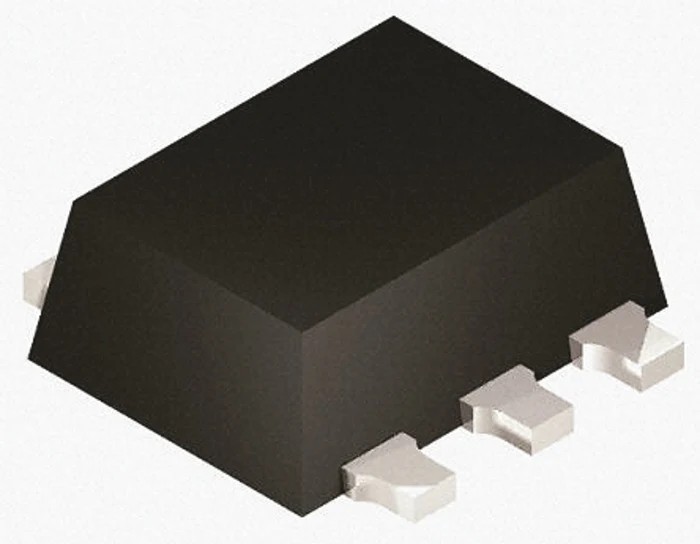

DiodesZetex Surface Hall Effect Sensor 1.6 V to 3.6 V, Chopper Stabilised, SOT-553, 5-Pin AH1895-Z-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 50μs |
| Height | 620μm |
| Length | 1.7mm |
| Model | AH1895-Z-7 |
| Technology | Chopper Stabilised Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | AH1895 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-553 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.6V |
| Magnetic Type | Omnipolar |
Key Features
- Operates with chopper stabilised Hall Effect technology for reliable performance.
- Designed for omnipolar magnetic field sensing with a 50 microseconds response time.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Compact dimensions of 1.7 mm length, 1.25 mm width, and 620 micrometers height.
- Surface mount type convenient for automated PCB assembly processes.
- Package includes 5 pins suitable for various sensor IC configurations.
- Compliant with Pb-Free and RoHS environmental standards.
Product Description
DiodesZetex AH1895-Z-7 Surface Hall Effect Sensor is a high-performance, chopper stabilised Hall Effect sensor IC designed for accurate magnetic field detection in industrial, automotive, and consumer electronics applications. It features a compact surface-mount SOT-553 package with 5 pins, facilitating integration into space-constrained PCB layouts.
The sensor operates at a minimum supply voltage of 1.6 V up to a maximum of 3.6 V, enabling compatibility with low-voltage power systems. It exhibits an omnipolar magnetic sensing ability, meaning it responds to both north and south magnetic poles, making it versatile for various switching and sensing functions.
Designed for harsh environments, the AH1895-Z-7 supports operational temperatures ranging from -40°C to 85°C, suitable for industrial and automotive conditions. Its fast response time of 50 microseconds ensures rapid switching in motion sensing and proximity applications.
The device complies with Pb-Free and RoHS directives, ensuring it meets modern environmental and safety standards. With a length of 1.7 mm, width of 1.25 mm, and height of 620 µm, this sensor provides a compact footprint without compromising electrical performance.
This sensor IC is ideal for non-contact switching, position sensing, and speed detection in manufacturing, HVAC systems, robotics, automotive electronics, and more. Its surface mount package allows for efficient automated handling and assembly.
Operates with chopper stabilised Hall Effect technology for reliable performance. Omnipolar magnetic sensing with fast 50 µs response time. Wide temperature range from -40°C to 85°C for durability. Compact 5-pin SOT-553 surface mount package.
Compliant with Pb-Free and RoHS environmental standards. Explore the full range of Sensor ICs and Hall Effect sensors at EnvMart to support your electronic designs with trusted components from industry-leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The response time of this Hall Effect sensor is 50 microseconds, allowing for rapid switching in various applications.
The AH1895-Z-7 operates within a temperature range of -40°C to 85°C, making it suitable for industrial and automotive environments.
This sensor operates with a supply voltage ranging from a minimum of 1.6 V to a maximum of 3.6 V.
It comes in a compact SOT-553 surface mount package, which is convenient for automated PCB assembly processes.
This model features a 5-pin configuration, suitable for various sensor IC setups.
It utilizes chopper stabilised Hall Effect technology for reliable performance in magnetic field sensing applications.
This sensor is designed for omnipolar magnetic sensing, meaning it responds to both north and south magnetic poles.
The dimensions of this sensor are 1.7 mm in length, 1.25 mm in width, and 620 micrometers in height.
This sensor complies with Pb-Free and RoHS environmental standards, ensuring it meets modern safety and environmental requirements.
It is suitable for non-contact switching, position sensing, and speed detection in various fields including manufacturing, HVAC systems, and automotive electronics.
The compact dimensions allow for integration into space-constrained PCB layouts, making it ideal for a variety of electronic applications.
Yes, it is designed to operate effectively in harsh environments, with a wide temperature range and robust performance characteristics.
