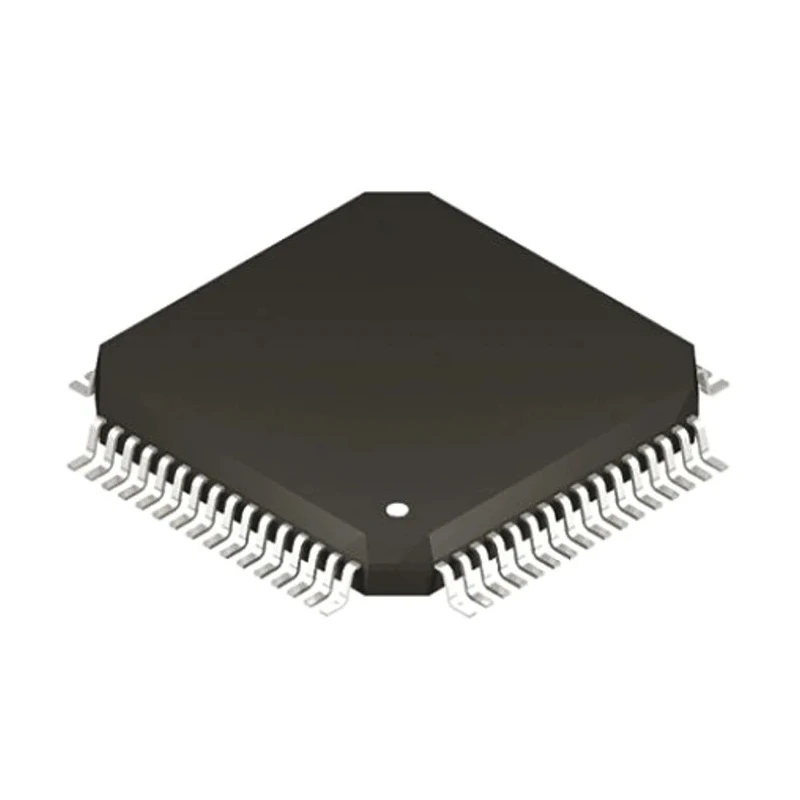

Microchip 16 bit Digital Signal Processor 60 MHz 536kB FLASH 64-Pin TQFP DSPIC33EP512GP806-I/PT

Microchip DSPIC33EP512GP806-I/PT is a 16 bit Digital Signal Processor designed with a 60 MHz maximum clock frequency and 536 kB FLASH program memory. Featuring a 64-Pin TQFP surface mount package, it offers a compact footprint of 10 mm width and length, and 1.05 mm height.

The processor integrates 52 kB of RAM and operates on a 16 bit data bus width using the dsPIC33E/PIC24E core. Its RISC architecture provides efficient code execution for complex digital signal applications requiring up to 70 MIPS processing speed.

This model supports advanced features such as 2 ADCs with 12 bit resolution covering 24 ADC channels, and 14 PWM channels distributed over 7 PWM units with high PWM resolution of 8.32 ns. It includes 4 timers each with 32 bit resolution suitable for precise timing functions.

Designed to meet automotive grade standards IEC 60730 and AEC-Q100 Rev H Grade 1, the DSP is suitable for automotive, industrial automation, and embedded system applications requiring robust performance and environmental durability, operating between -40°C and 85°C.

Additional supported protocol features include USB 2.0 OTG and CAN 2.0B support, providing flexible communication interface capabilities. The DSP IC uses a surface mount technology package and supports supply voltages from a minimum of 3V up to a maximum of 3.6V, suitable for low power embedded designs.

Ideal applications include motor control systems requiring high-performance digital filtering, digital power supply designs with high speed PWM and ADC conversions, as well as digital audio and speech processing tasks.

Set yourself up with advanced digital control capabilities using the Microchip DSPIC33EP512GP806-I/PT processor, suited for industrial and automotive embedded system designs. Explore more Microchip Digital Signal Processors and related semiconductor products in EnvMart's extensive catalogue.

Operates at maximum clock frequency of 60 MHz delivering up to 70 MIPS performance. Features 16 bit data bus width with 52 kB internal RAM. Program memory size is 536 kB in FLASH type for efficient code storage. Includes 2 ADCs, 14 PWM channels, and offers 12 bit ADC resolution.

Supports 24 ADC channels and 7 PWM units with 8.32 ns PWM resolution. Designed for automotive and industrial standards including IEC 60730 and AEC-Q100 Rev H Grade 1. Temperature operating range from -40°C to 85°C suitable for harsh environments.

Surface mount type with 64 pin count in a TQFP package sized 10 mm x 10 mm x 1.05 mm. Utilizes dsPIC33E/PIC24E core with RISC instruction set architecture optimized for DSP functions. Includes multiple timers, 4 total, with 32 bit resolution enhancing control capabilities.
