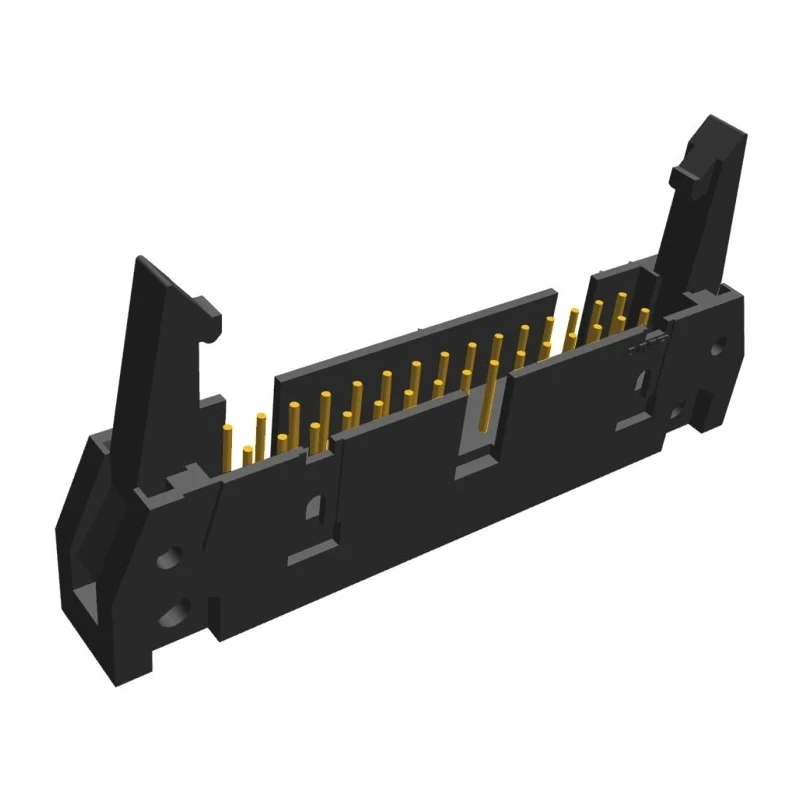

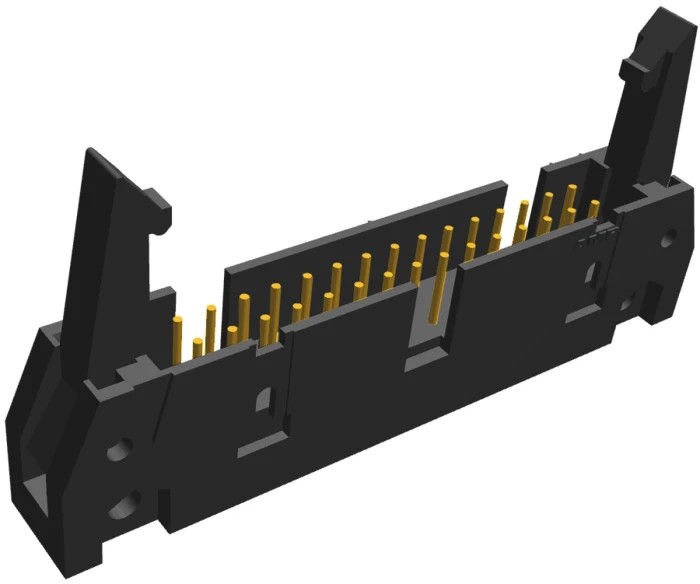

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 30 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499206-7

TE Connectivity 5499206-7 AMP-LATCH Series Straight Through Hole PCB Header features 30 male contacts arranged in 2 rows with a 2.54 mm pitch, designed for reliable wire-to-board connections. It includes a thermoplastic housing which is shrouded to protect the contacts and improve durability. The gold-plated brass contacts ensure low resistance and high conductivity, supporting a current of 1A and voltage rating of 250V. This PCB connector utilizes AMP-LATCH technology which provides universal ejection style with secure latch mechanisms allowing easy mating and removal with IDC ribbon cable receptacles.

The connector is designed for through-hole mounting, making it suitable for a wide variety of electronic applications including industrial controls, networking equipment, medical devices, storage systems, and business equipment. It operates across a wide temperature range from -65°C to 105°C ensuring robust performance in harsh environments. The male contacts have a tail pin length of 2.79 mm for secure solder termination. The AMP-LATCH series provides options for long and short ejector latches, accommodating mating connectors with or without strain relief.

Features and Benefits:. Military, center, and dual polarization for precise mating alignment. Ejector latches ensure secure connection and facilitate easy removal. Thermoplastic shrouded housing offers mechanical protection.

Gold-plated brass contacts provide reliable electrical performance. Suitable for diverse industrial, commercial, and medical uses.

This PCB header is a key component for designing reliable electronic systems needing secure and durable connections. Explore a wide range of TE Connectivity AMP-LATCH series connectors at EnvMart for your industrial and manufacturing needs.
