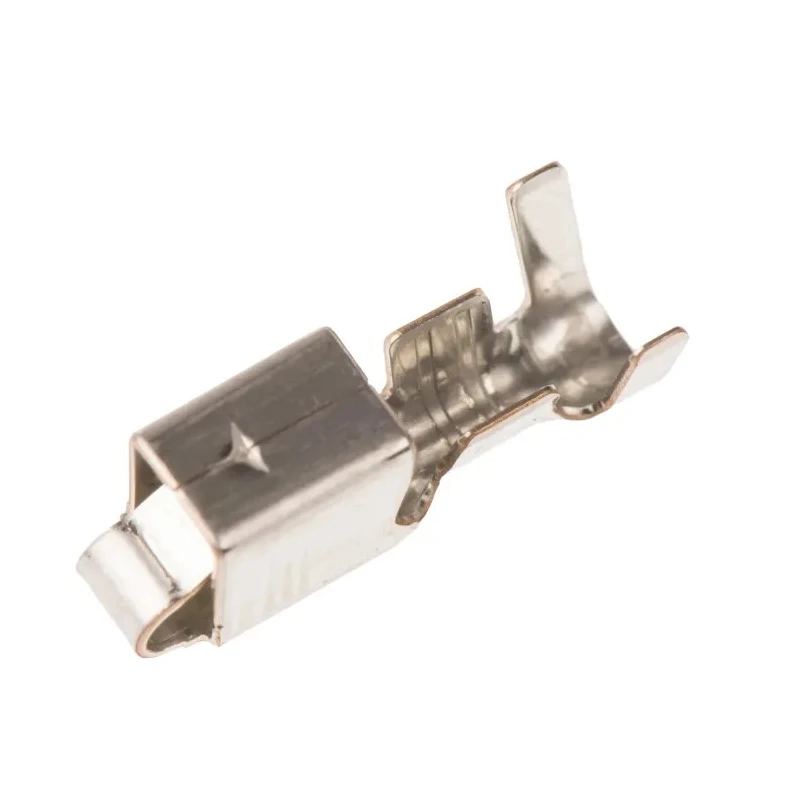

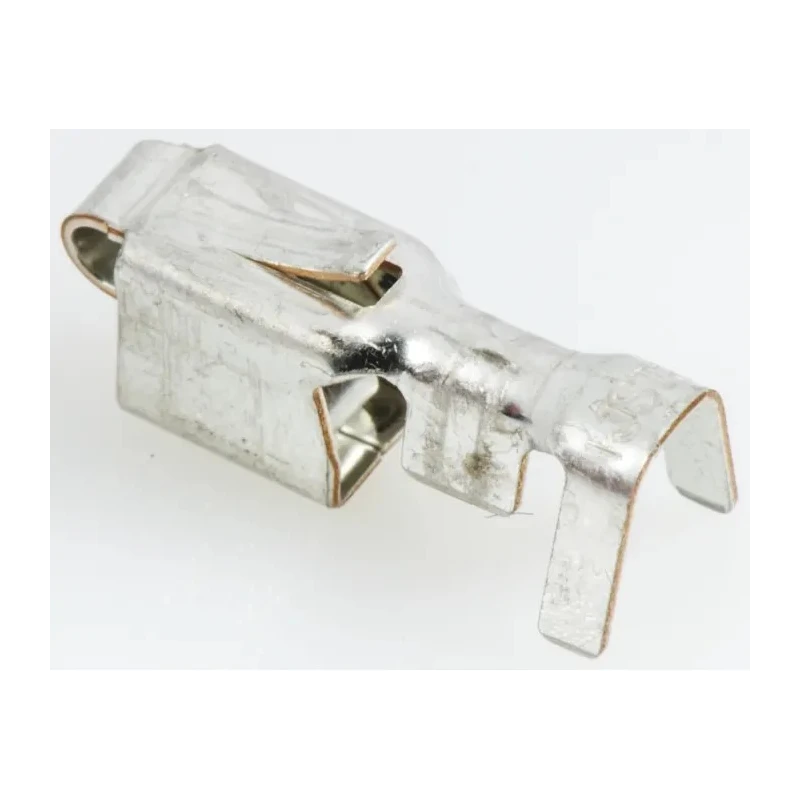

JST Female Crimp Terminal 22 AWG Min Crimp, 18 AWG Max, 10A Current, Tin Plated Phosphor Bronze BVH-21T-P1.1

Free Delivery in India | Lowest Global Shipping Charges

JST Female Crimp Terminal 22 AWG Min Crimp, 18 AWG Max, 10A Current, Tin Plated Phosphor Bronze BVH-21T-P1.1



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Korea
Brand	JST
Current	10A
Model	BVH-21T-P1.1
Gender	Female
Contact Material	Phosphor Bronze
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	NV, VB and VH Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	0.83mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed with phosphor bronze material ensuring durability and conductivity.
Contact plating features tin for corrosion resistance and reliable electrical connection.
Operates effectively in temperature ranges from -25°C to 85°C.
Compatible with NV, VB, and VH connector housings for versatile use.
Compact design with secure contact and mounting for efficient assembly.
Maximum contact resistance rated at 20 milliohms for excellent signal integrity.
Termination by crimping to facilitate rapid and secure wiring connections.
Manufactured in Korea, Republic Of, ensuring quality standards.

Product Description

The JST BVH-21T-P1.1 female crimp terminal is a high-quality connector designed for electronic applications requiring reliable wire to board connections. It supports a minimum wire size of 22 AWG and a maximum of 18 AWG, handling a current rating of 10 amps.

Constructed from phosphor bronze, this crimp terminal offers excellent mechanical strength and conductivity. The tin plating on the contact ensures resistance against corrosion, thereby maintaining consistent electrical performance over time. The terminal is suitable for use in temperature environments ranging from -25°C to +85°C, making it adaptable to various industrial and electronic conditions.

This crimp terminal is compatible with the NV, VB, and VH series connector housings from JST, known for their secure contact locking mechanism and compact footprint. Its design emphasizes a proven box contact that provides a secure electrical and mechanical connection, facilitating efficient and durable wire assemblies.

The compact size combined with the large electrical capacity makes it ideal for electronic, industrial manufacturing, and power supply applications. The maximum contact resistance of 20 milliohms guarantees minimal power loss and signal degradation, supporting stable circuit operations.

Constructed with phosphor bronze material ensuring durability and conductivity. Contact plating features tin for corrosion resistance and reliable electrical connection. Operates effectively in temperature ranges from -25°C to 85°C.

Compatible with NV, VB, and VH connector housings for versatile use. Compact design with secure contact and mounting for efficient assembly. Maximum contact resistance rated at 20 milliohms for excellent signal integrity.

Termination by crimping to facilitate rapid and secure wiring connections. Manufactured in Korea, Republic Of, ensuring quality standards.

This product is a critical component for applications in electrical equipment manufacturing, power distribution systems, and signal transmission wiring assemblies in industrial automation environments. Choosing the JST VH series ensures high performance and reliability for your connection needs.
