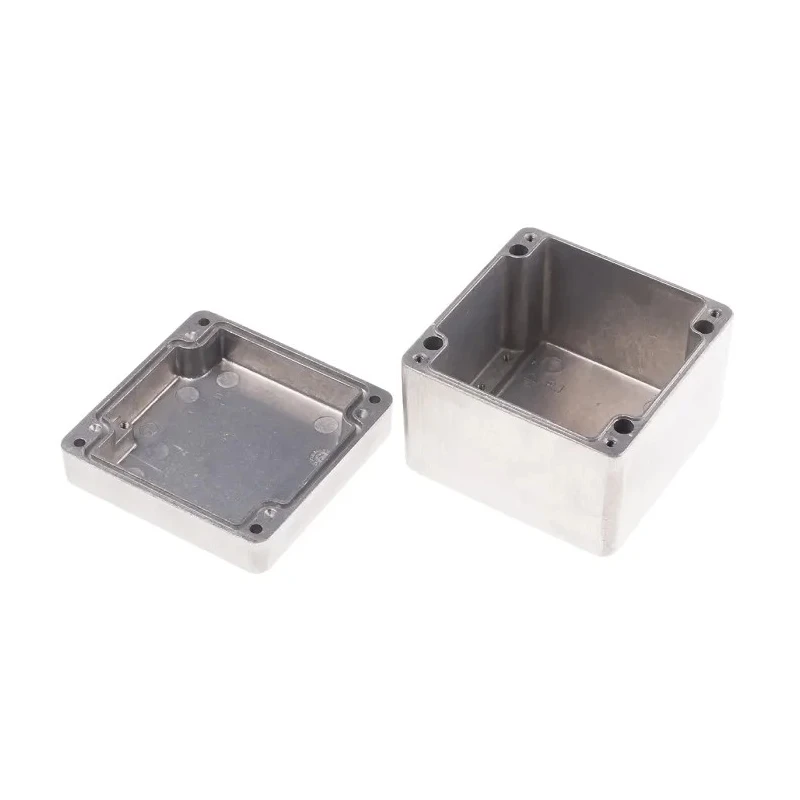

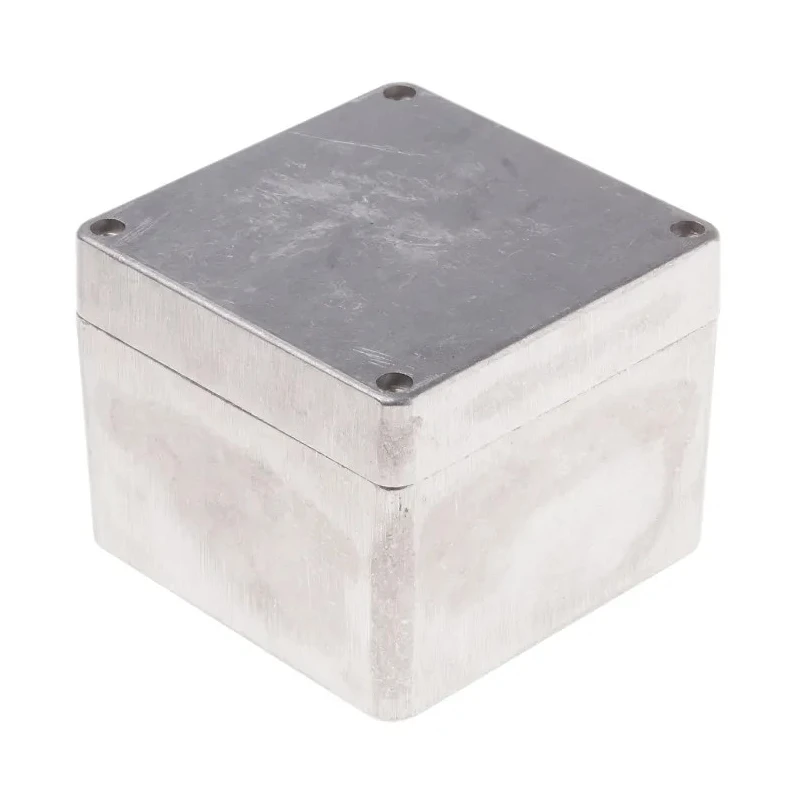

RS PRO Die Cast Aluminium Enclosure IP66 Rated Waterproof Silver Lid 81 mm x 100 mm x 100 mm IP66

RS PRO IP66 Die Cast Aluminium Enclosure with silver lid and base offers a reliable housing solution for electrical and electronic components in industrial and commercial applications. The enclosure measures 81 mm in height, 100 mm in width, and 100 mm in length, manufactured from premium die cast aluminium alloy ALSi12 ensuring durability and resistance to corrosion.

Designed to meet IP66 ingress protection standards, this enclosure prevents dust ingress and withstands powerful water jets, making it suitable for harsh and demanding environments, both indoors and outdoors. The Neoprene O-Ring continuous gasket combined with captive stainless steel screws guarantees a watertight seal and easy maintenance.

Wall thickness of 3 mm ensures mechanical strength while the inclusion of 4 copper plated earthing screws provides necessary grounding for electrical safety. The stable gasket seal temperature of -40 to +100°C enables use in a wide temperature range.

The enclosure offers a DIN rail mounting point simplifying the mounting of electrical components and accessories. Its unshielded design and silver colour suit applications requiring robust protection without electromagnetic shielding.

Typical uses include housing electrical switch elements, telecommunication systems, network junction boxes, mechanical automation controls, and other industrial instrumentation. RS PRO enclosures comply with multiple international standards such as DIN1725, IEC 60529, NEMA 4X & 6P, UL certifications, CE, and military vibration and shock tests ensuring high reliability.

Constructed from durable die cast aluminium ALSi12 alloy. IP66 rated enclosure with Neoprene O-Ring seal for waterproof protection. Includes silver-coloured lid with captive stainless steel lid screws. Wall thickness of 3 mm for mechanical strength and durability.

Suitable for harsh indoor and outdoor industrial environments. Four copper plated earthing screws provide effective grounding. Operating temperature range from -40 to +100°C for gasket seal stability. DIN rail mounting feature for easy installation of components.

Applications include electrical and telecommunication enclosures, network junction boxes, automation controls. Compliant with DIN1725, IEC 60529, NEMA 4X & 6P, UL508A, CE, MIL-STD-810G, ASTM B117, IEC 62262, IK 60068-2-75 standards.

This RS PRO enclosure is a premium choice for engineers and technicians requiring robust and reliable protection for electrical assemblies in demanding conditions. Explore the full range of RS PRO Electrical Enclosures and accessories at EnvMart for your industrial needs.
