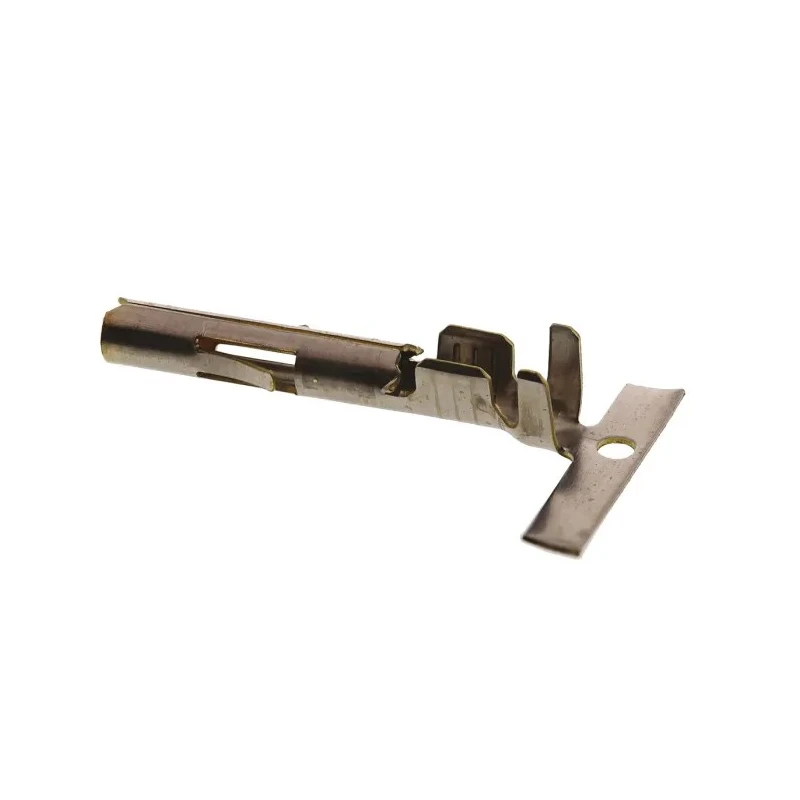

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal, 20 AWG Min Crimp, 14 AWG Max 350536-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Temperature range | -55 to +105 °C |
| Length | 22.23mm |
| Model | 350536-7 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000 MΩ |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Resistance | 3.5 mΩ |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 4mΩ |
| Mating Cycles | 50 |
| PCB Headers | 12 |
| Insulation Material UL94V-2 | Natural polyamide |
| Insulation Material UL94V-0 | White opaque Nylon 6.6 |
Key Features
- Compatible with Universal MATE-N-LOK connector housings for versatile use.
- Supports wire sizes from 20 AWG (0.5mm²) minimum to 14 AWG (2mm²) maximum.
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.
- Rated for 19A current with a maximum contact resistance of 4 milliohms.
- Operates within a temperature range of -55°C to 105°C suitable for demanding environments.
- Crimp termination type ensures secure wire connections.
- Durable insulation materials include natural polyamide and white opaque Nylon 6.6 rated UL94V-2 and UL94V-0.
- Designed for up to 50 mating cycles providing longevity in industrial and commercial equipment.
Product Description
TE Connectivity 350536-7 Universal MATE-N-LOK Series Female Crimp Terminal is a precision-engineered connector contact designed for secure and reliable wire termination within Universal MATE-N-LOK connector housings. It supports a broad wire gauge range from 20 AWG (0.5mm²) to 14 AWG (2mm²), enabling compatibility across various wiring applications.
The contact is constructed from high-quality brass with gold plating, ensuring excellent electrical conductivity and resistance to corrosion under repeated mating cycles up to 50 times. It is rated for currents up to 19 amperes and maintains a low maximum contact resistance of 4 milliohms, critical for maintaining signal integrity and power efficiency.
This female crimp terminal operates effectively across a wide temperature range from -55°C to 105°C, making it suitable for demanding industrial, commercial, and consumer environments. The termination type is crimp, ensuring a secure mechanical and electrical connection.
The contact length of 22.23 mm allows stable engagement within connector assemblies. The insulation materials used include natural polyamide (UL94V-2) and white opaque Nylon 6.6 (UL94V-0), providing electrical insulation and durability.
This connector contact is ideal for applications in consumer electronics, commercial HVAC systems, power supplies, portable electronic devices, and lighting installations. It offers designers a robust solution for efficient and reliable PCB wiring and electrical interconnection.
Compatible with Universal MATE-N-LOK connector housing system. Gold-plated brass contacts provide corrosion resistance. Wide temperature and current ratings support diverse applications. Durable insulation materials meet UL94 standards.
Suitable for industrial, commercial, and consumer electronics applications. Explore the full range of TE Connectivity products at EnvMart for high-quality connectors and electronic components designed to meet rigorous industry standards.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 19A, allowing it to handle significant electrical loads in various applications.
This terminal supports wire sizes from 20 AWG (0.5mm²) minimum to 14 AWG (2mm²) maximum, providing versatility for different wiring needs.
The maximum contact resistance is 4 milliohms, which is crucial for maintaining efficient electrical connections.
The contact is made of brass with gold plating, while the insulation materials include natural polyamide and white opaque Nylon 6.6, both rated for UL94 standards.
It operates effectively within a temperature range of -55°C to 105°C, making it suitable for demanding environments.
This model is designed for up to 50 mating cycles, ensuring longevity in applications where frequent connections are necessary.
It utilizes a crimp termination type, which ensures a secure mechanical and electrical connection to the wire.
The contact length of this terminal is 22.23 mm, allowing for stable engagement within connector assemblies.
Yes, it is ideal for PCB wiring and electrical interconnection, making it suitable for various electronic applications.
The insulation resistance is rated at 1000 MΩ, which helps ensure effective electrical isolation.
It is specifically designed for use with Universal MATE-N-LOK connector housings, providing versatility in wiring configurations.
The country of origin for this terminal is India, indicating its manufacturing location.
