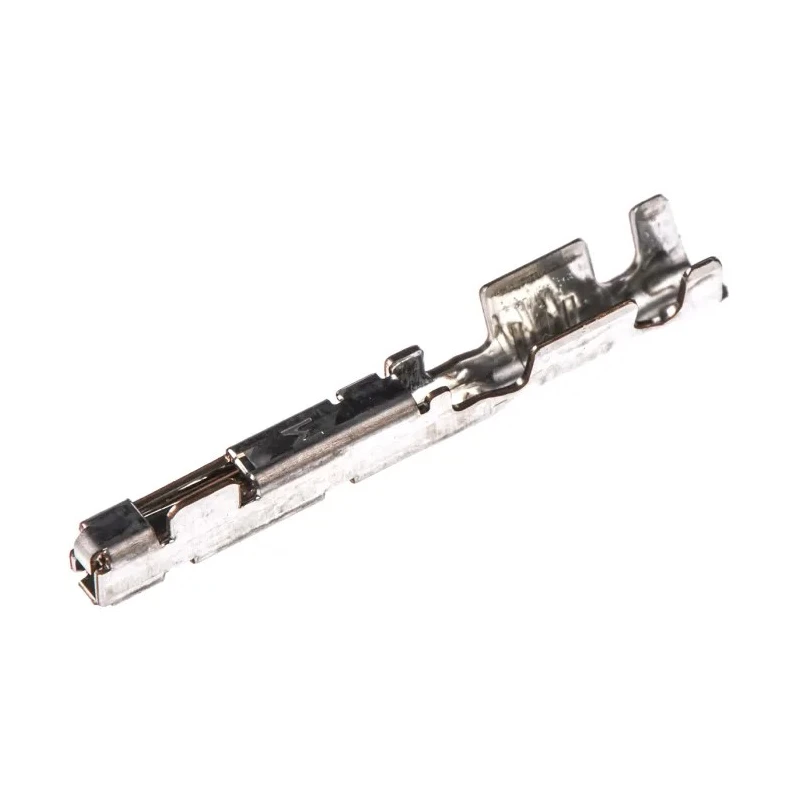

JAE MX34 Series Female Crimp Terminal 20 AWG Min, 18 AWG Max, Tin Plated High Conductive Copper Alloy

JAE MX34 Series Female Crimp Terminal M34S75C4F2 is engineered for automotive and industrial applications requiring a reliable and compact wire-to-board connection. This crimp terminal is designed for use with MX34 connector housings, featuring a tin plated high conductive copper alloy contact material to ensure excellent electrical conductivity and corrosion resistance.

The terminal supports a wire size range from 20 AWG (0.5 mm²) minimum up to 18 AWG (0.75 mm²) maximum, and is rated for a continuous current load of 3 amperes. It reliably operates across a broad temperature range from -40°C to 85°C, providing durability in harsh automotive environments.

The crimp termination type ensures secure mechanical and electrical contact. A maximum contact resistance of 5 milliohms guarantees minimal voltage drop and signal loss.

The connector design includes a double locking mechanism and preset-type retainer to prevent incomplete mate and ensure secure engagement. The contact locking spring features a protective bridge to resist external stress and twisting.

MX34 series connectors reduce mating and unmating forces to 80 Newtons or less, improving assembly efficiency and reliability in manufacturing and maintenance. This product is part of the MX34 automotive connector series widely used in vehicle electronic systems and industrial equipment wiring harnesses.

Supports minimum wire size of 20 AWG and maximum wire size of 18 AWG. Current rating of 3 amperes suitable for compact board-to-cable connections. Constructed with tin plating for corrosion resistance and enhanced conductivity.

Operates reliably in temperatures from -40°C to 85°C. Termination is by crimp method for durable electrical and mechanical connection. Contact resistance maximum of 5 milliohms ensures low signal loss. Equipped with double leaf spring and double locking mechanism to prevent incomplete contact insertion.

Designed for automotive use, meeting typical connector workability and durability requirements. Compatible with MX34 socket housings available in single-row or double-row configurations.

This JAE MX34 Series Female Crimp Terminal is ideal for industries including automotive manufacturing, electronics assembly, industrial automation, and any electrical system requiring robust and compact connector solutions.

Explore the Electronics Components category on EnvMart for a wide range of connectors and Crimp Contacts designed for diverse industrial and automotive applications.
