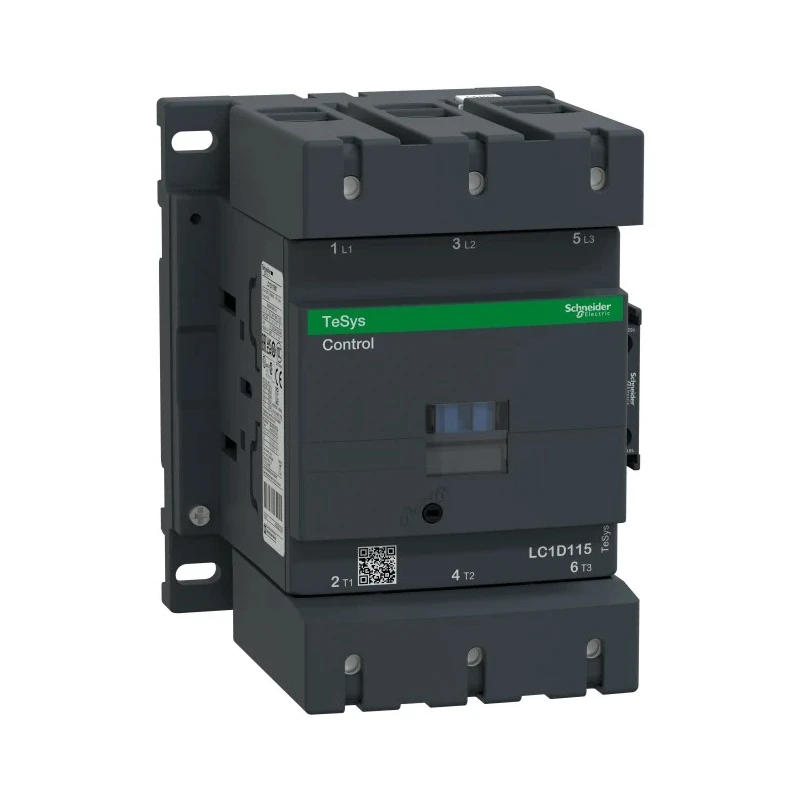

Schneider Electric Contactor 3-Pole, 110V AC Coil, 115A, 55kW Power Rating, 3 NO, 600V AC LC1D115G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D115G7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 55kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, IEC, EAC, UL, CCC, CSA |
| Contact Voltage | 600V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 120V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Schneider Electric TeSyS CA Contactor Timer for use with LC1DBrand | Schneider Electric |
Key Features
- Rated for 115A contact current and 55kW power at 120V AC coil voltage.
- Features 3 normally open contacts with 1 normally open and 1 normally closed auxiliary contacts.
- Mounts on DIN rails with screw terminal connections for secure installation.
- Operates reliably between -40°C and 70°C for industrial environments.
- Certified to IEC, UL, CSA, CCC, EAC standards; RoHS compliant.
- Suitable for motor control and resistive load applications.
- Includes built-in transient suppressor for coil protection.
Product Description
Schneider Electric LC1D115G7 is a high-performance contactor designed for industrial motor control and resistive load applications. It features a robust 3-pole configuration rated at 115A contact current and supports power loads up to 55kW at 400V. The contactor incorporates a 110V AC coil voltage with an operational coil control voltage of 120V 50/60Hz, providing reliable switching with a built-in transient suppressor module for enhanced coil protection.
This contactor includes 3 normally open main contacts and 2 auxiliary contacts configured as 1 normally open plus 1 normally closed, with the NC auxiliary contact mirror certified for enhanced safety.
The design supports installation on DIN rails or screw fixing with easy and secure screw clamp terminals for both power and control connections. It is engineered to operate steadily within a temperature range of -40°C up to 70°C, making it suitable for demanding industrial environments.
With standards certifications including IEC, UL, CSA, CCC, EAC, and is Green Premium RoHS/REACh compliant, the LC1D115G7 ensures global compatibility and environmental responsibility. Its compact form factor (158mm L x 120mm W x 136mm D) and lightweight construction facilitate integration in various automation systems.
This contactor is well-suited for manufacturing, HVAC, water treatment, and industrial automation use cases where reliable control of motors and resistive loads is critical. Accessories are available to extend functionality for specific applications.
Rated for heavy industrial motor control and load switching applications. Screw terminal connectors allow for secure and straightforward wiring. Compact size optimizes panel space in industrial systems. Wide temperature range enables use in harsh operational conditions.
Compliance with multiple international certifications guarantees quality and safety. Built-in coil transient suppressor enhances coil life and reliability. Auxiliary contacts facilitate control circuit integration and feedback.
Explore Schneider Electric Contactors and associated automation components in EnvMart’s comprehensive Electronics & Electricals category for advanced industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D115G7 contactor has a power rating of 55kW.
This model is rated for a contact current of 115A.
The coil voltage for this contactor is 110V AC, with an operational control circuit voltage of 120V.
It supports mounting on DIN rails and can also be fixed with screws.
The contactor operates reliably within a temperature range of -40°C to 70°C.
This contactor features a 3-pole configuration.
It includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
The contactor is certified to IEC, UL, CSA, CCC, EAC standards and is RoHS compliant.
The dimensions of this model are 158mm in length, 120mm in width, and 136mm in depth.
It is suitable for motor control and resistive load applications in industrial environments.
It features screw terminal connections for secure installation.
Yes, it includes a built-in transient suppressor for coil protection.
